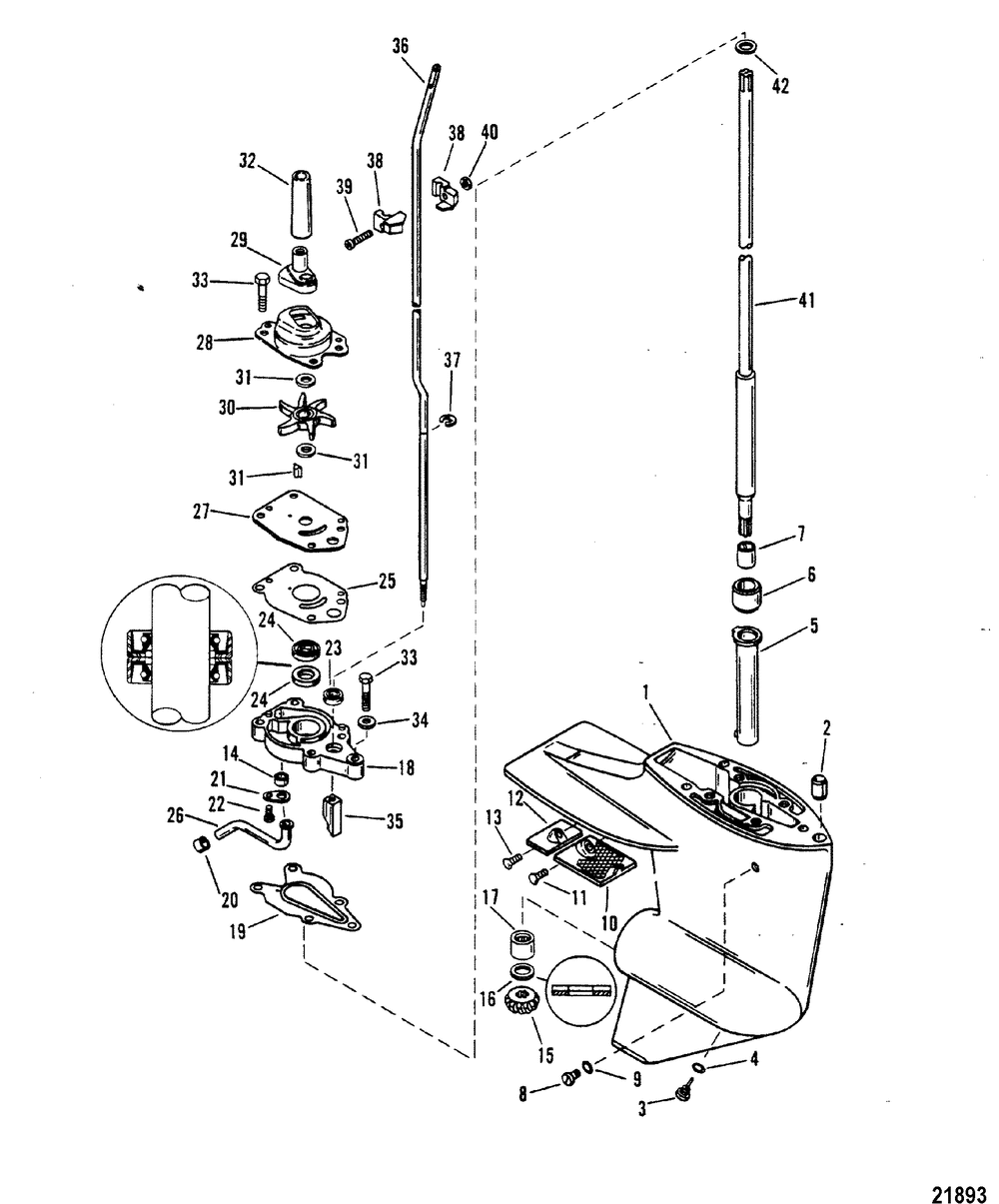

| № | Наименование | Примечание | Кол-во |
|---|---|---|---|
| - | GASKET SET | 1 | |
| - | REPAIR KIT-W/P | 1 | |
| - | ORD 1666-8833T15 | 1 | |
| - | GEAR HSG-SHORT-GR | 1 | |
| - | GEAR HSG-LONG-BLK | 1 | |
| - | GEAR HSG-SHORT-BK | 1 | |
| - | SEAL KIT | 1 | |
| 1 | ORD 1666-8833A17 (Gray) | 1 | |
| 1 | GC BASIC9.9/15 4S (Black) | 1 | |
| 2 | BUSHING | 1 | |
| 3 | SCREW KIT @2 (2 per pack) | 1 | |
| 4 | O RING | 1 | |
| 5 | SLEEVE KIT | 1 | |
| 6 | SLEEVE | 1 | |
| 7 | BUSHING | 1 | |
| 8 | SCREW-DRAIN @2 (2 per pack) | 1 | |
| 10 | SCREEN | 1 | |
| 11 | SCREW | 2 | |
| 12 | ANODE ASSY @2 (2 per pack) | 1 | |
| 14 | SEAL | 1 | |
| 15 | GEAR-PINION | 1 | |
| 16 | WASHER | 1 | |
| 17 | BEARING | 1 | |
| 18 | BASE ASSY-W/P | 1 | |
| 19 | GASKET | 1 | |
| 20 | SEAL @5 (5 per pack) | 1 | |
| 21 | RETAINER | 1 | |
| 22 | SCREW @5 (5 per pack) | 1 | |
| 23 | RING-QUAD | 1 | |
| 24 | SEAL | 2 | |
| 25 | GASKET | 1 | |
| 26 | TUBE KIT-WATER | 1 | |
| 27 | FACEPLATE | 1 | |
| 28 | COVER ASSY | 1 | |
| 29 | SEAL | 1 | |
| 30 | IMPELLER @2 (2 per pack) | 1 | |
| 31 | KEY KIT-IMPELLER | 1 | |
| 32 | GUIDE | 1 | |
| 33 | SCREW | 5 | |
| 34 | WASHER (10 per pack) | 1 | |
| 35 | CAM-SHIFT | 1 | |
| 36 | SHAFT-SHIFT-LONG | 1 | |
| 36 | SHAFT-SHIFT SHORT | 1 | |
| 37 | RING-RETAINING | 1 | |
| 38 | GUIDE | 2 | |
| 39 | SCREW | 1 | |
| 40 | NUT | 1 | |
| 41 | DRIVESHAFT-SHORT | 1 | |
| 41 | DRIVESHAFT-LONG | 1 | |
| 42 | WASHER-THRUST | 1 |
