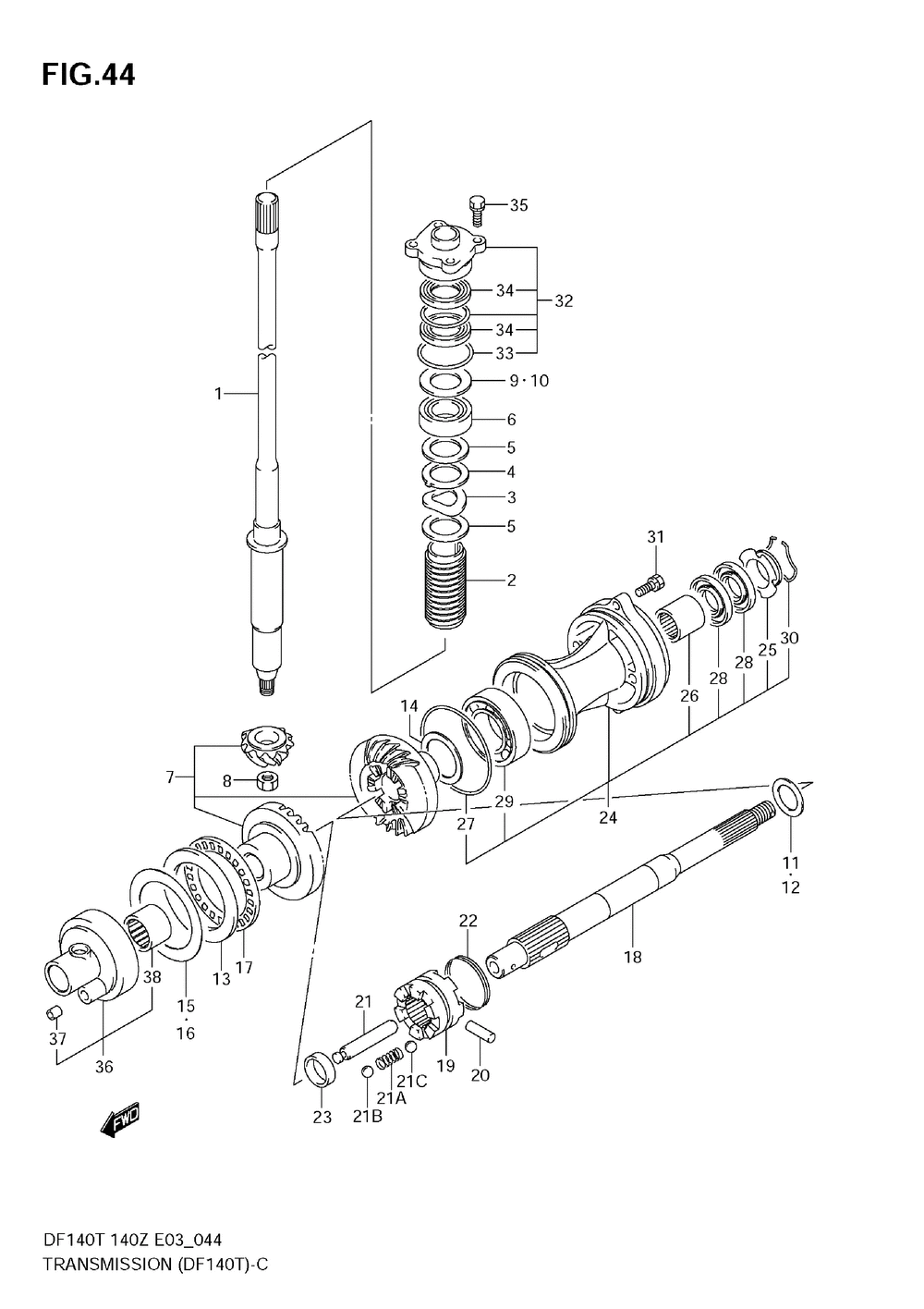

SUZUKI MARINE DF140T,Z DF140T,Z TRANSMISSION (DF140T)
TRANSMISSION (DF140T)
№ Наименование Примечание Кол-во
1-1 SHAFTDRIVE (L) 1
1-2 SHAFTDRIVE (L) (MODEL:04~06) 1
1-3 SHAFTDRIVE (L) (DF140T:682149~) 1
1-4 SHAFTDRIVE (UL 1
1-5 SHAFTDRIVE(X) (MODEL:04~06) 1
1-6 SHAFTDRIVE(X) (DF140Z:680234~) 1
2 COLLAR 1
3 WASHERWAVE 1
4 WASHER (MODEL:0203) 1
5 WASHER 2
6 BEARING(25X52X1 1
7-1 PINION/GEAR SET 1
7-2 PINION / GEAR S (DF140T:682149~) 1
7-3 PINION / GEAR S (MODEL:07~) 1
8-1 NUT (DF140Z:251009~) 1
8-2 NUT 1
9 SHIM SETDRIVE 1
10-1 SHIM 1
10-10 SHIM41X52X0.95 1
10-11 SHIM (40X52X1) 1
10-12 SHIM41X52X1.05 1
10-13 SHIM41X52X1.1 1
10-14 SHIM41X52X1.15 1
10-2 SHIM 1
10-3 SHIM41X52X0.6 1
10-4 SHIM41X52X0.65 1
10-5 SHIM41X52X0.7 1
10-6 SHIM41X52X0.75 1
10-7 SHIMT:0.8 1
10-8 SHIM41X52X0.85 1
10-9 SHIM41X52X0.9 1
11 SHIM SETREVERS 1
12-1 WASHER 1
12-2 WASHERT:1.7 1
12-3 WASHERT:1.9 1
12-4 WASHERT:2.1 1
12-5 WASHERT:2.3 1
12-6 WASHER 30X38X2. 1
12-7 WASHER 30X38X2. 1
12-8 WASHER 30X38X2. 1
12-9 WASHER 30X38X2. 1
13 WASHER (FWD GEAR) 1
14-1 SHIM (REV GEAR) 1
14-2 SHIM 1
14-3 SHIM 1
14-4 SHIM 1
14-5 SHIM 1
14-6 SHIM 1
14-7 SHIM 1
15 SHIM SETFORWAR 1
16-1 SHIM 1
16-2 SHIM 1
16-3 SHIM 1
16-4 SHIM 1
16-5 SHIM (FWD GEAR) 1
16-6 SHIMFORWARD GE 1
16-7 SHIMFORWARD GE 1
16-8 SHIMFORWARD GE 1
16-9 SHIMFORWARD GE 1
17 RC 70X95X4 BRG (FWD) 1
18-1 SHAFT COMPPROP 1
18-2 SHAFT COMPPROP (DF140T:682149~) 1
19-1 SHIFTERCLUTCH 1
19-2 SHIFTERCLUTCH (DF140Z:680234~) 1
20 PIN 1
21-1 PINCONNECTOR 1
21-2 PINCONNECTOR (DF140Z:680234~) 1
21A SPRINGDETENT 1
21B STEEL BALL 7/32 2
21C BALL 2
22-1 SPRING DOG 1
22-2 SPRING (MODEL:03~) 1
23 SPACERCLUTCH D 1
24 HOUSINGPROP SH 1
25 WASHEROIL SEAL 1
26 NEEDLE BRNG 30X 1
27 O RING 1
28 SEALOIL 2
29 B1 45X85X19 BEA 1
30 SET RING (SUS) 1
31 BOLT 8X30 2
32 HSG COMPDRIVE 1
33 O RING D:3.5 ID 1
34 OIL SEAL 24X40X 2
35 BOLT8X25 4
36 HOUSINGFWD GEA 1
37-1 PIN 2
38 RN 50X62X25 BRG 1
