| № | Наименование | Примечание | Кол-во |
|---|---|---|---|

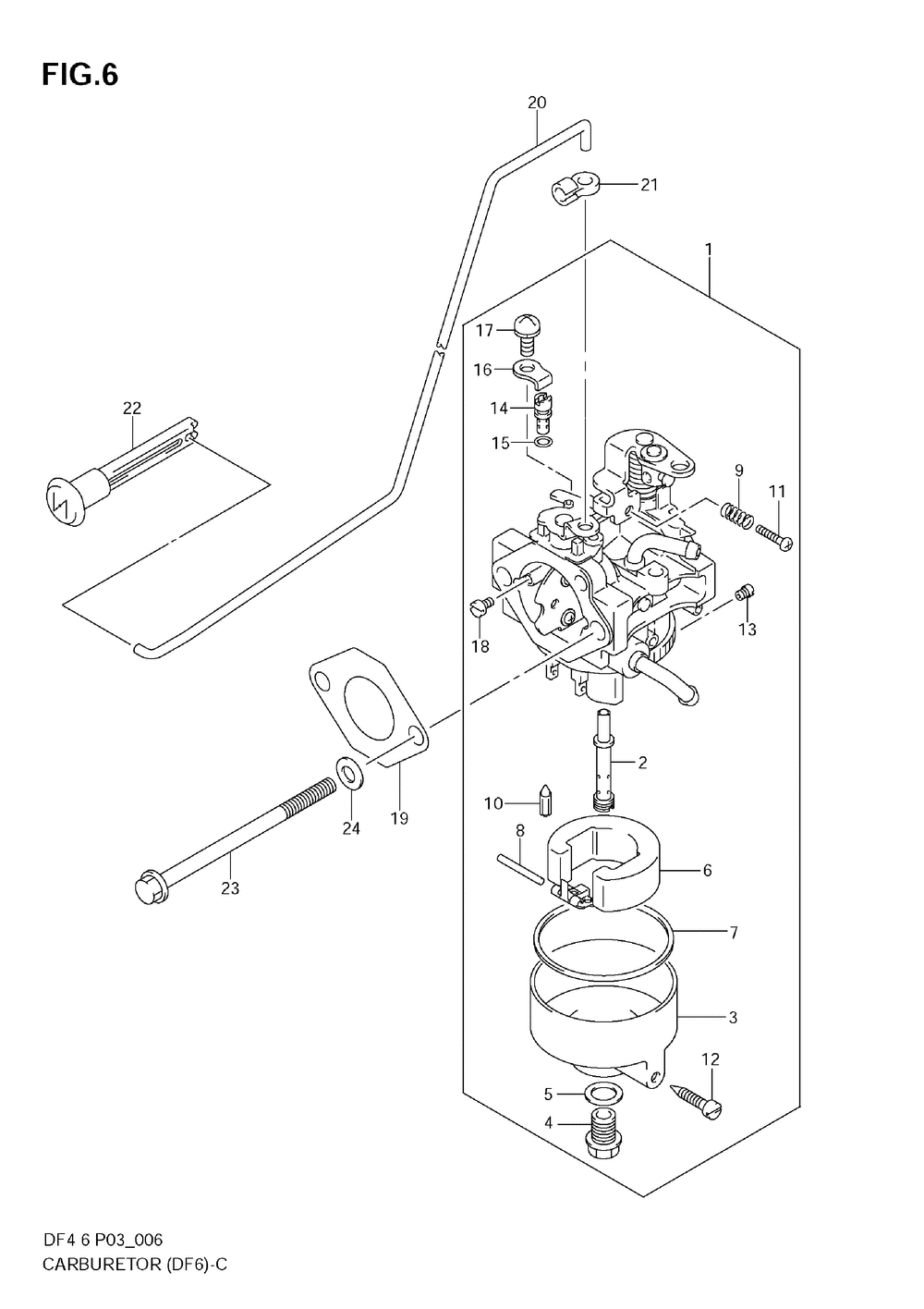

| 1 | CARBURETOR ASSY | 1 | |
| 2 | NOZZLEMAIN | 1 | |
| 3 | CHAMBER FLOAT | 1 | |
| 4 | PLUGDRAIN | 1 | |
| 5 | GASKET CHAMBER | 1 | |
| 6 | FLOAT | 1 | |
| 7 | GASKET | 1 | |
| 8 | PIN CARBURETOR | 1 | |
| 9 | THROTTLE SCR SP | 1 | |
| 10 | VALVENEEDLE | 1 | |
| 11 | SCREW | 1 | |
| 12 | ADJUSTER | 1 | |
| 13-1 | JETMAIN (85) | 1 | |
| 13-2 | (HIGH ALTITUDE SPEC.) | 1 | |
| 14 | JETPILOT (35) | 1 | |
| 15 | O RING | 1 | |
| 16 | Детать | 1 | |
| 17 | Детать | 1 | |
| 18-1 | (CA) JET MAIN (CALIFORNIA ONLYMLMR) | 1 | |
| 18-2 | JET PILOT AIR 0 | 1 | |
| 19 | GASKETCARBURET | 1 | |
| 20 | RODCHOKE | 1 | |
| 21 | CONNECTORCHOKE | 1 | |
| 22 | KNOBCHOKE | 1 | |
| 23 | BOLT | 2 | |
| 24 | WASHER (0010 per pack) | 2 |
