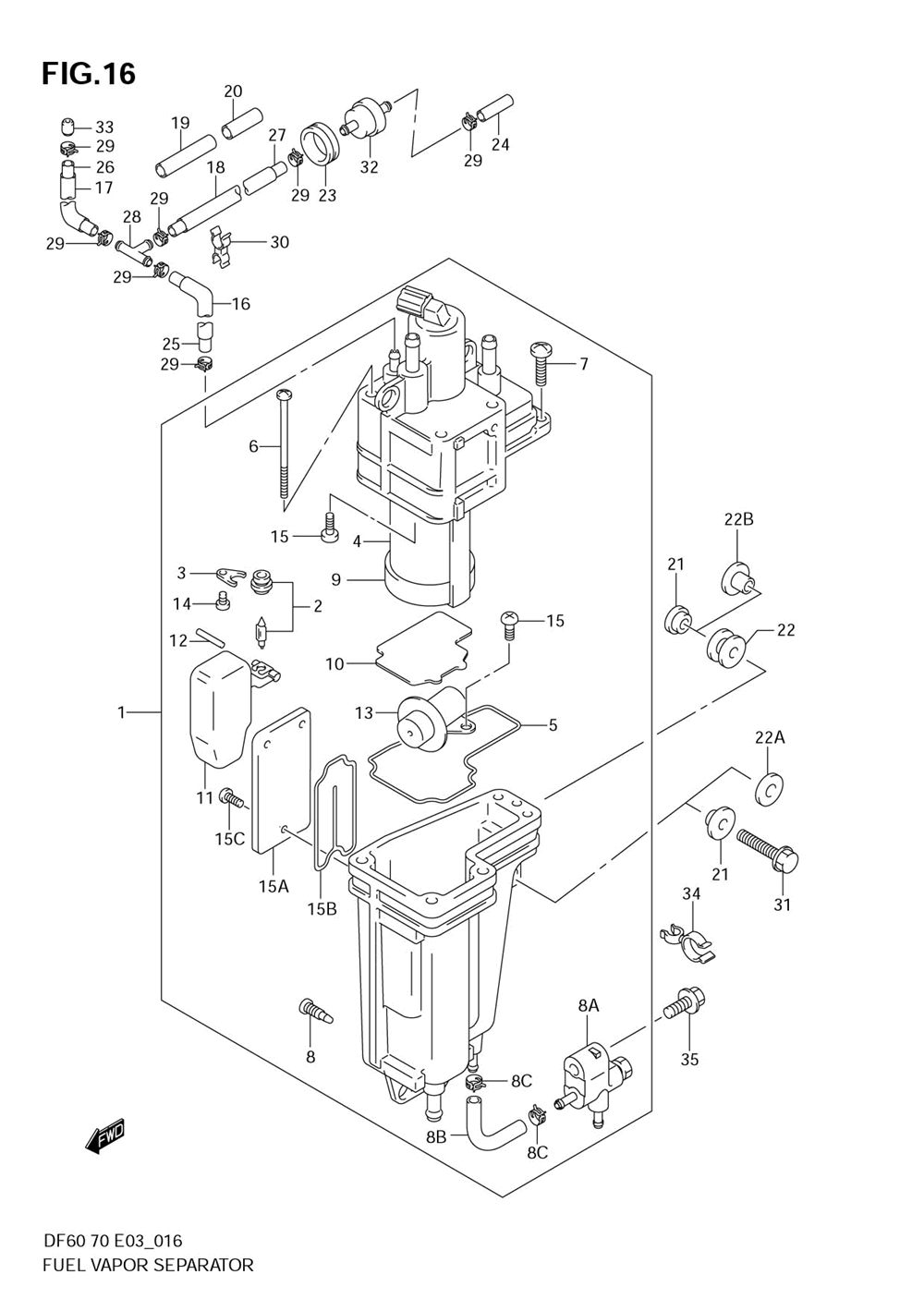

| № | Наименование | Примечание | Кол-во |
|---|---|---|---|
| 1-1 | SEPARATOR ASSY | 1 | |
| 1-2 | SEPARATOR ASSY (DF60:510774~DF70:512694~) | 1 | |
| 2 | VALVE NEEDLE | 1 | |
| 3 | PLATENEEDLE VA | 1 | |
| 4 | PUMP ASSYFUEL | 1 | |
| 5 | O-RING | 1 | |
| 6 | SCREW(L:70) | 3 | |
| 7 | SCREW(L:15) | 2 | |
| 8 | SCREWDRAIN | 1 | |
| 8A | (DF60:510774~DF70:512694~) | 1 | |
| 8B | HOSE DRAIN (DF60:510774~DF70:512694~) | 1 | |
| 8C | CLIP (DF60:510774~DF70:512694~) | 2 | |
| 9 | FILTERFUEL PUM | 1 | |
| 10 | PLATE REGULATO | 1 | |
| 11 | FLOAT | 1 | |
| 12 | PIN | 1 | |
| 13 | REGULATOR | 1 | |
| 14 | ВИНТ | 1 | |
| 15 | SCREW | 2 | |
| 15A | COVERVAPOR SEP | 1 | |
| 15B | O RINGVAPOR SE | 1 | |
| 15C | SCREW | 3 | |
| 16 | PROTECTOR(L:450 (L:450->390) | 1 | |
| 18 | Детать | 1 | |
| 21-1 | WASHER | 6 | |
| 22-1 | CUSHION | 3 | |
| 22A | WASHER 6.5X18X1 | 4 | |
| 22B | WASHER (LH) | 4 | |
| 23 | CUSHION | 1 | |
| 24 | HOSE5X8.2X600 (L:600->250) | 1 | |
| 27 | HOSE 5X8.2X2000 | 1 | |
| 28 | 3 WAY JOINT | 1 | |
| 29-1 | CLAMP | 7 | |
| 29-2 | CLIP | 7 | |
| 30 | Детать | 1 | |
| 31-1 | BOLT | 3 | |
| 31-3 | BOLTVAPOR SEPA | 4 | |
| 32 | FILTERFUEL | 1 | |
| 33-1 | JETEVAPORATION | 1 | |
| 33-2 | JETAIR100 | 1 | |
| 34 | (DF60:510774~DF70:512694~) | 1 | |
| 35 | BOLT | 1 |
