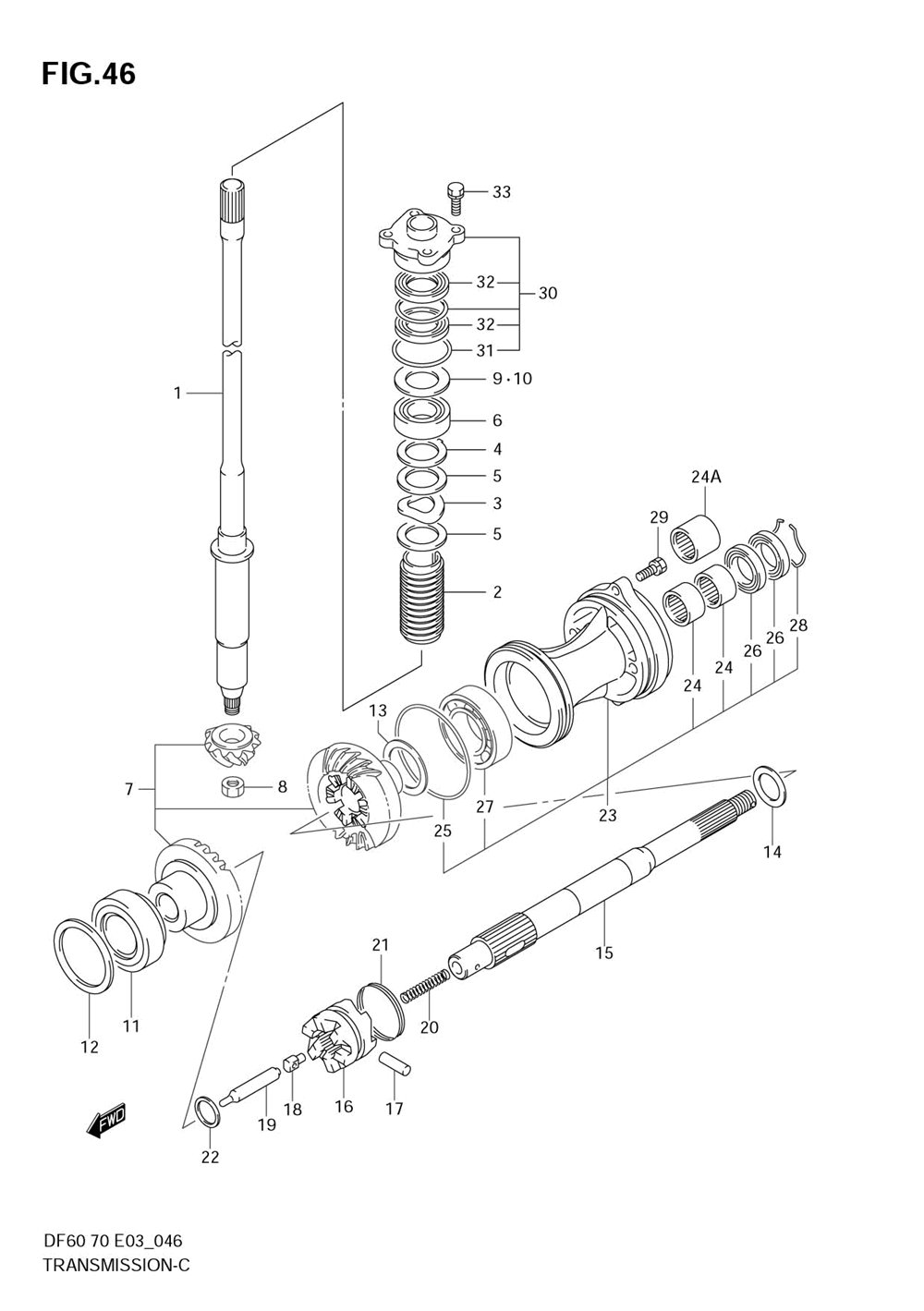

SUZUKI MARINE DF60 70 DF60 70 TRANSMISSION (MODEL:01~08)
TRANSMISSION (MODEL:01~08)
№ Наименование Примечание Кол-во
1-1 SHAFT DRIVE (L 1
1-2 SHAFT COMP DRI 1
1-3 SHAFT DRIVE (U (TYPE:XNOT FOR US MARKET) 1
1-4 SHAFT COMP DRI (TYPE:X MODEL:04~07NOT FOR US MARKET) 1
2 COLLAR 1
3 WASHERWAVE 1
4 WASHER (MODEL:0203) 1
5 WASHER 2
6 BEARING(25X52X1 1
7 PINION & GEAR S 1
8 NUT 1
9 SHIM SETDRIVE 1
10-1 SHIM 1
10-10 SHIM41X52X0.95 1
10-11 SHIM (40X52X1) 1
10-12 SHIM41X52X1.05 1
10-13 SHIM41X52X1.1 1
10-14 SHIM41X52X1.15 1
10-2 SHIM 1
10-3 SHIM41X52X0.6 1
10-4 SHIM41X52X0.65 1
10-5 SHIM41X52X0.7 1
10-6 SHIM41X52X0.75 1
10-7 SHIMT:0.8 1
10-8 SHIM41X52X0.85 1
10-9 SHIM41X52X0.9 1
11 BEARING 50X85X 1
12-1 SHIM(T:0.45) (REV GEAR) 1
12-10 SHIM(T:0.90) (REV GEAR) 1
12-2 SHIM(T:0.50) (REV GEAR) 1
12-3 SHIM(T:0.55) (REV GEAR) 1
12-4 SHIM(T:0.60) (REV GEAR) 1
12-5 SHIM(T:0.65) (REV GEAR) 1
12-6 SHIM(T:0.70) (REV GEAR) 1
12-7 SHIM(T:0.75) (REV GEAR) 1
12-8 SHIM(T:0.80) (REV GEAR) 1
12-9 SHIM(T:0.85) (REV GEAR) 1
13-1 SHIM (REV GEAR) 1
13-2 SHIM 1
13-3 SHIM 1
13-4 SHIM 1
13-5 SHIM 1
13-6 SHIM 1
13-7 SHIM 1
14-1 SHIMT:0.9 1
14-2 SHIMT:1.0 1
14-3 SHIMT:1.2 1
14-4 SHIMT:1.3 1
14-5 SHIMT:1.4 1
14-6 SHIMT:1.6 1
15 SHAFT ASSYPROP 1
16 SHIFTERCLUTCH 1
17 PIN 1
18 PIN 1
19 RODPUSH 1
20 SPRING 1
21-1 SPRING DOG 1
21-2 SPRING (MODEL:03~) 1
22 SHIM 1
23 HOUSINGPROP SH 1
24 RN 28X37X20 BRG 2
24A BEARINGPROP SH 1
25 O RING 1
26 OIL SEAL 2
27 B1 45X75X16 BEA 1
28 SET RING (SUS) 1
29 BOLT 8X30 2
30 HSG COMPDRIVE 1
31 O RING D:3.5 ID 1
32 OIL SEAL 2
33 BOLT8X25 4
