SUZUKI MARINE DF99 15 DF99 15 REMOTE CONTROL (TYPE:R)(MODEL:05~09)

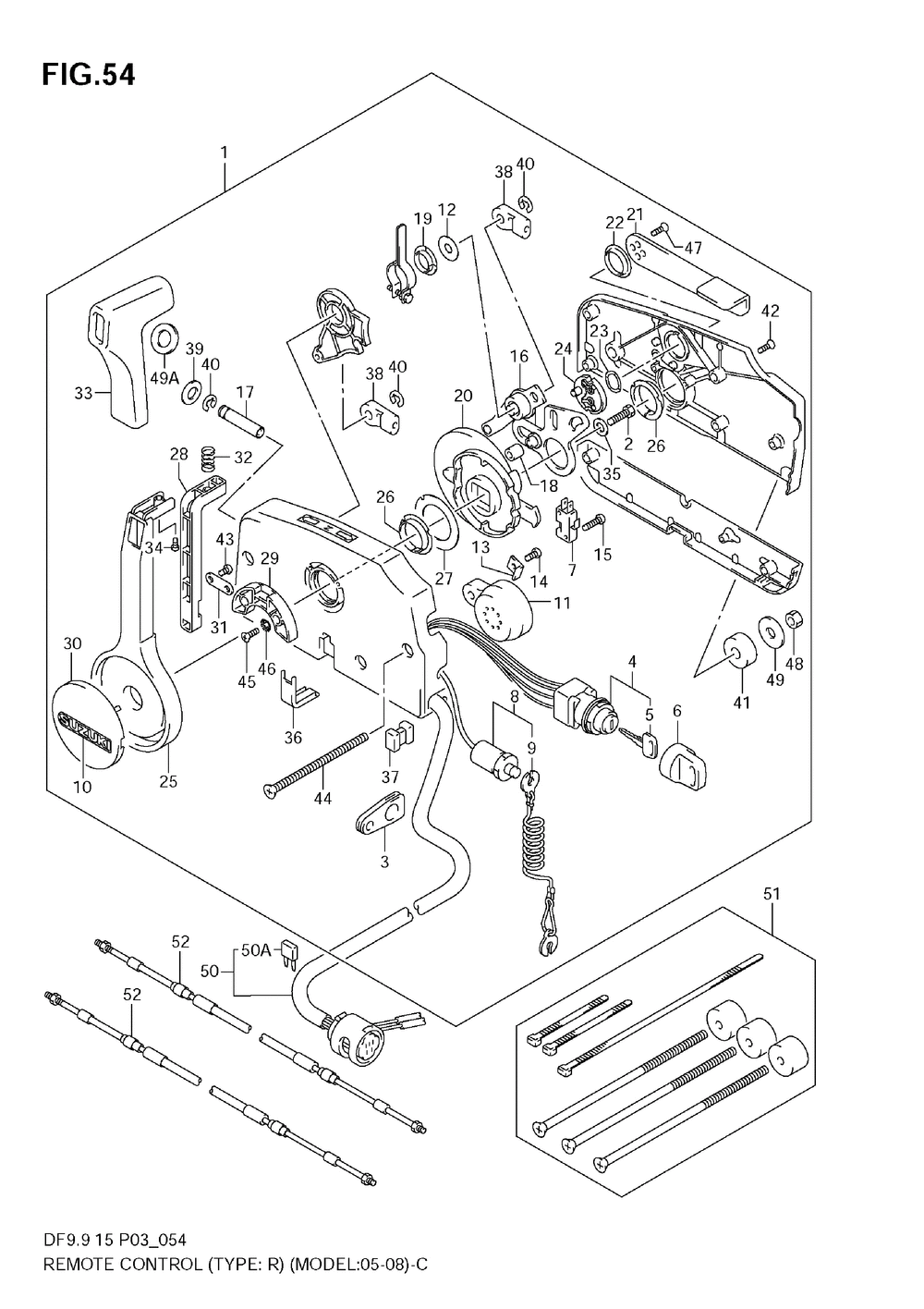

REMOTE CONTROL (TYPE:R)(MODEL:05~09)
№ Наименование Примечание Кол-во
1 REMOTE CONTROL 1
2 BOLT 1
3 GROMMETWIRE HA 1
4 SWITCH ASSYIGN 1
5-1 KEY (931) 1
5-10 KEY (940) 1
5-11 KEY (941) 1
5-12 KEY (942) 1
5-2 KEY (932) 1
5-3 KEY (933) 1
5-4 KEY (934) 1
5-5 KEY (935) 1
5-6 KEY (936) 1
5-7 KEY (937) 1
5-8 KEY (938) 1
5-9 KEY (939) 1
6 CAPKEY 1
7 SWITCH ASSYNEU 1
8 SWITCH ASSYEME 1
9 PLATE ASSYEMER 1
10 EMBLEM 1
11 BUZZER ASSYWAR 1
12 Детать 1
13 Детать 1
14 SCREW L:10 1
15 SCREWNEUTRAL S 2
16 PLATE ASSY 15C 1
17 KNOBBRAKE ADJU 1
18 Детать 1
19 BUSH 1
20 GEARDRIVE 1
21 Детать 1
22 BUSH 1
23 Детать 1
24 Детать 1
25 LEVERHANDLE 1
26 BUSH 2
27 Детать 1
28 ARMLOCK 1
29 HOLDER 1
30 CAPLEVER 1
31 BRACKET 1
32 SPRINGNEUTRAL 1
33 GRIP 1
34 SCREW REMO-CON 1
35 Детать 1
36 COVERWIRE 1
37 SPACER 1
38 END CABLE 2
39 Детать 1
40 E RING 3
41 SPACER 3
42 SCREWREAR COVE 5
43 SCREW REMO-CON 2
44 SCREW 3
45 SCREW 2
46 WASHER 2
47 SCREW 2
48 NUT 3
49 WASHER 3
49A SPACER 1
50 WIRE ASSYREMOT (W/ELECTRIC STARTER) 1
50A .FUSE (10A) 1
51 ATTACHMENT 1
52-2 Детать 2
52-3 Детать 2
52-4 Детать 2
52-5 CABLE ASSYREMO 2
52-6 Детать 2
