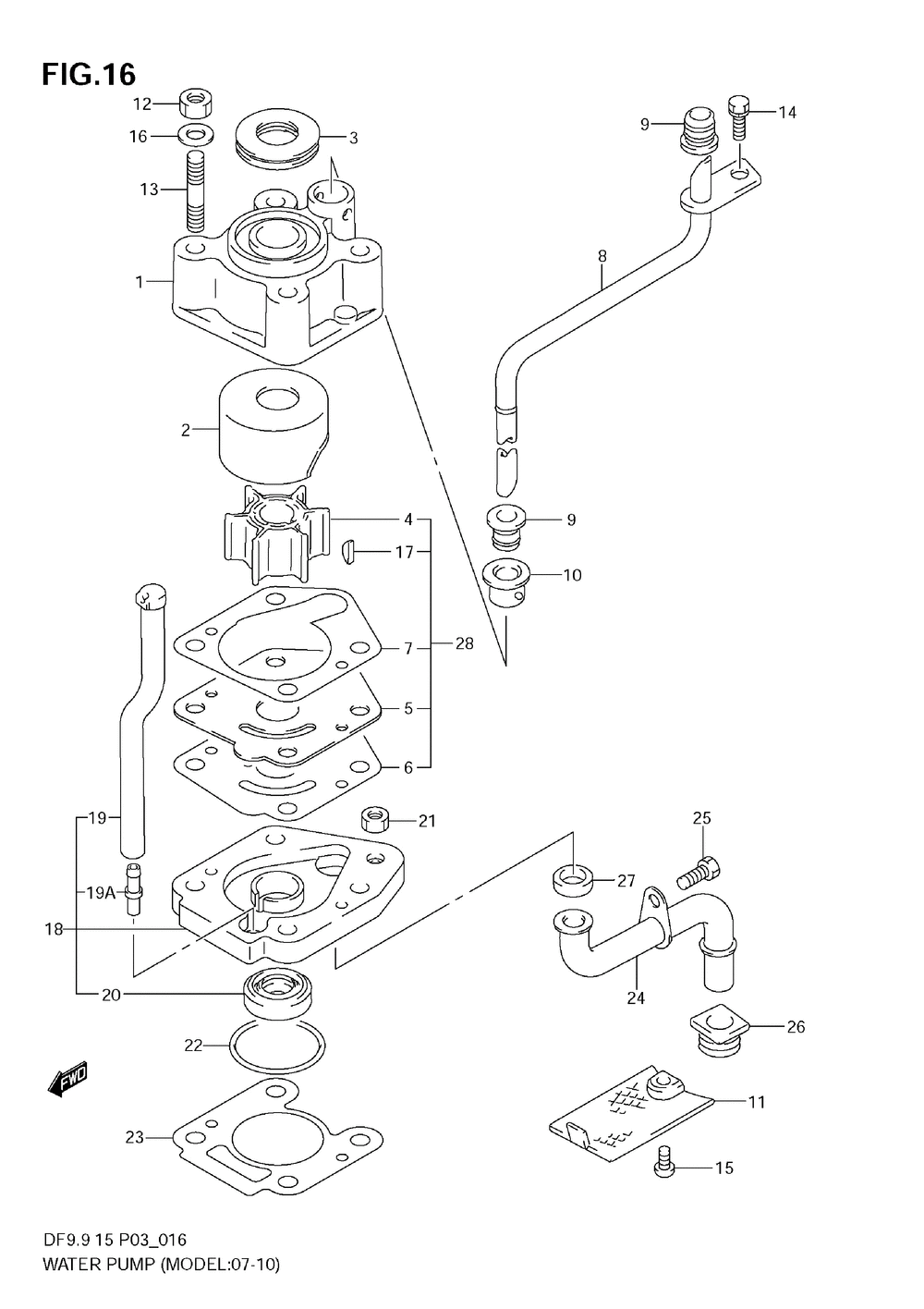

| № | Наименование | Примечание | Кол-во |
|---|---|---|---|
| 1 | WATER PUMP CASE | 1 | |
| 2 | SLEEVE | 1 | |
| 3 | GROMMETPUMP CA | 1 | |
| 4-1 | IMPELLERWATER | 1 | |
| 4-2 | IMPELLERWATER (DF9.9T/TH:110001~ DF15:110001~ ) | 1 | |
| 5 | PANEL CASE UNDE | 1 | |
| 6 | GASKETPUMP CAS | 1 | |
| 7 | GASKET | 1 | |
| 8-1 | TUBEWATER (S) | 1 | |
| 8-2 | TUBEWATER (L) | 1 | |
| 8-3 | TUBEWATER (L) (DF9.9T/TH) | 1 | |
| 8-4 | TUBEWATER (X) (DF9.9T/TH) | 1 | |
| 9 | GROMMETWATER T | 2 | |
| 10 | BUSH (<-17564-94J00) | 1 | |
| 11 | FILTERWATER | 1 | |
| 12 | NUT | 4 | |
| 13 | BOLT STUD | 4 | |
| 14 | BOLT6X15 | 1 | |
| 15 | SCREW 6X10 (SUS | 1 | |
| 16 | WASHER | 4 | |
| 17 | KEY | 1 | |
| 18 | HOUSINGWATER I | 1 | |
| 19 | DRAINWATER INL (<-17453-94J00) | 1 | |
| 19A | UNION WATER IN | 1 | |
| 20 | OIL SEAL | 1 | |
| 22 | ORING | 1 | |
| 23 | GASKETWATER IN | 1 | |
| 24-1 | TUBE COMPWATER | 1 | |
| 24-2 | TUBE COMPWATER (DF9.9T/TH) | 1 | |
| 25 | BOLT | 1 | |
| 26 | GROMWATER INLE | 1 | |
| 27 | GROMWATER INLE | 1 | |
| 28 | WP KIT DF9.9/15 (OPT) | 1 |
