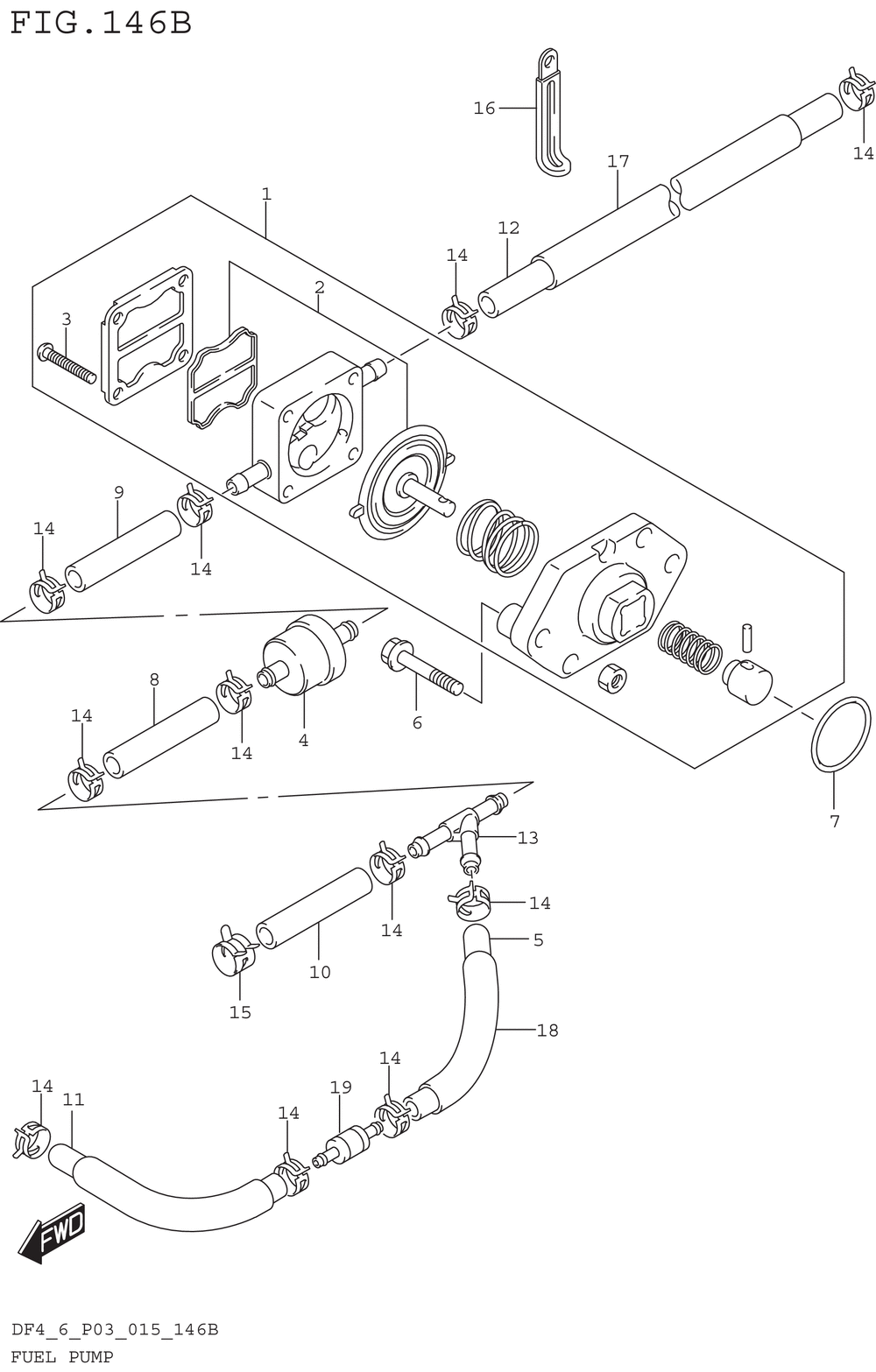

| № | Наименование | Примечание | Кол-во |
|---|---|---|---|
| 1 | PUMP ASSYFUEL | 1 | |
| 2 | DIAPHRAGM SET | 1 | |
| 3 | SCREW | 4 | |
| 4 | FILTERFUEL | 1 | |
| 5 | HOSE | 1 | |
| 6 | BOLT | 2 | |
| 7 | O-RING (D:2.0 I | 1 | |
| 8 | HOSE | 1 | |
| 10 | HOSEFUEL(CONN | 1 | |
| 11 | HOSEFUEL(TANK | 1 | |
| 12 | HOSE | 1 | |
| 13 | 3WAY | 1 | |
| 14 | CLIP | 11 | |
| 15 | CLIP | 1 | |
| 16 | CLAMP | 1 | |
| 17 | PROTECTORFUEL | 1 | |
| 19 | CHECK VALVEFUE | 1 |
