SUZUKI MARINE DF140 L2 DF140 L2 TRANSMISSION (DF140Z)

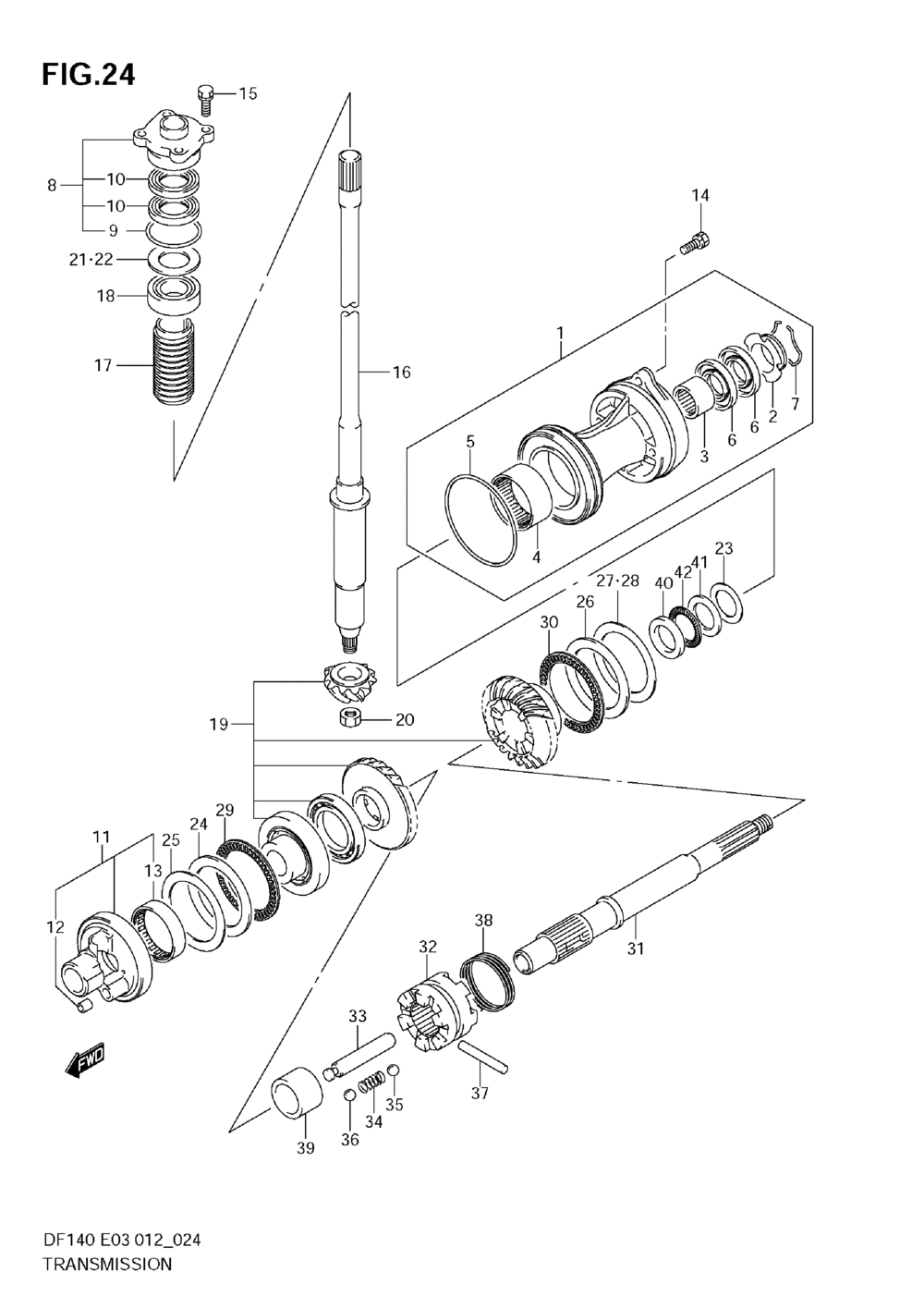

TRANSMISSION (DF140Z)
№ Наименование Примечание Кол-во
1 HOUSING COMPPR (DF140Z:421023~) 1
2 WASHEROIL SEAL 1
3 NEEDLE BRNG 30X 1
4 RN 50X62X25 BRG 1
5 O RING 1
6 SEALOIL 2
7 SET RING (SUS) 1
8 HSG COMPDRIVE 1
9 O RING D:3.5 ID 1
10 OIL SEAL 24X40X 2
11 HOUSINGREV GEA 1
12 PIN 1
13 BEEARING 45X52X 1
14 BOLT 8X30 2
15 BOLT8X25 4
16 SHAFTDRIVE(X) (DF140Z:680234~) 1
17 COLLAR 1
18 BEARING(25X52X1 1
19 PINION / GEAR S (MODEL:07~) 1
20 NUT 1
21 SHIM SETDRIVE 1
22-1 SHIM 1
22-10 SHIM41X52X0.95 1
22-11 SHIM (40X52X1) 1
22-12 SHIM41X52X1.05 1
22-13 SHIM41X52X1.1 1
22-14 SHIM41X52X1.15 1
22-2 SHIM 1
22-3 SHIM41X52X0.6 1
22-4 SHIM41X52X0.65 1
22-5 SHIM41X52X0.7 1
22-6 SHIM41X52X0.75 1
22-7 SHIMT:0.8 1
22-8 SHIM41X52X0.85 1
22-9 SHIM41X52X0.9 1
23-1 WASHER35X46X0. (PROP SHAFT REV) 1
23-2 WASHER35X46X0. (PROP SHAFT REV) 1
23-3 WASHER35X46X0. (PROP SHAFT REV) 1
23-4 WASHER35X46X0. (PROP SHAFT REV) 1
23-5 WASHER35X46X0. 1
23-6 WASHER35X46X1. (PROP SHAFT REV) 1
23-7 WASHER35X46X1. (PROP SHAFT REV) 1
23-8 WASHER35X46X1. (PROP SHAFT REV) 1
23-9 WASHER35X46X1. (PROP SHAFT REV) 1
24 WASHER60X85X3 (REV GEAR) 1
25-1 WASHER T 0.8 (REV GEAR) 1
25-2 WASHER T 0.9 1
25-3 WASHER 1
25-4 WASHER 1
25-5 WASHER 1
25-6 WASHER 1
25-7 WASHER 1
26 WASHERTHRUST F (FWD GEAR DF140Z:421023~) 1
27 SHIM SETFORWAR 1
28-1 SHIM (FWD GEAR) 1
28-2 SHIMFORWARD GE 1
28-3 SHIM 1
28-4 SHIMFORWARD GE 1
28-5 SHIM 1
28-6 SHIMFORWARD GE 1
28-7 SHIM 1
28-8 SHIMFORWARD GE 1
28-9 SHIM 1
29 RC 60X85X3 BRG (REV) 1
30 RC 70X95X4 BRG (FWD) 1
31 SHAFT COMPPROP (DF140Z:680234~) 1
32 SHIFTERCLUTCH (DF140Z:680234~) 1
33 PINCONNECTOR (DF140Z:680234~) 1
34 SPRINGDETENT 1
35 STEEL BALL 7/32 2
36 BALL 2
37 PIN 1
38 SPRING (MODEL:03~) 1
39 SPACERCLUTCH D 1
40 WASHER30X47X6. 1
41 WASHER 32X47X3 1
42 THRUST BEARING 1
