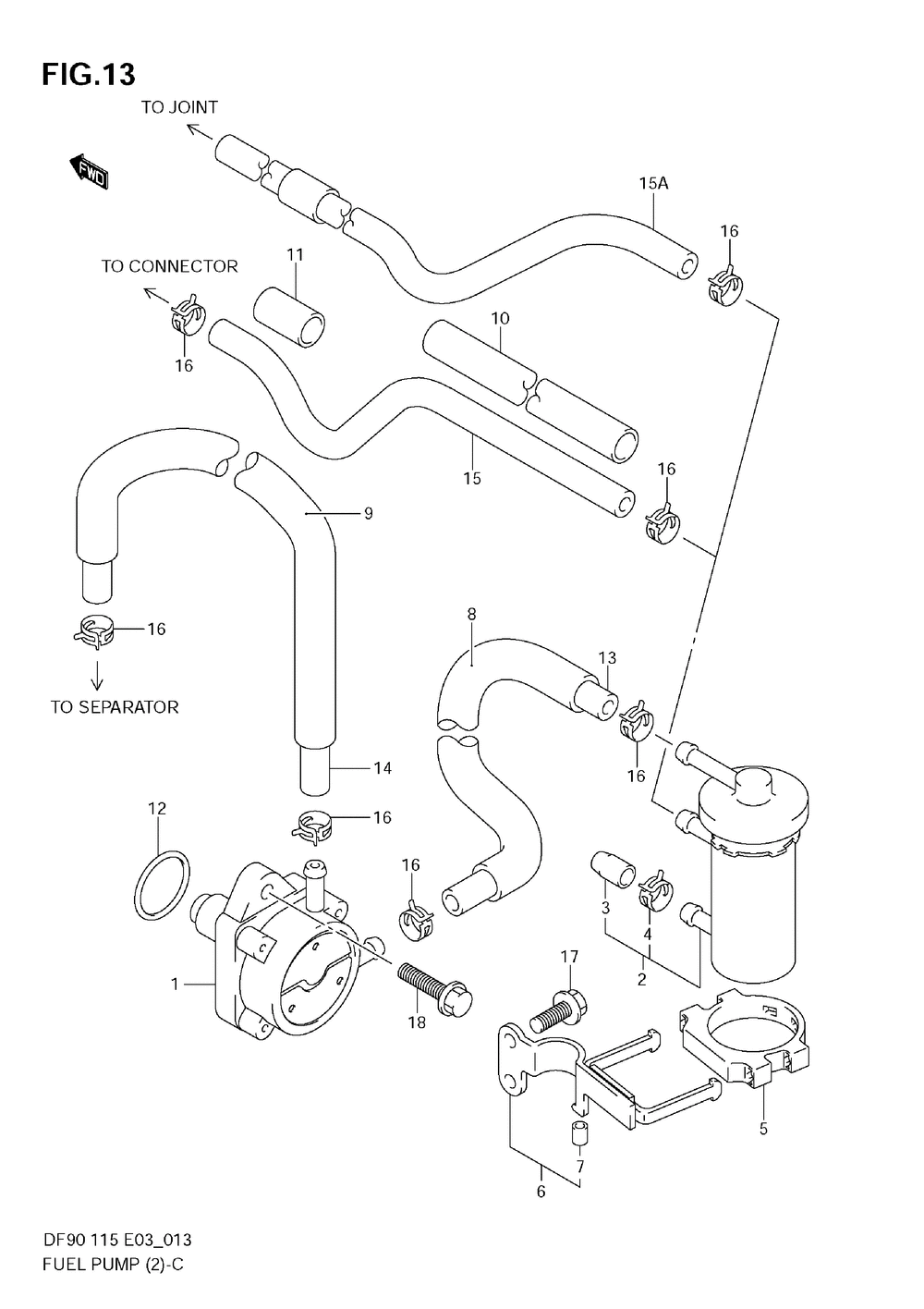

| № | Наименование | Примечание | Кол-во |
|---|---|---|---|
| 1 | PUMP ASSYFUEL (<-15100-90J00) | 1 | |
| 2 | FILTER COMPFUE | 1 | |
| 3 | CAPFUEL FILTER | 1 | |
| 4 | CLIP | 1 | |
| 5 | CLAMPFUEL FILT | 1 | |
| 6 | BRACKET COMPFU | 1 | |
| 7 | Детать | 1 | |
| 8 | PROTECTOR FUEL (L:610->230) | 1 | |
| 12 | O RING | 1 | |
| 13-1 | HOSEFUEL (FILT | 1 | |
| 14-1 | HOSE7X12X600 (L:600->140) | 1 | |
| 14-2 | HOSE 7X12X600 (L:600->510) | 1 | |
| 15 | HOSEFUEL(CONN | 1 | |
| 15A-1 | HOSEFUEL (JOIN (MODEL:09~10) | 1 | |
| 17 | BOLT | 2 | |
| 18 | BOLT | 2 |
