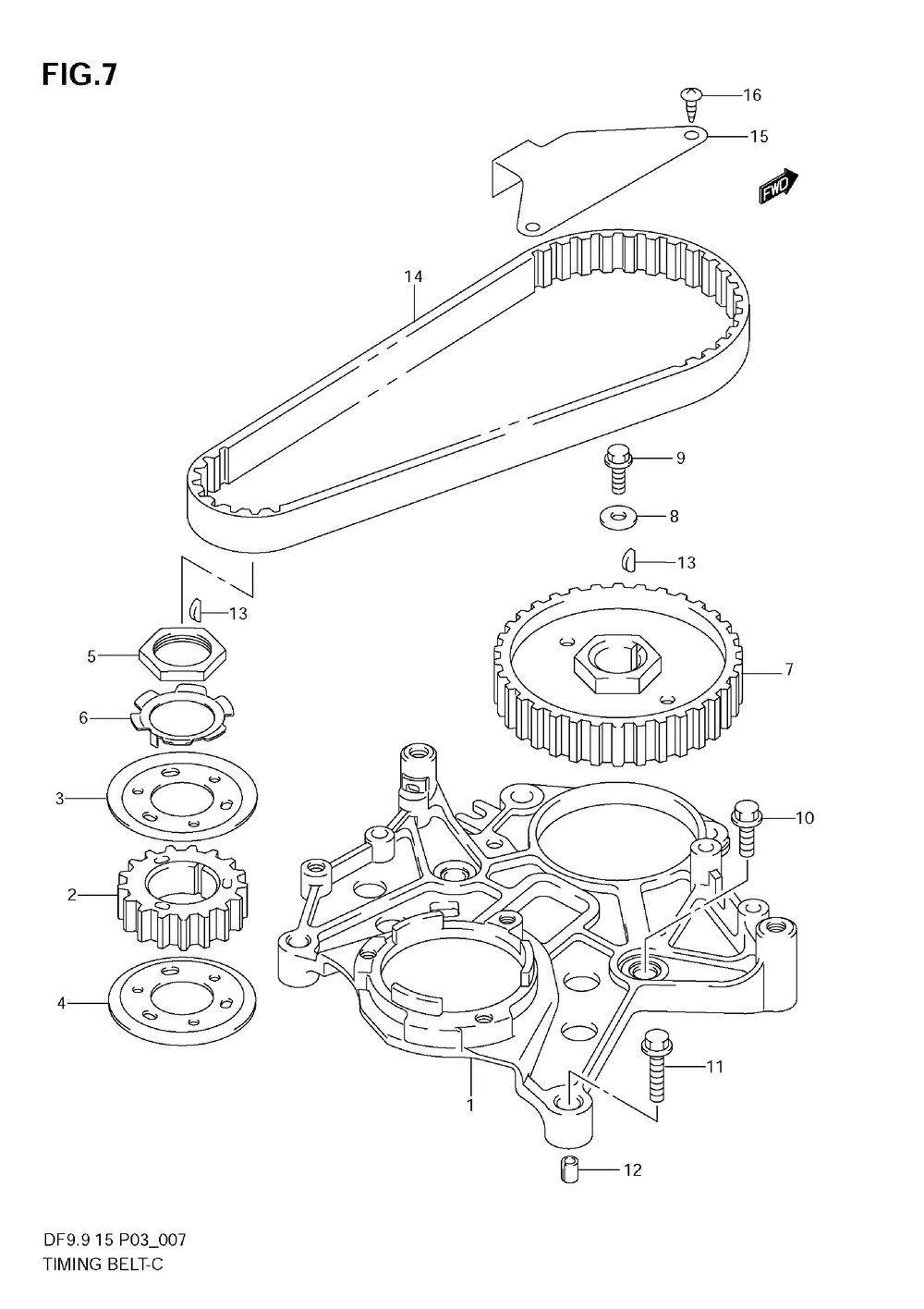

| № | Наименование | Примечание | Кол-во |
|---|---|---|---|
| 1-1 | BASESTATOR | 1 | |
| 2 | PULLEYCRANKSHA | 1 | |
| 3 | (<-12635-94J00) | 1 | |
| 4 | GUIDETIMING BE | 1 | |
| 5 | (<-12637-94J00) | 1 | |
| 6 | WASHERPULLEY N | 1 | |
| 7 | PULLEY CAMSHAFT | 1 | |
| 8 | WASHER6.5X24X4 | 1 | |
| 9-1 | BOLT | 1 | |
| 9-3 | BOLT6X18 | 1 | |
| 10 | BOLT | 2 | |
| 11 | BOLT | 2 | |
| 12 | PIN | 2 | |
| 13 | 3 MM WOODRUFF K | 2 | |
| 14 | BELTTIMING ( REFER TO FIG.7(B- 8) FOR MODEL:05~ ) | 1 | |
| 15 | (MODEL:0506) | 1 | |
| 16 | (MODEL:0506) | 2 |
