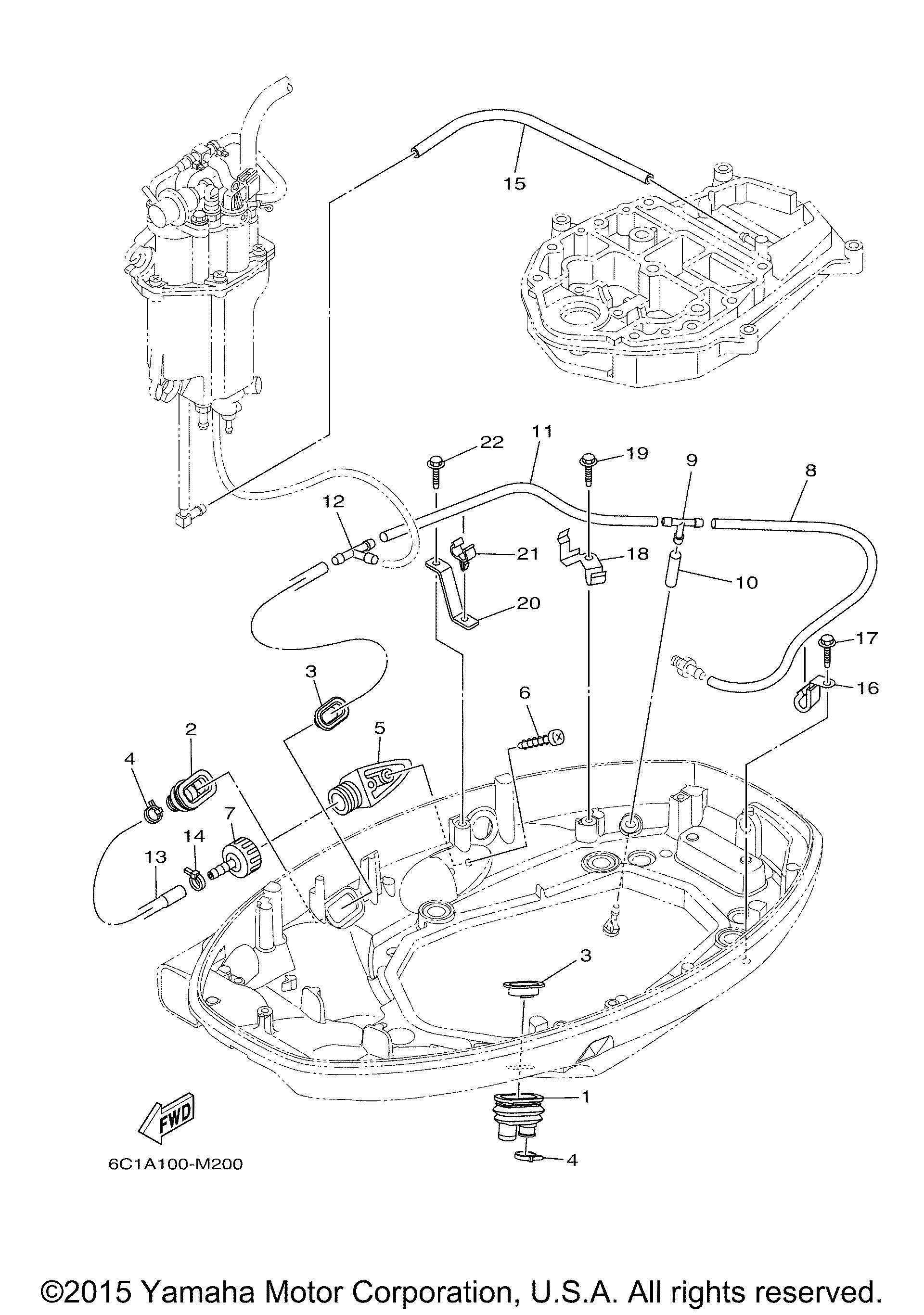

| № | Наименование | Примечание | Кол-во |
|---|---|---|---|
| 1 | GROMMET | 1 | |
| 2 | GROMMET | 1 | |
| 3 | SEAL CAP | 2 | |
| 4 | CLAMP | 2 | |
| 5 | ADAPTER | 1 | |
| 6 | SCREWTAPPING | 2 | |
| 7 | JOINT ASSY | 1 | |
| 8 | HOSE (L400) | 1 | |
| 9 | PIPEJOINT 4 | 1 | |
| 10 | HOSE (L30) | 1 | |
| 11 | HOSE (L280) | 1 | |
| 13 | PIPE 1 | 1 | |
| 15 | HOSE (L310) | 1 | |
| 16 | CLAMP | 1 | |
| 17 | BOLT | 1 | |
| 18 | CLAMP 2 | 1 | |
| 20 | CLAMP 1 | 1 | |
| 21 | CLAMP | 1 |
