Yamaha Z300TUR/Z300TXR/LZ300TXR/LZ300TUR 0406 Z300TUR/Z300TXR/LZ300TXR/LZ300TUR 0406 LOWER CASING DRIVE 1 Z300

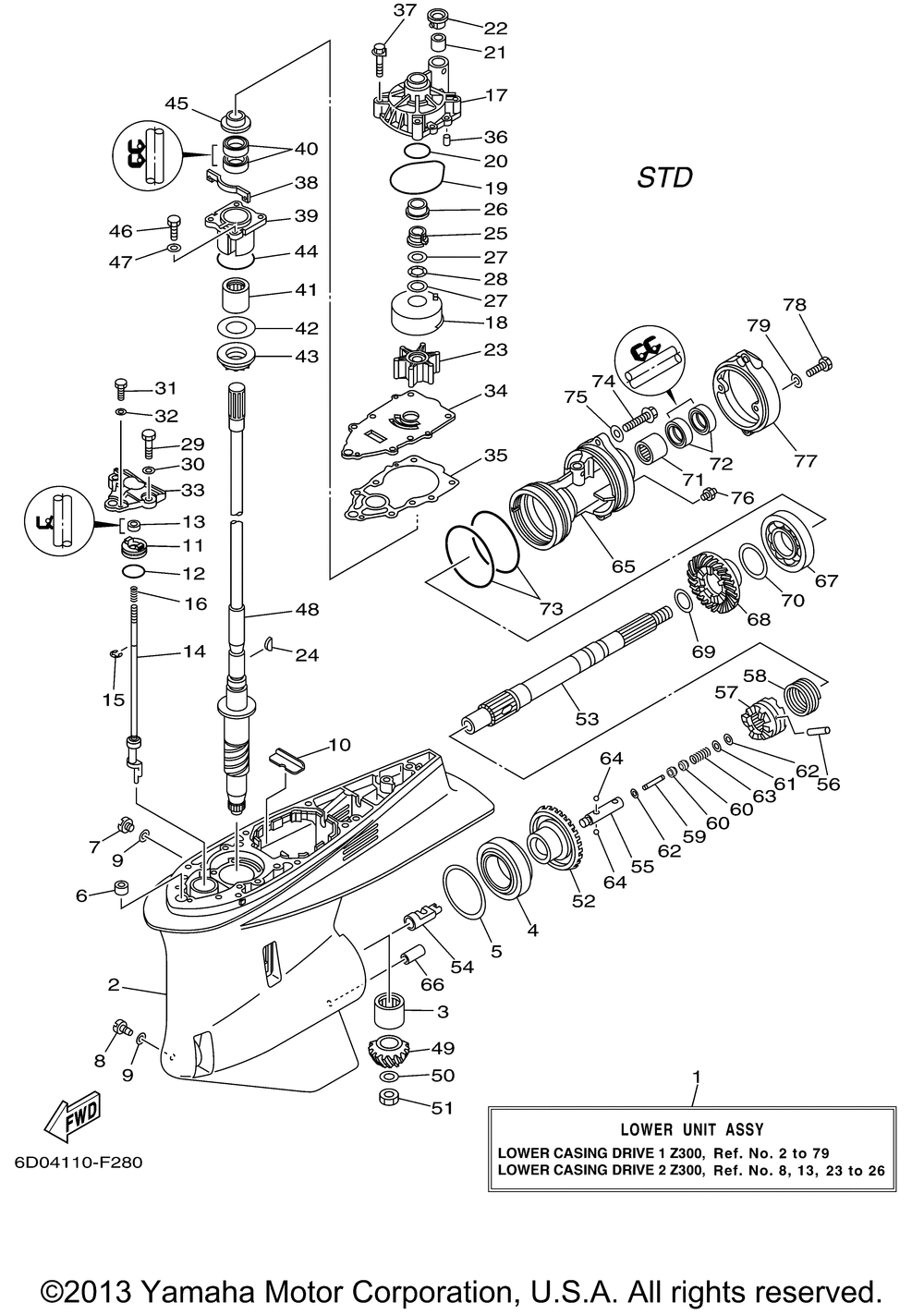

LOWER CASING DRIVE 1 Z300
№ Наименование Примечание Кол-во
1 LOWER UNIT ASSY U (30.2") RH 1
1 LOWER UNIT ASSY X (25.2") RH 1
2 CASING LOWER 1
3 BALL BEARING 1
4 BEARINGTAPRD tahos_32 1
5 SHIM (T:0.12MM) 1
5 SHIM (T:0.10MM) 1
5 SHIM (T:0.15MM) 1
5 SHIM (T:0.18MM) 1
5 SHIM (T:0.30MM) 1
5 SHIM (T:0.40MM) 1
5 SHIM (T:0.50MM) 1
6 DAMPER WATER SEAL 2 1
7 PLUG STRAIGHT SCREW 1
8 PLUG DRAIN 1
9 GASKET (USA) 2
10 GUIDE SEAL DAMPER 1
11 PLATE X(25.3') 1
12 O-RING 1
13 OIL SEALDD-TYPE 1
14 SHIFT CAM ASSY 1
15 CIRCLIP 1
16 SPRING COMPRESSION 1
17 HOUSINGWATER PUMP 1
18 INSERT CARTRIDGE 1
19 O-RING 1
20 O-RING (5 per pack) 1
21 WATER SEAL 1
22 COVERWTR.PUMP HSG 1
23 IMPELLER 1
24 KEYWOODRUFF 1
25 SPACER 1 1
26 COLLARDRIVE SHAFT 1
27 WASHERPLATE (5 per pack) 2
28 WASHERWAVE 1
29 BOLT 2
30 WASHER (5 per pack) 2
31 BOLT (GA1) (5 per pack) 1
32 WASHER (5 per pack) 1
33 COVER WATER PUMP HOUSING 1
34 . .OUTER PLATE CARTRIDGE 1
35 . .GASKET WATER PUMP 1
36 PINDOWEL (USA) (5 per pack) 2
37 BOLTWITH WASHER 4
38 PLATE SEAL 1
39 HOUSING BEARING 1
40 OIL SEALS-TYPE 2
41 BEARINGCYL.tahos_15 1
42 SHIM (T:0.18MM) 1
42 SHIM (T:0.30MM) 1
42 SHIM (T:0.40MM) 1
42 SHIM (T:0.50MM) 1
42 SHIM (T:0.15MM) 1
42 SHIM (T:0.12MM) 1
42 SHIM (T:0.10MM) 1
43 BEARING 1
44 O-RING 1
45 COVEROIL SEAL 1
46 BOLT 4
48 DRIVE SHAFT COMP. U (30.2") 1
48 DRIVE SHAFT COMP. X (25.2") 1
49 PINION (16T) UR VZ225 VZ250 1
50 WASHERPLATE 1
51 NUTHEXAGON 1
52 GEAR (28T) UR VZ225 VZ250 1
53 SHAFT PROPELLER 1
54 SHIFTER 1
55 SLIDE SHIFT 1
56 PIN CROSS 1
57 CLUTCH DOG 1
58 RING CROSS PIN 1
59 SHAFT FREE 1
60 PLUNGERSHIFT 2
61 WASHERPLATE 1
62 NUTSPRING (5 per pack) 2
63 SPRING COMPRESS. 1
64 BALL 1/4 (5 per pack) 2
65 HOUSING BEARING 1
66 PIN DOWEL 1
67 BEARING 1
68 GEAR (28T) UR VZ225 VZ250 1
69 WASHERPLATE 1
70 SHIM (T:0.40MM) (T:0.40MM) UR 1
70 SHIM (T:0.30MM) (T:0.30MM) UR 1
70 SHIM (T:0.18MM) (T:0.18MM) UR 1
70 SHIM (T:0.15MM) (T:0.15MM) UR 1
70 SHIM (T:0.10MM) (T:0.10MM) UR 1
70 SHIM (T:0.50MM) (T:0.50MM) UR 1
70 SHIM (T:0.12MM) (T:0.12MM) UR 1
71 BEARING 1
72 OIL SEAL 2
73 . .O-RING 2
74 BOLT FLANGE 2
75 WASHER PLATE 2
76 NIPPLE GREASE 1
77 CAP LOWER CASING 1
78 BOLT 2
