Yamaha F9.9ELR2D/F9.9MSH2D/F9.9MLH2D F9.9ELR2D/F9.9MSH2D/F9.9MLH2D LOWER CASING DRIVE 1

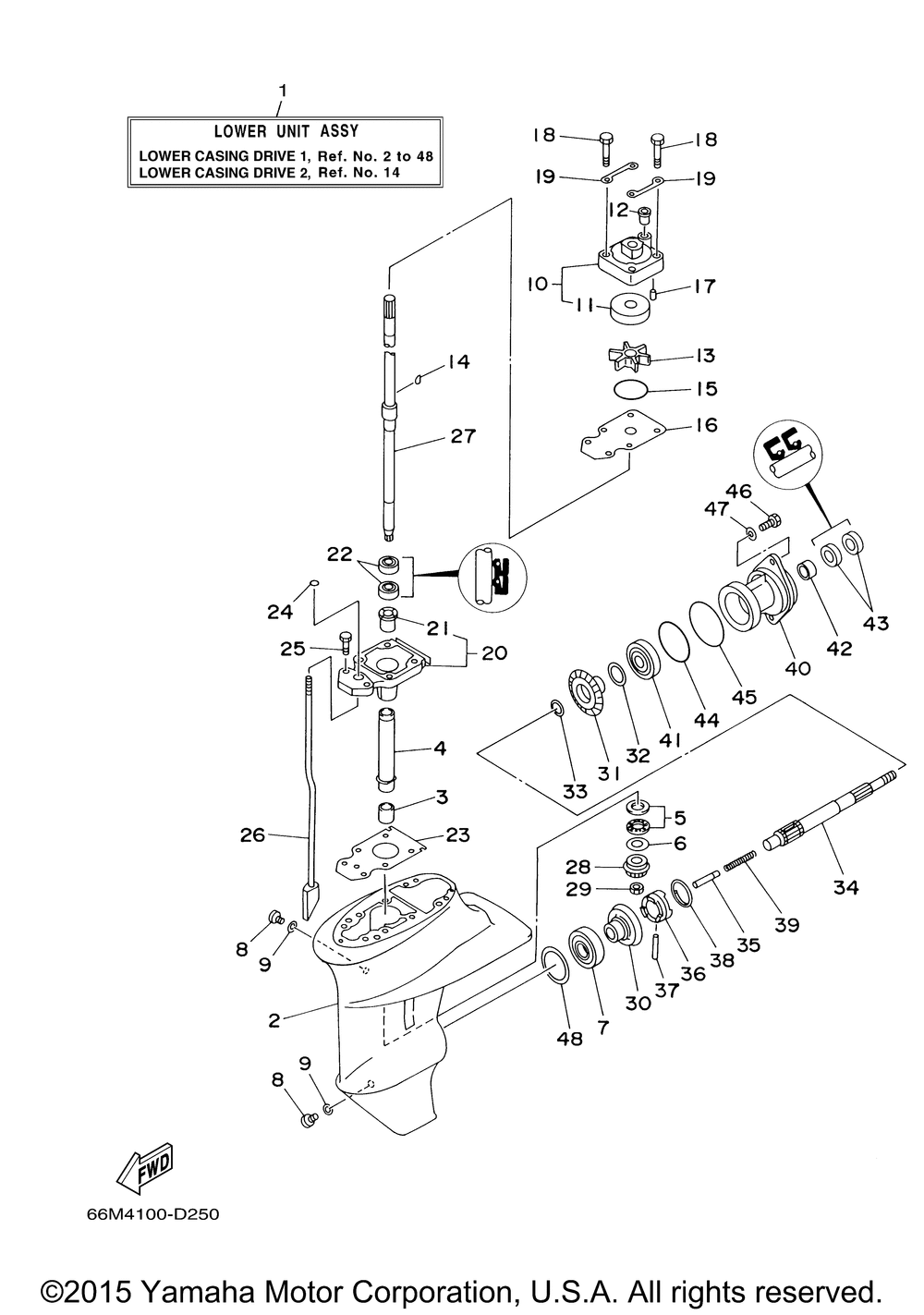

LOWER CASING DRIVE 1
№ Наименование Примечание Кол-во
1 LOWER UNIT ASSY UR S 1
1 LOWER UNIT ASSY L (22.3") 1
2 CASING LOWER L(22.4") 1
2 CASING LOWER UR S 1
3 BEARING 1
4 SLEEVEDRIVE SHFT 1
5 BEARING 1
6 SHIM (T:1.20MM) (T:1.20MM) UR 1
6 SHIM (T:1.13MM) (T:1.13MM) UR 1
7 BEARING 1
8 PLUG STRAIGHT SCREW 2
9 GASKET (USA) 2
10 WATER PUMP HOUSING COMP. 1
11 . .INSERT CARTRIDGE 1
12 WATER SEAL 1
13 . .IMPELLER 1
14 . .KEY WOODRUFF 1
15 . .O-RING 1
16 OUTER PLATECART. 1
17 .PIN DOWEL 2
18 BOLT 4
19 PLATE 2
20 HOUSING BEARING 1
21 . .BUSHING DRIVE SHAFT 1
22 OIL SEAL 2
23 PACKINGLOWER CASE 1
24 . .O-RING 1
25 BOLT 2
26 SHIFT CAM ASSY S (17.3") 1
26 SHIFT CAM ASSY L(22.4") 1
27 DRIVE SHAFT ASSY L (22.3") 1
27 DRIVE SHAFT ASSY S (17.3") 1
28 PINION (13T) 1
29 NUT 1
30 GEAR (27T) 1
31 GEAR 2 (27T) 1
32 SHIM (T:0.20MM) 1
32 Shim (T:0.30Mm) 1
32 SHIM (T:0.40MM) 1
32 SHIM (T:0.50MM) 1
32 SHIM (T:0.10MM) 1
33 WASHERPLATE 1
34 SHAFT PROPELLER 1
35 PLUNGER SHIFT 1
36 CLUTCHDOG 1
37 PIN STRAIGHT 1
38 RINGCROSS PIN 1
39 SPRING COMPRESSION 1
40 CAP LOWER CASING 1
41 BEARING 1
42 BEARING 1
43 . .OIL SEAL 2
44 O-RING 1
45 O-RING 1
46 BOLT HEXAGON 2
47 WASHER (5 per pack) 2
48 SHIM (T:0.50MM) (T:0.50MM) UR 1
48 SHIM (T:0.18MM) (T:0.18MM) UR 1
48 SHIM (T:0.15MM) (T:0.15MM) UR 1
48 SHIM (T:0.10MM) (T:0.10MM) UR 1
48 SHIM (T:0.30MM) (T:0.30MM) UR 1
48 SHIM (T:0.40MM) (T:0.40MM) UR 1
48 SHIM (T:0.12MM) (T:0.12MM) UR 1
