Yamaha LF250TURD/F250TURD/LF250TXRD/F250TXRD LF250TURD/F250TURD/LF250TXRD/F250TXRD LOWER CASING DRIVE 1

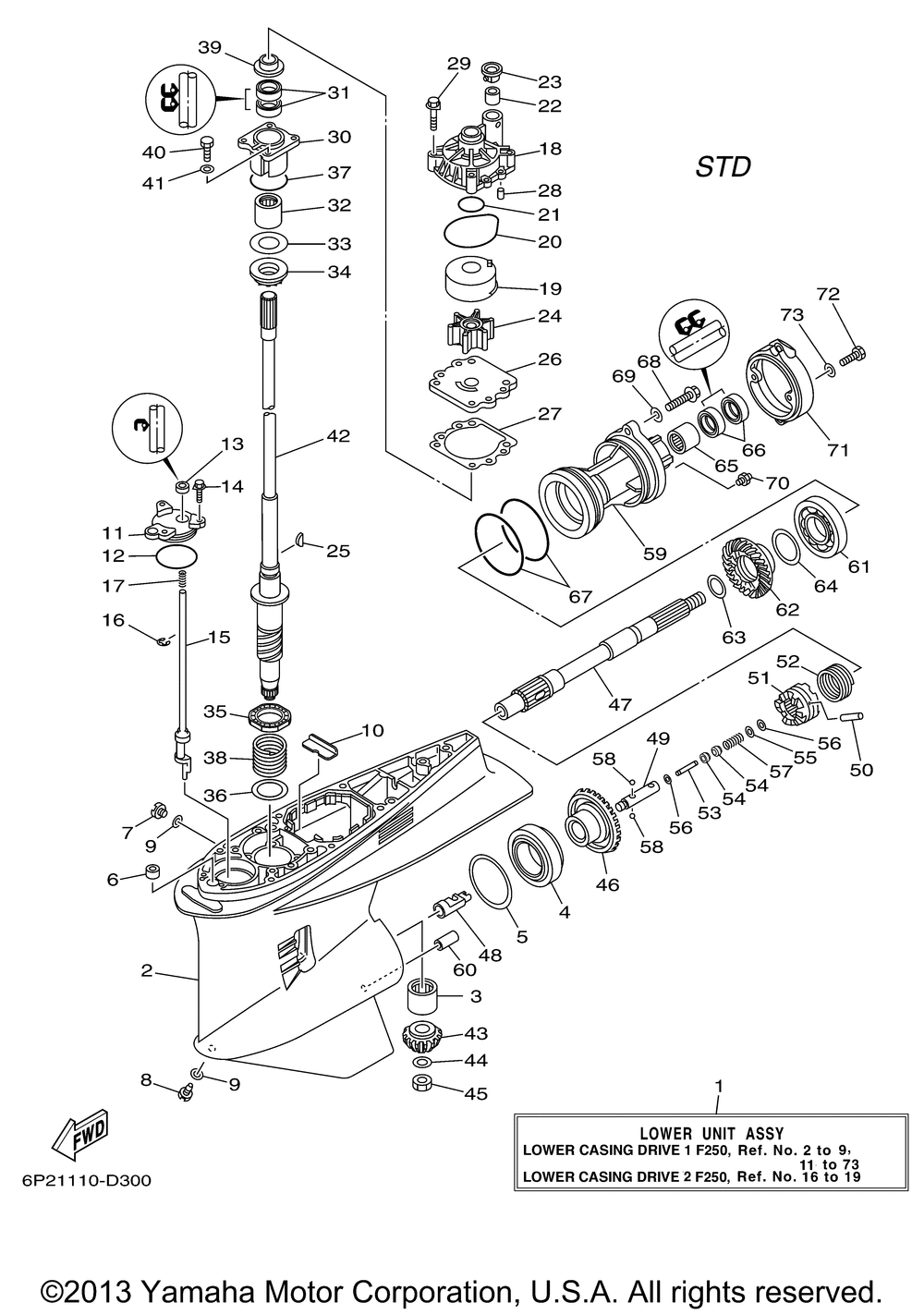

LOWER CASING DRIVE 1
№ Наименование Примечание Кол-во
1 LOWER UNIT ASSY UR U (30.3") RH 1
1 LOWER UNIT ASSY UR X (25.3") RH 1
2 CASING LOWER 1
3 BALL BEARING 1
4 BEARINGTAPRD tahos_32 1
5 SHIM (T:0.10MM) 1
5 SHIM (T:0.12MM) 1
5 SHIM (T:0.15MM) 1
5 SHIM (T:0.18MM) 1
5 SHIM (T:0.30MM) 1
5 SHIM (T:0.40MM) 1
5 SHIM (T:0.50MM) 1
6 DAMPER WATER SEAL 2 1
7 PLUG STRAIGHT SCREW 1
8 PLUG DRAIN 1
9 GASKET (USA) 2
10 GUIDE SEAL DAMPER 1
11 PLATE 1
12 O-RING (2HJ) 1
13 OIL SEALDD-TYPE 1
14 BOLTWITH WASHER 3
15 SHIFT CAM ASSY 1
16 CIRCLIP 1
17 SPRING COMPRESSION 1
18 HOUSINGWATER PUMP 1
19 INSERT CARTRIDGE 1
20 O-RING 1
21 O-RING (5 per pack) 1
22 WATER SEAL 1
23 COVERWTR.PUMP HSG 1
24 IMPELLER 1
25 KEYWOODRUFF 1
26 OUTER PLATE CARTRID 1
27 GASKETWATER PUMP 1
28 PINDOWEL (USA) (5 per pack) 2
29 BOLTWITH WASHER 4
30 HOUSING BEARING 1
31 OIL SEALS-TYPE 2
32 BEARINGCYL.tahos_15 1
33 SHIM (T:0.30MM) 1
33 SHIM (T:0.50MM) 1
33 SHIM (T:0.40MM) 1
33 SHIM (T:0.10MM) 1
33 SHIM (T:0.12MM) 1
33 SHIM (T:0.15MM) 1
33 SHIM (T:0.18MM) 1
34 BEARING 1
35 BEARING 1
36 WASHER PLATE 1
37 O-RING 1
38 SPRING COMPRESSION 1
39 COVEROIL SEAL 1
40 BOLT 4
41 WASHER (5 per pack) 4
42 DRIVE SHAFT COMP. U (30.3") 1
42 DRIVE SHAFT COMP. X (25.3") 1
43 PINION (15T) 1
44 WASHERPLATE 1
45 NUTHEXAGON 1
46 GEAR (30T) 1
47 SHAFT PROPELLER 1
48 SHIFTER 1
49 SLIDE SHIFT 1
50 PIN CROSS 1
51 CLUTCH DOG 1
52 RING CROSS PIN 1
53 SHAFT FREE 1
54 PLUNGERSHIFT 2
55 WASHERPLATE 1
56 NUTSPRING (5 per pack) 2
57 SPRING COMPRESS. 1
58 BALL 1/4 (5 per pack) 2
59 HOUSING BEARING 1
60 PIN DOWEL 1
61 BEARING 1
62 GEAR (30T) 1
63 SHIM (T:1.80MM) UR 1
63 SHIM (T:1.90MM) UR 1
63 SHIM (T:2.00MM) UR 1
63 SHIM (T:2.10MM) UR 1
63 SHIM (T:2.20MM) UR 1
64 SHIM (T:0.50MM) (T:0.50MM) UR 1
64 SHIM (T:0.18MM) (T:0.18MM) UR 1
64 SHIM (T:0.40MM) (T:0.40MM) UR 1
64 SHIM (T:0.12MM) (T:0.12MM) UR 1
64 SHIM (T:0.15MM) (T:0.15MM) UR 1
64 SHIM (T:0.30MM) (T:0.30MM) UR 1
64 SHIM (T:0.10MM) (T:0.10MM) UR 1
65 BEARING 1
66 OIL SEAL 2
67 . .O-RING 2
68 BOLT FLANGE 2
69 WASHER PLATE 2
70 NIPPLE GREASE 1
71 CAP LOWER CASING 1
72 BOLT 2
