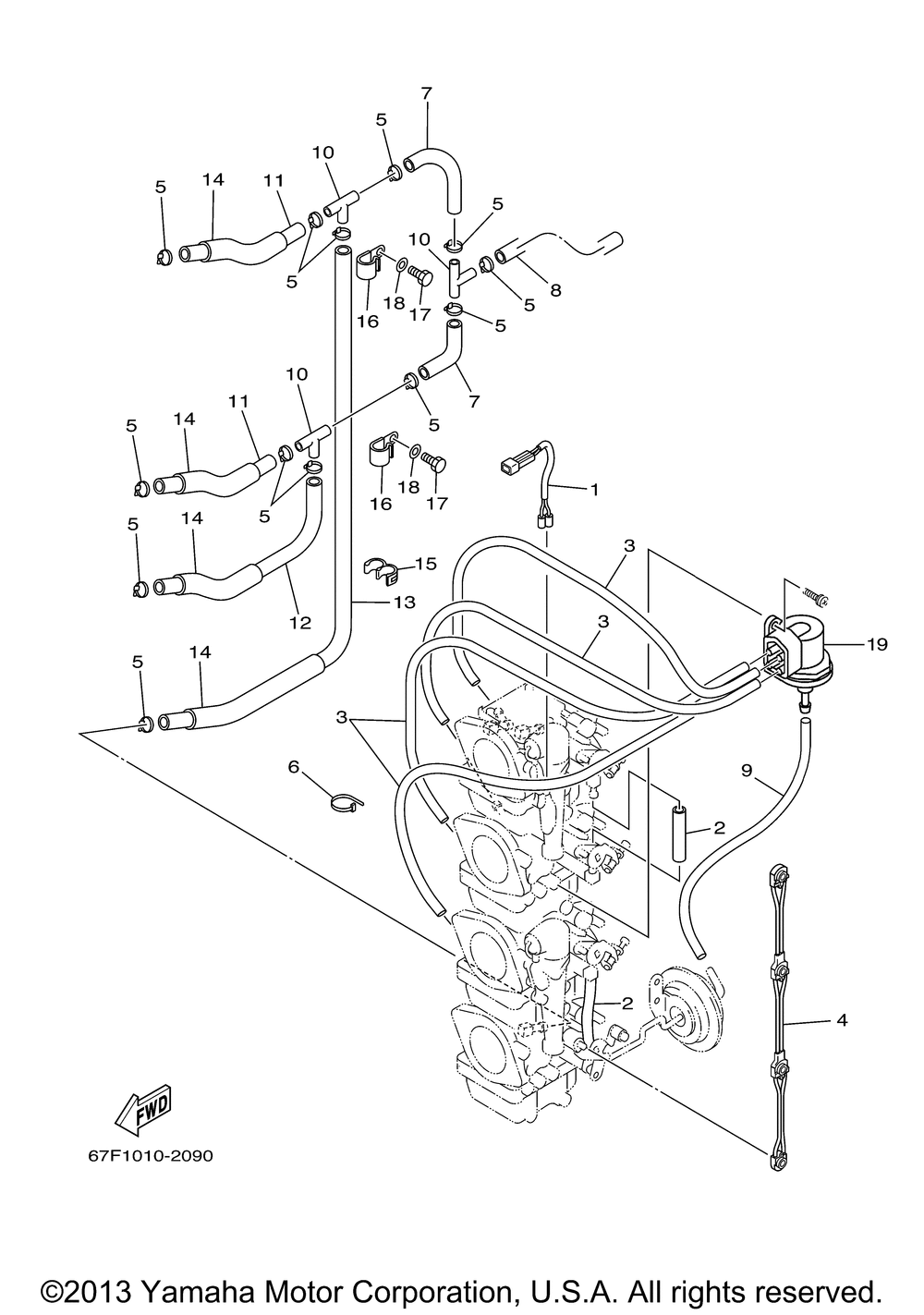

| № | Наименование | Примечание | Кол-во |
|---|---|---|---|
| 1 | WIRE HARNESS ASSY F90 | 1 | |
| 2 | PIPE F90 | 2 | |
| 3 | PIPE F90 | 4 | |
| 4 | ROD CHOKE F90 | 1 | |
| 5 | CLIP | 13 | |
| 6 | CLAMP | 3 | |
| 7 | HOSE F90 | 2 | |
| 8 | PIPE F90 | 1 | |
| 9 | PIPE 1 F90 | 1 | |
| 10 | PIPEJOINT 4 | 3 | |
| 11 | HOSE (L120) F90 | 2 | |
| 12 | HOSE (L180) | 1 | |
| 13 | HOSE (L350) | 1 | |
| 14 | HOSE (L80) F90 | 4 | |
| 15 | CLAMP | 1 | |
| 16 | CLAMP | 2 | |
| 17 | BOLT | 2 | |
| 18 | WASHER (5 per pack) | 2 | |
| 19 | CHECK VALVE BODY ASS F90 | 1 |
