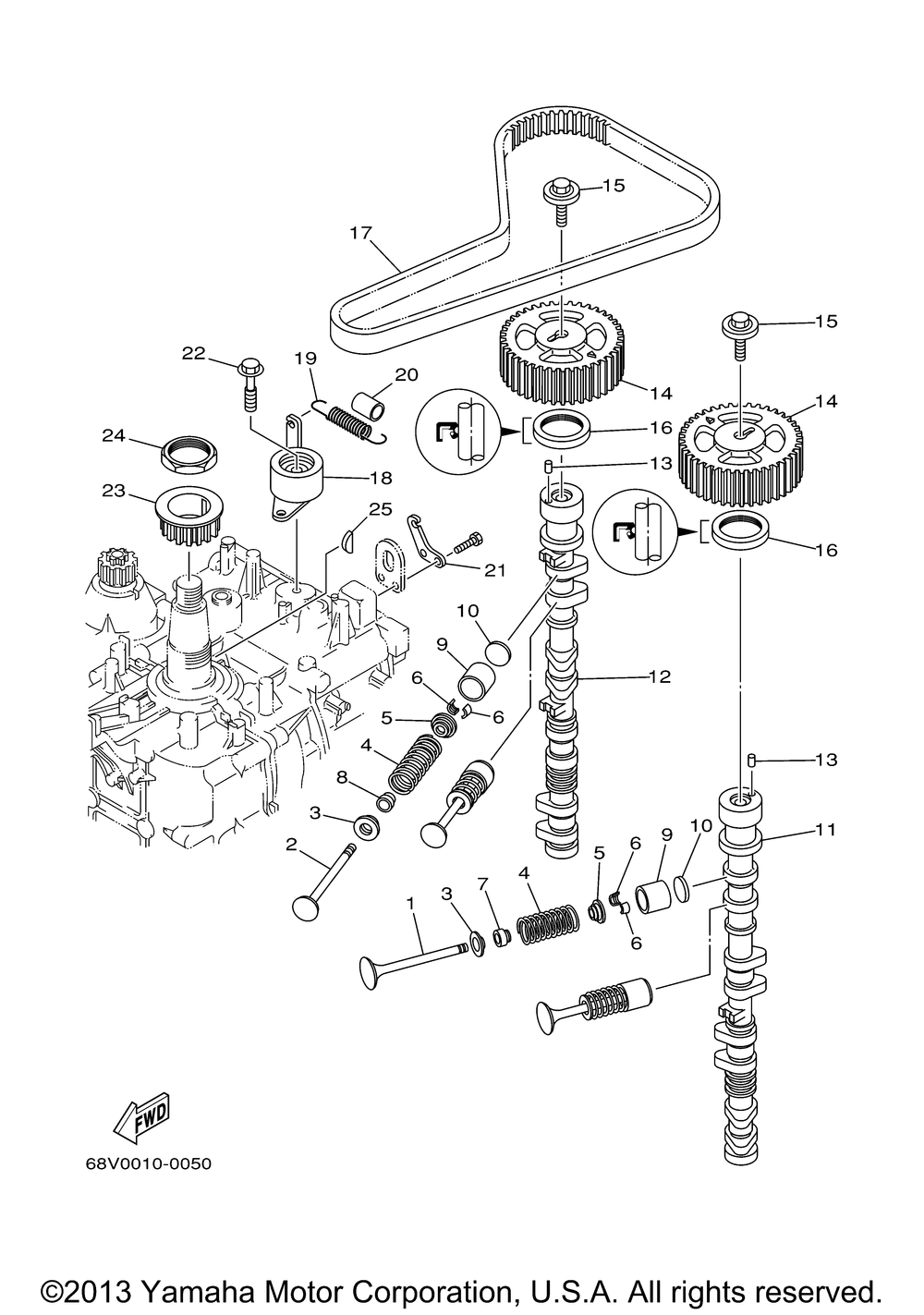

Yamaha F115TXRY/LF115TXRY/F115TLRY F115TXRY/LF115TXRY/F115TLRY VALVE
VALVE
№ Наименование Примечание Кол-во
1 VALVE INTAKE 8
2 VALVE EXHAUST 8
3 SEAT VALVE SPRING 16
4 SPRING VALVE OUTER 16
5 RETAINER VALVE SPRI 16
6 COTTER VALVE 32
7 SEAL VALVE STEM 8
8 SEAL VALVE STEM 2 8
9 LIFTER VALVE 16
10 PAD ADJUSTING (2.00 (2.000) UR 16
10 PAD ADJUSTING (2.22 (2.225) UR 16
10 PAD ADJUSTING (2.02 (2.025) UR 16
10 PAD ADJUSTING (2.05 (2.050) UR 16
10 PAD ADJUSTING (2.07 (2.075) UR 16
10 PAD ADJUSTING (2.10 (2.100) UR 16
10 PAD ADJUSTING (2.12 (2.125) UR 16
10 PAD ADJUSTING (2.15 (2.150) UR 16
10 PAD ADJUSTING (2.17 (2.175) UR 16
10 PAD ADJUSTING (2.20 (2.200) UR 16
10 PAD ADJUSTING (2.25 (2.250) UR 16
10 PAD ADJUSTING (2.27 (2.275) UR 16
10 PAD ADJUSTING (2.30 (2.300) UR 16
10 PAD ADJUSTING (2.32 (2.325) UR 16
10 PAD ADJUSTING (2.35 (2.350) UR 16
10 PAD ADJUSTING (2.37 (2.375) UR 16
10 PAD ADJUSTING (2.40 (2.400) UR 16
10 PAD ADJUSTING (2.42 (2.425) UR 16
10 PAD ADJUSTING (2.45 (2.450) UR 16
10 PAD ADJUSTING (2.47 (2.475) UR 16
10 PAD ADJUSTING (2.50 (2.500) UR 16
10 PAD ADJUSTING (2.52 (2.525) UR 16
10 PAD ADJUSTING (2.55 (2.550) UR 16
10 PAD ADJUSTING (2.57 (2.575) UR 16
10 PAD ADJUSTING (2.60 (2.600) UR 16
10 PAD ADJUSTING (2.62 (2.625) UR 16
10 PAD ADJUSTING (2.65 (2.650) UR 16
10 PAD ADJUSTING (2.67 (2.675) UR 16
10 PAD ADJUSTING (2.70 (2.700) UR 16
10 PAD ADJUSTING (2.72 (2.725) UR 16
10 PAD ADJUSTING (2.75 (2.750) UR 16
10 PAD ADJUSTING (2.77 (2.775) UR 16
10 PAD ADJUSTING (2.80 (2.800) UR 16
10 PAD ADJUSTING (2.82 (2.825) UR 16
10 PAD ADJUSTING (2.85 (2.850) UR 16
10 PAD ADJUSTING (2.87 (2.875) UR 16
10 PAD ADJUSTING (2.90 (2.900) UR 16
10 PAD ADJUSTING (2.92 (2.925) UR 16
10 PAD ADJUSTING (2.95 (2.950) UR 16
10 PAD ADJUSTING (2.97 (2.975) UR 16
10 PAD ADJUSTING (3.00 (3.000) UR 16
10 PAD ADJUSTING (3.02 (3.025) UR 16
10 PAD ADJUSTING (3.05 (3.050) UR 16
10 PAD ADJUSTING (3.07 (3.075) UR 16
10 PAD ADJUSTING (3.10 (3.100) UR 16
10 PAD ADJUSTING (3.12 (3.125) UR 16
10 PAD ADJUSTING (3.15 (3.150) UR 16
10 PAD ADJUSTING (3.17 (3.175) UR 16
10 PAD ADJUSTING (3.20 (3.200) UR 16
10 PAD ADJUSTING (3.22 (3.225) UR 16
10 PAD ADJUSTING (3.25 (3.250) UR 16
10 PAD ADJUSTING (3.27 (3.275) UR 16
10 PAD ADJUSTING (3.30 (3.300) UR 16
11 CAMSHAFT 1 1
12 CAMSHAFT 2 1
13 PINDOWEL (5 per pack) 2
14 GEAR DRIVEN 2
15 BOLT 2
16 OIL SEAL 2
17 BELT 1
18 TENSIONER ASSY 1
19 SPRING TENSION 1
20 HOSE (L23) 1
21 PLATEVALVE 1
22 BOLTWITH WASHER (5 per pack) 1
23 GEAR DRIVE 1
24 NUT 1
25 KEYWOODRUFF 1
