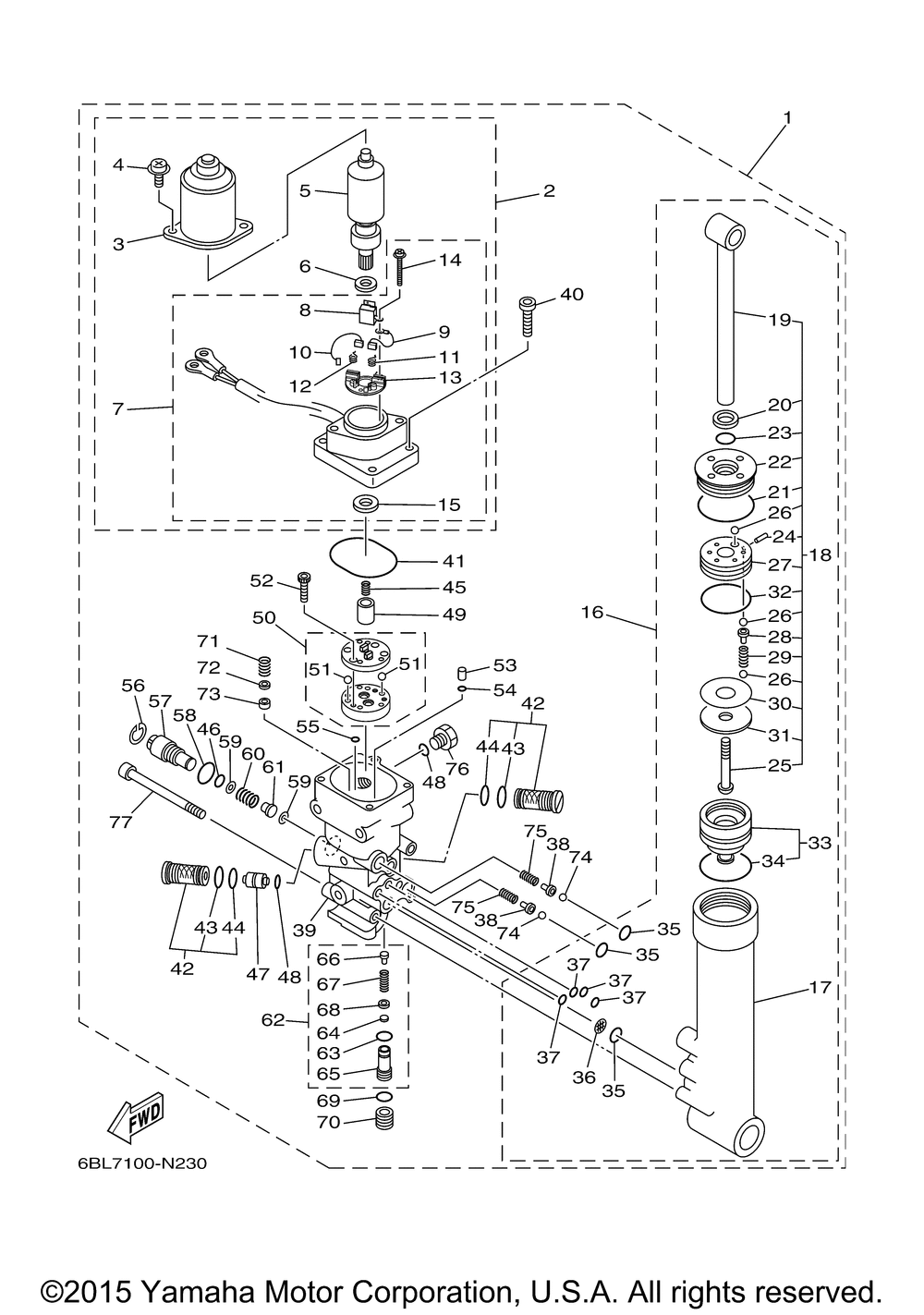

POWER TRIM TILT ASSY

№	Наименование	Кол-во
1	POWER TRIM & TILT AS	1
2	MOTOR ASSY	1
3	. . ..STATOR ASSY	1
4	. . ..BOLT	2
5	. . ..ARMATURE ASSY	1
6	. . ..WASHER	1
7	FRAME END	1
8	. . . ...CIRCUIT BREAKER COMP.	1
9	. . . ...BRUSH 2	1
10	. . . ...BRUSH 1	1
11	. . . ...SPRING BRUSH	1
12	. . . ...SPRING BRUSH 2	1
13	. . . ...PLATE BRUSH HOLDER	1
14	. . . ...SCREW WITH WASHER	2
15	. . . ...OIL SEAL	1
16	. .POWER TILT ASSY	1
17	. . ..CYLINDER TILT SUB ASSY	1
18	. . ..TILT PISTON SUB ASSY	1
19	. . . ...ROD	1
20	. . . ...SEAL DUST	1
21	. . . ...O-RING	1
22	. . . ...SCREW CYLINDER END	1
23	. . . ...O-RING	1
24	PIN SPRING	1
25	BOLT	1
26	BALL	11
27	. . . ...PISTON TILT	1
28	. . . ..PIN ABSORBER VALVE	5
29	. . . ...SPRING ABSORBER VALVE	5
31	WASHER PLATE	1
32	O-RING	1
33	. . ..FREE PISTON SUB ASSY	1
34	. . . ...O-RING	1
35	O-RING	3
36	FILTER 3	1
37	O-RING (5 per pack)	4
39	HOUSING TRIM & TILT	1
40	BOLTHEX SKT HEAD	4
41	O-RING	1
42	. .VALVE SUB ASSY	2
43	. . ..O-RING	1
44	. . .O-RING	1
45	. .SPRING MAIN VALVE	1
46	O-RING	1
47	. .PISTON SHUTTLE	1
48	O-RING	2
49	. .CONNECTOR SHAFT	1
50	. .GEAR PUMP ASSY	1
52	. .BOLT	4
53	. .FILTER 2	2
54	. .O-RING	2
55	O-RING	2
56	RING SNAP	1
57	. .SCREW MANUAL RELEASE	1
58	O-RING	1
59	. .SEAT MANUAL VALVE	2
60	. .SPRING MANUAL RELEASE	1
61	. .ADAPTOR 1	1
62	. .CASE VALVE COMP.	1
64	SEALRELIEF VALVE	1
65	. . ..SEAT RELIEF VALVE	1
66	. . ..SCREW VALVE LOCK	1
67	SPRINGDOWN RELIEF	1
68	PINVALVE SUPPORT	1
69	O-RING	1
70	. .SCREW VALVE LOCK	1
73	. .SEAL MAIN VALVE	1
74	BALL 1/8	2
75	. .SPRING MAIN VALVE	2
76	PLUGRESERVOIR	1
77	. .BOLT SOCKET	3
