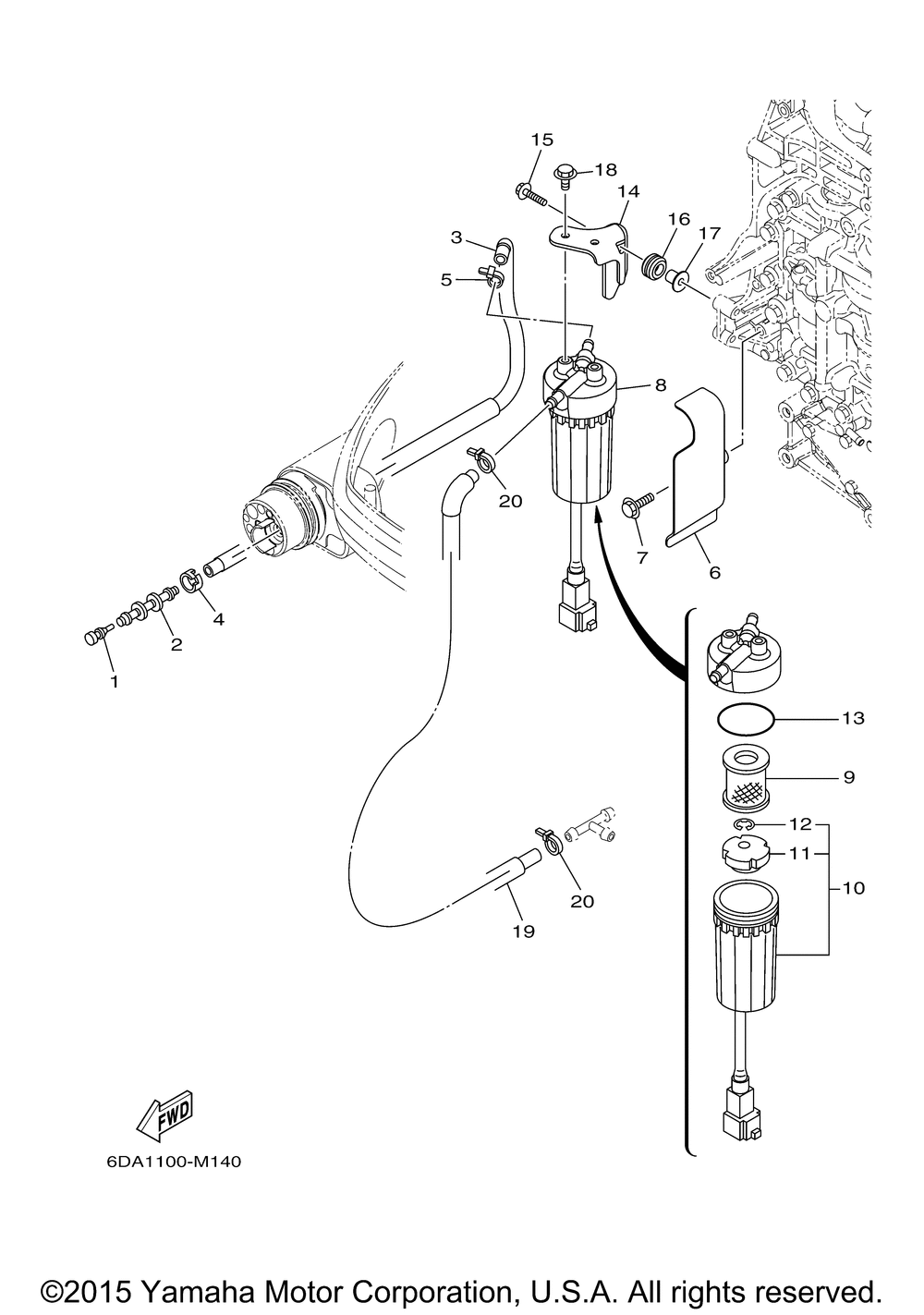

| № | Наименование | Примечание | Кол-во |
|---|---|---|---|
| 1 | DAMPER | 1 | |
| 2 | PIPE JOINT 2 | 1 | |
| 3 | PIPE 4 | 1 | |
| 4 | BAND 1 | 1 | |
| 5 | CLAMP | 1 | |
| 6 | COVER | 1 | |
| 7 | BOLT | 2 | |
| 8 | FILTER ASSY | 1 | |
| 11 | FLOAT WATER LEVEL | 1 | |
| 12 | CLIP | 1 | |
| 13 | GASKET | 1 | |
| 14 | BRACKET FILTER | 1 | |
| 15 | BOLTWITH WASHER | 2 | |
| 16 | GROMMET | 2 | |
| 17 | COLLAR | 2 | |
| 18 | BOLT | 2 | |
| 19 | PIPE 3 | 1 |
