Yamaha C25ELHV/C25MSHV/C25ELRV/C25MLHV C25ELHV/C25MSHV/C25ELRV/C25MLHV LOWER CASING DRIVE 1

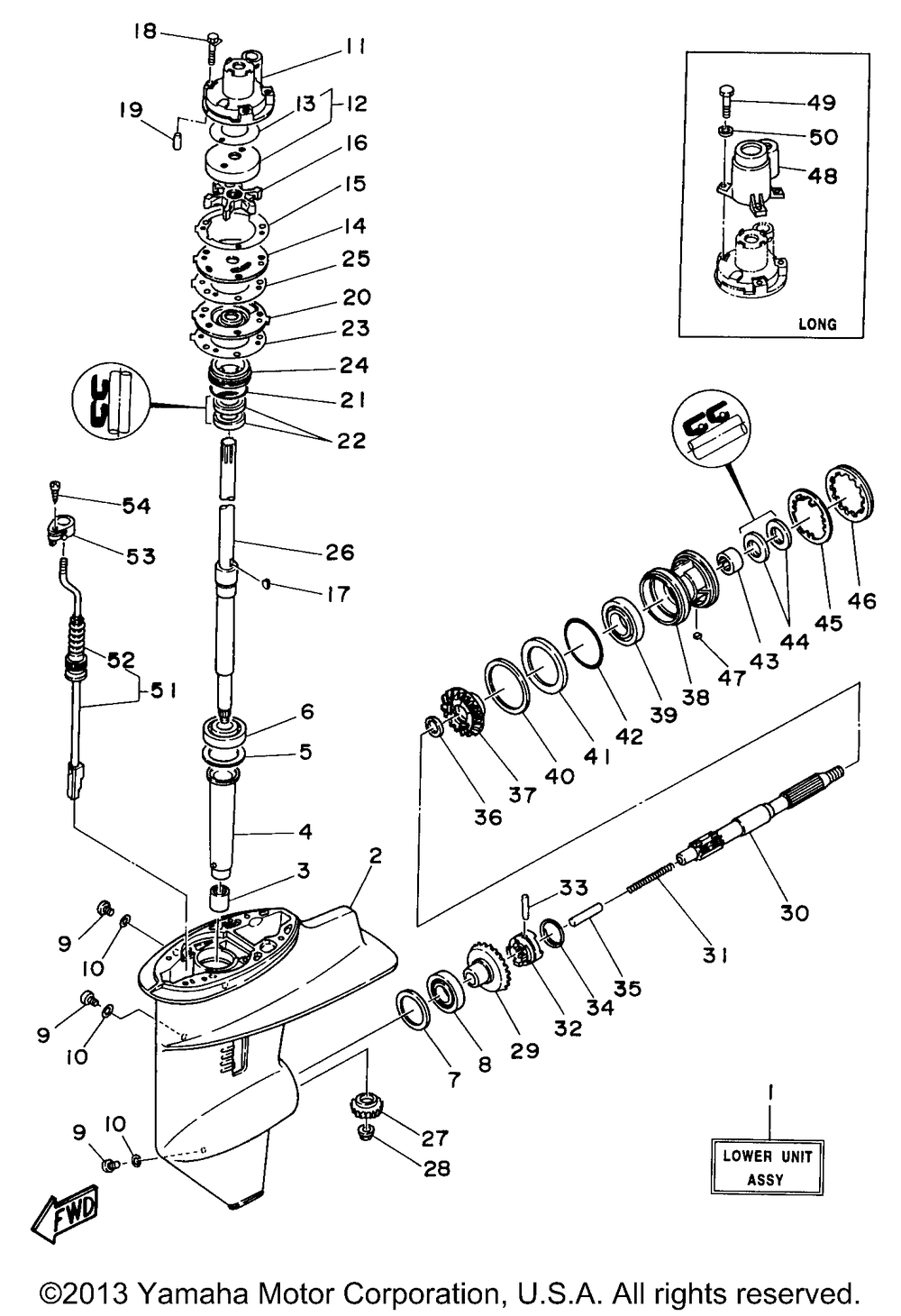

LOWER CASING DRIVE 1
№ Наименование Примечание Кол-во
1 LOWER UNIT ASSY 1
1 LOWER UNIT ASSY 1
2 CASINGLOWER 1
3 BEARINGCYL.tahos_15 1
4 SLEEVEDRIVE SHFT 1
5 SHIM (T:0.50MM) (T:0.50MM) UR 1
5 SHIM (T:0.40MM) (T:0.40MM) UR 1
5 SHIM (T:0.30MM) (T:0.30MM) UR 1
5 SHIM (T:0.18MM) (T:0.18MM) UR 1
5 SHIM (T:0.10MM) (T:0.10MM) UR 1
5 SHIM (T:0.12MM) (T:0.12MM) UR 1
5 SHIM (T:0.15MM) (T:0.15MM) UR 1
6 BEARING 1
7 SHIM (T:0.30MM) (T:0.30MM) UR 1
7 SHIM (T:0.18MM) (T:0.18MM) UR 1
7 SHIM (T:0.40MM) (T:0.40MM) UR 1
7 SHIM (T:0.50MM) (T:0.50MM) UR 1
7 SHIM (T:0.10MM) (T:0.10MM) UR 1
7 SHIM (T:0.12MM) (T:0.12MM) UR 1
7 SHIM (T:0.15MM) (T:0.15MM) UR 1
8 BEARING 1
9 PLUG STRAIGHT SCREW 3
10 GASKET (USA) 3
11 HOUSINGWATER PUMP 1
12 INSERT CARTRIDGE 1
13 WATER SEAL 1
14 OUTER PLATECART. 1
15 GASKET CARTRIDGE 1
16 IMPELLER 1
17 . .KEY WOODRUFF 1
18 BOLTWITH WASHER 3
19 PINDOWEL (5 per pack) 2
20 PROTECTOR OIL SEAL 1
21 O-RING 1
22 OIL SEALS-TYPE 2
23 GASKETWATER PUMP 1
24 COVEROIL SEAL 1
25 GASKETWATER PUMP 1
26 DRIVE SHAFT UR SHORT 1
26 DRIVE SHAFT UR LONG 1
27 PINION 1
28 NUTSPEC'L SHAPE 1
29 GEAR 1
30 SHAFTPROPELLER 1
31 SPRINGCOMPRESSION 1
32 CLUTCH DOG 1
33 PIN STRAIGHT 1
34 RINGCROSS PIN 1
35 PLUNGERSHIFT 1
36 WASHERPLATE 1
37 GEAR 2 1
38 HOUSING BEARING 1
39 BEARING 1
40 SHIM (T:0.50MM) (T:0.50MM) UR 1
40 SHIM (T:0.40MM) (T:0.40MM) UR 1
40 SHIM (T:0.30MM) (T:0.30MM) UR 1
40 SHIM (T:0.18MM) (T:0.18MM) UR 1
40 SHIM (T:0.15MM) (T:0.15MM) UR 1
40 SHIM (T:0.12MM) (T:0.12MM) UR 1
40 SHIM (T:0.10MM) (T:0.10MM) UR 1
41 WASHERTHRUST 1
42 O-RING 1
43 BEARINGCYL.tahos_15 1
44 OIL SEALS-TYPE 2
45 WASHERCLAW 1
46 NUT 1
47 KEYSTRAIGHT 1
48 COVER WATER PUMP HO LONG 1
49 WASHER (5 per pack) 3
50 BOLT 3
51 SHIFT CAM ASSY UR SHORT 1
51 SHIFT CAM ASSY UR LONG 1
52 BOOTSHIFT ROD 1
53 BRACKET 1
54 SCREWTAPPING (5 per pack) 1
