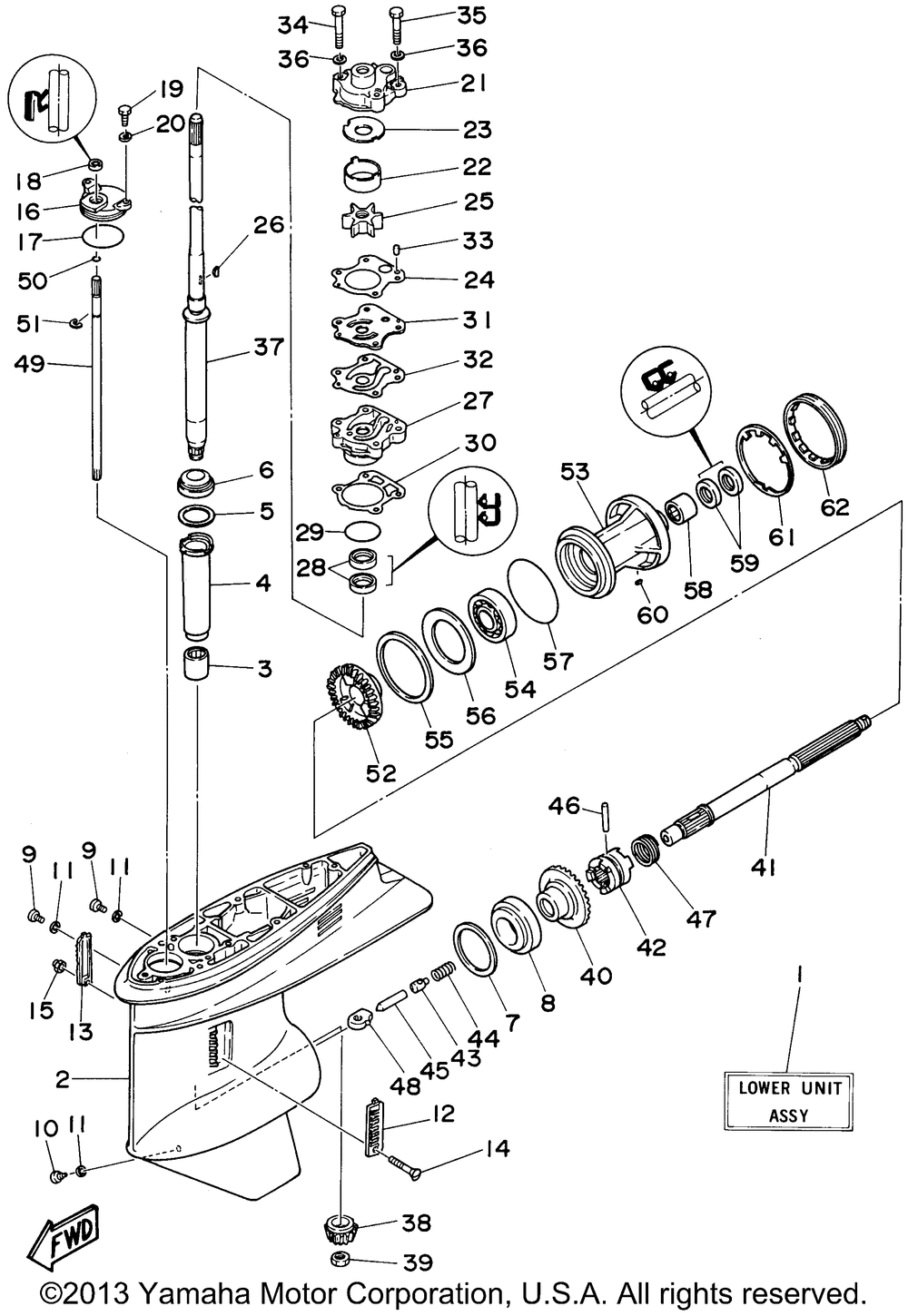

Yamaha E60MLHU E60MLHU LOWER CASING DRIVE 1
LOWER CASING DRIVE 1
№ Наименование Примечание Кол-во
1 LOWER UNIT ASSY 1
2 LOWER CASING SET 1
3 BEARINGCYL.tahos_15 1
4 SLEEVE DRIVE SHAFT 1
5 SHIM (T:0.30MM) (T:0.30MM) UR 1
5 SHIM (T:0.10MM) (T:0.10MM) UR 1
5 SHIM (T:0.12MM) (T:0.12MM) UR 1
5 SHIM (T:0.15MM) (T:0.15MM) UR 1
5 SHIM (T:0.18MM) (T:0.18MM) UR 1
5 SHIM (T:0.50MM) (T:0.50MM) UR 1
5 SHIM (T:0.40MM) (T:0.40MM) UR 1
6 BEARING 1
7 SHIM (T:0.12MM) (T:0.12MM) UR 1
7 SHIM (T:0.10MM) (T:0.10MM) UR 1
7 SHIM (T:0.15MM) (T:0.15MM) UR 1
7 SHIM (T:0.18MM) (T:0.18MM) UR 1
7 SHIM (T:0.30MM) (T:0.30MM) UR 1
7 SHIM (T:0.40MM) (T:0.40MM) UR 1
7 SHIM (T:0.50MM) (T:0.50MM) UR 1
8 BEARING (6B0) 1
9 PLUG STRAIGHT SCREW 2
10 PLUG DRAIN 1
11 GASKET (USA) 3
12 COVER WATER INLET 1
13 COVER WATER INLET 1
14 SCREWCOUNTERSUNK (5 per pack) 1
15 NUTSELF-LOCKING 1
16 PLATE 1
17 O-RING 1
18 OIL SEALDD-TYPE 1
19 BOLT (GA1) (5 per pack) 2
20 WASHER (5 per pack) 2
21 HOUSING WATER PUMP 1
22 INSERT CARTRIDGE 1
23 INNER PLATE CART. 1
24 . .GASKET WATER PUMP 1
25 . .IMPELLER 1
26 . .KEY WOODRUFF 1
27 HOUSING WATER PUMP 1
28 . .OIL SEAL 2
29 O-RING (5 per pack) 1
30 . .GASKET WATER PUMP 1
31 . .OUTER PLATE CARTRIDGE 1
32 . .GASKET CARTRIDGE 1
33 PINDOWEL (5 per pack) 2
34 BOLT 2
35 . .BOLT 2
36 WASHERSPEC'L SHAPE 4
37 DRIVE SHAFT 1
38 PINION (12T) 1
39 NUTHEXAGON 1
40 GEAR 1 ASSY (28T) 1
41 SHAFTPROPELLER 1
42 CLUTCHDOG (C90) 1
43 SLIDESHAFT (C90) 1
44 SPRINGCOMPRESSION (C90) 1
45 PLUNGERSHIFT (C90) 1
46 PIN STRAIGHT 1
47 RING CROSS PIN 1
48 CAMSHIFT 1
49 RODSHIFT 2 1
50 O-RING 1
51 CIRCLIP 1
52 GEAR 2 1
53 HOUSING BEARING 1
54 BEARING 1
55 SHIM (T:0.50MM) (T:0.50MM) UR 1
55 SHIM (T:0.40MM) (T:0.40MM) UR 1
55 SHIM (T:0.30MM) (T:0.30MM) UR 1
55 SHIM (T:0.18MM) (T:0.18MM) UR 1
55 SHIM (T:0.15MM) (T:0.15MM) UR 1
55 SHIM (T:0.12MM) (T:0.12MM) UR 1
55 SHIM (T:0.10MM) (T:0.10MM) UR 1
56 WASHERTHRUST 1
57 O-RING 1
58 BEARING 1
59 . .OIL SEAL 2
60 KEYSTRAIGHT 1
61 WASHERCLAW 1
62 NUT 1
