Yamaha 225TXRT/L225TXRT/L225TURT/225TURT 225TXRT/L225TXRT/L225TURT/225TURT LOWER CASING DRIVE 1 (225TXRT 225TURT)

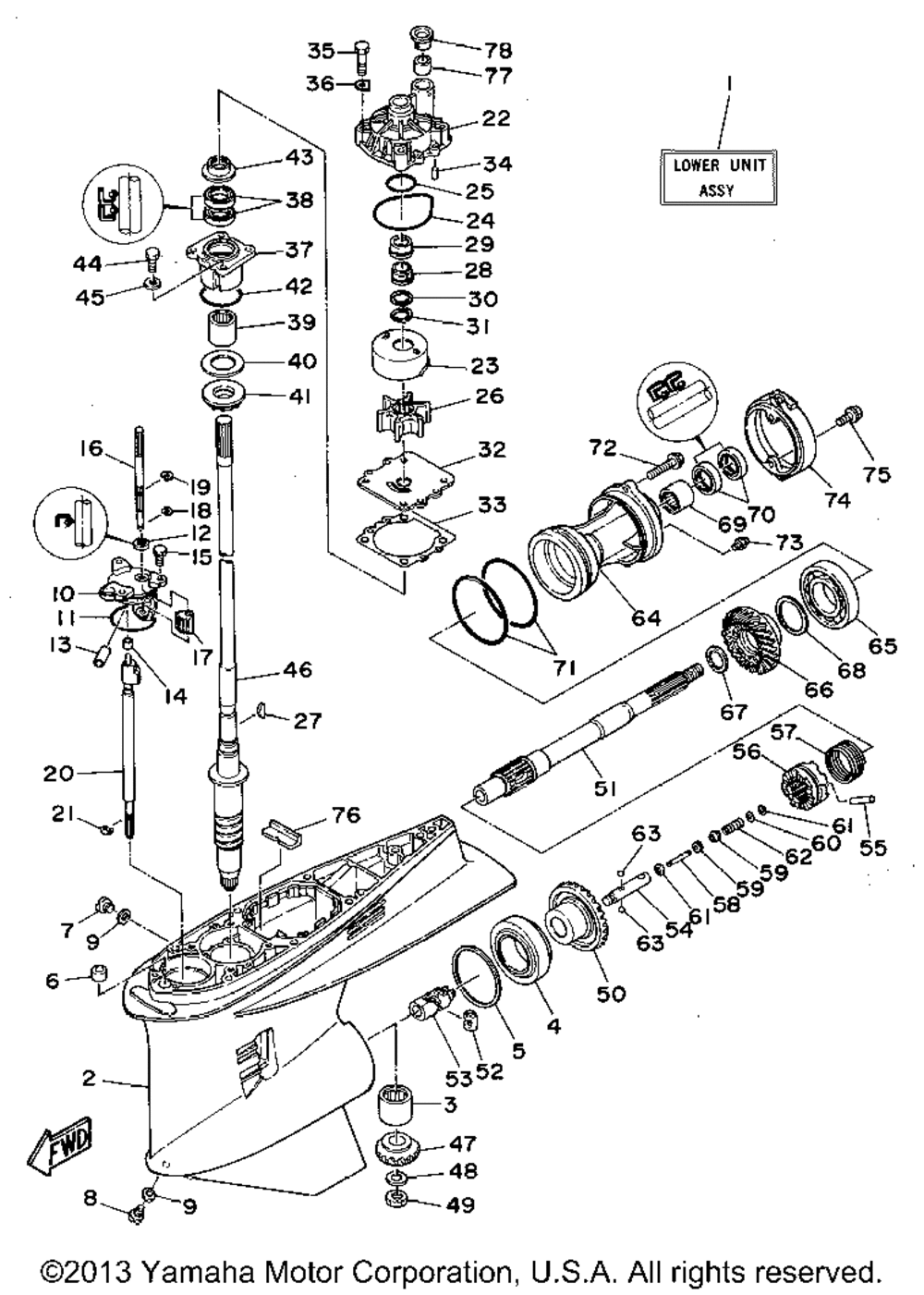

LOWER CASING DRIVE 1 (225TXRT 225TURT)
№ Наименование Примечание Кол-во
1 LOWER UNIT ASSY UR ULTRA LONG 1
1 LOWER UNIT ASSY UR SUPER ULTRA LONG 1
2 CASING LOWER 1
3 BALL BEARING 1
4 BEARINGTAPRD tahos_32 1
5 SHIM (T:0.18MM) (T:0.18MM) UR 1
5 SHIM (T:0.12MM) (T:0.12MM) UR 1
5 SHIM (T:0.15MM) (T:0.15MM) UR 1
5 SHIM (T:0.50MM) (T:0.50MM) UR 1
5 SHIM (T:0.30MM) (T:0.30MM) UR 1
5 SHIM (T:0.40MM) (T:0.40MM) UR 1
5 SHIM (T:0.10MM) (T:0.10MM) UR 1
6 DAMPER WATER SEAL 2 1
7 PLUG STRAIGHT SCREW 1
8 PLUG DRAIN 1
9 GASKET (USA) 2
10 PLATE 1
11 O-RING (2HJ) 1
12 OIL SEALDD-TYPE 1
13 DETENT COMP. 1
14 BUSH BIMETAL FORMED 1
15 BOLT W/WASHER 3
16 RODSHIFT 2 1
17 LEVERSHIFT CONTR. 1
18 CIRCLIP 1
19 CIRCLIPINNER 1
20 SHIFT CAM ASSY 1
22 HOUSINGWATER PUMP 1
23 INSERT CARTRIDGE 1
24 O-RING 1
25 O-RING (5 per pack) 1
26 IMPELLER (67N0) 1
27 KEYWOODRUFF 1
28 SPACER 1 1
29 COLLARDRIVE SHAFT 1
30 WASHERPLATE (5 per pack) 2
31 WASHERWAVE 1
32 OUTER PLATE CARTRID 1
33 GASKETWATER PUMP 1
34 PINDOWEL (USA) (5 per pack) 2
35 BOLTHEXAGON 4
36 WASHERSPEC'L SHAPE 4
37 HOUSING BEARING 1
38 OIL SEALS-TYPE 2
39 BEARINGCYL.tahos_15 1
40 SHIM (T:0.10MM) (T:0.10MM) UR 1
40 SHIM (T:0.12MM) (T:0.12MM) UR 1
40 SHIM (T:0.15MM) (T:0.15MM) UR 1
40 SHIM (T:0.30MM) (T:0.30MM) UR 1
40 SHIM (T:0.40MM) (T:0.40MM) UR 1
40 SHIM (T:0.50MM) (T:0.50MM) UR 1
40 SHIM (T:0.18MM) (T:0.18MM) UR 1
41 BEARING 1
42 O-RING 1
43 COVEROIL SEAL 1
44 BOLT 4
45 WASHER (5 per pack) 4
46 DRIVE SHAFT UR SUPER ULTRA LONG 1
46 DRIVE SHAFT UR ULTRA LONG 1
47 PINION 1
48 WASHERPLATE 1
49 NUTHEXAGON 1
50 GEAR 1 ASSY 1
51 SHAFTPROPELLER 1
52 CAMSHIFT 1
53 SHIFTER 1
54 SLIDESHAFT 1
55 PIN CROSS 1
56 CLUTCHDOG 1
57 RING CROSS PIN 1
58 SHAFT FREE 1
59 PLUNGERSHIFT 2
60 WASHERPLATE 1
61 NUTSPRING (5 per pack) 2
62 SPRING COMPRESS. 1
63 BALL 1/4 (5 per pack) 2
64 HOUSINGBEARING 1
65 BEARING 1
66 GEAR 2 (29T) UR VZ200 1
67 WASHERPLATE 1
68 SHIM (T:0.10MM) (T:0.10MM) UR 1
68 SHIM (T:0.15MM) (T:0.15MM) UR 1
68 SHIM (T:0.18MM) (T:0.18MM) UR 1
68 SHIM (T:0.30MM) (T:0.30MM) UR 1
68 SHIM (T:0.40MM) (T:0.40MM) UR 1
68 SHIM (T:0.12MM) (T:0.12MM) UR 1
68 SHIM (T:0.50MM) (T:0.50MM) UR 1
69 BEARING 1
70 OIL SEALS-TYPE 2
71 . .O-RING 2
72 BOLTWASHER BASED 2
73 NIPPLE GREASE 1
74 CAP LOWER CASING 1
75 BOLT 2
76 GUIDE SEAL DAMPER 1
77 WATER SEAL 1
78 COVERWTR.PUMP HSG 1
