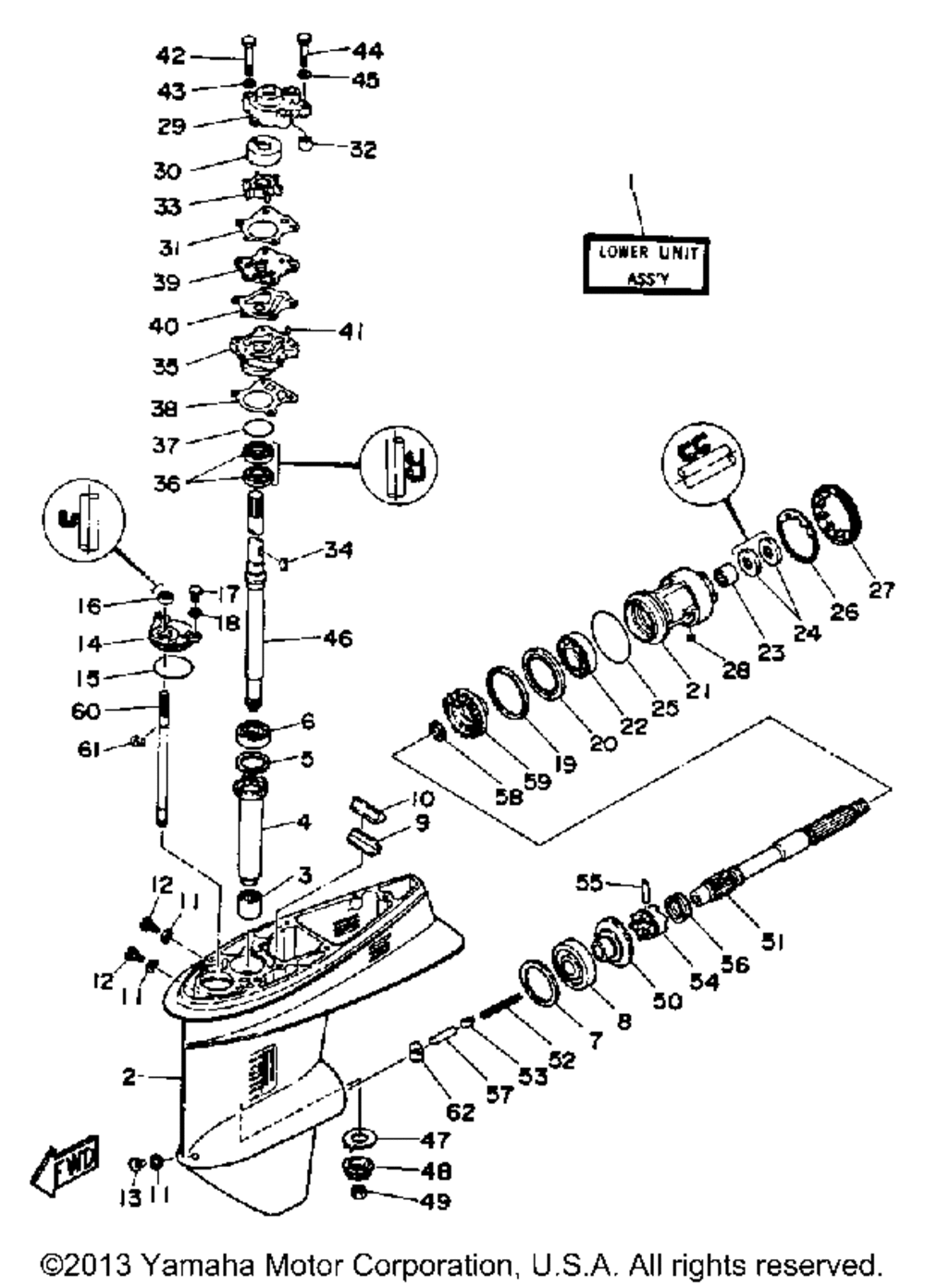

Yamaha C55ELRP C55ELRP LOWER DRIVE 1
LOWER DRIVE 1
№ Наименование Примечание Кол-во
1 LOWER UNIT ASSY 1
2 CASING LOWER 1
3 BEARING 1
4 SLEEVEDRIVE SHFT 1
5 SHIM (T:0.12MM) (T:0.12MM) UR 1
5 SHIM (T:0.15MM) (T:0.15MM) UR 1
5 SHIM (T:0.40MM) (T:0.40MM) UR 1
5 SHIM (T:0.10MM) (T:0.10MM) UR 1
5 SHIM (T:0.50MM) (T:0.50MM) UR 1
5 SHIM (T:030MM) (T:0.30MM) UR 1
5 SHIM (T:0.18MM) (T:0.18MM) UR 1
6 Подшипник 1
7 SHIM (T:0.12MM) (T:0.12MM) UR 1
7 SHIM (T:0.10MM) (T:0.10MM) UR 1
7 SHIM (T:0.15MM) (T:0.15MM) UR 1
7 SHIM (T:0.18MM) (T:0.18MM) UR 1
7 SHIM (T:0.30MM) (T:0.30MM) UR 1
7 SHIM (T:0.40MM) (T:0.40MM) UR 1
7 SHIM (T:0.50MM) (T:0.50MM) UR 1
8 BEARING 1
9 GUIDERUB.SEAL 1
10 SEALRUBBER 1
11 GASKET (USA) 3
12 PLUG STRAIGHT SCREW 2
13 PLUG DRAIN 1
14 PLATE 1
15 O-RING 1
16 OIL SEALDD-TYPE 1
17 BOLT (GA1) (5 per pack) 2
18 WASHER (5 per pack) 2
19 SHIM (T:0.30MM) (T:0.30MM) UR 1
19 SHIM (T:0.40MM) (T:0.40MM) UR 1
19 SHIM (T:0.15MM) (T:0.15MM) UR 1
19 SHIM (T:0.12MM) (T:0.12MM) UR 1
19 SHIM (T:0.10MM) (T:0.10MM) UR 1
19 SHIM (T:0.50MM) (T:0.50MM) UR 1
19 SHIM (T:0.18MM) (T:0.18MM) UR 1
20 WASHERTHRUST 1
21 HOUSING BEARING 1
22 BEARING 1
23 BEARINGCYL.tahos_17 1
24 OIL SEALS-TYPE 2
25 O-RING 1
27 NUT 1
28 KEYSTRAIGHT 1
29 HOUSINGWATER PUMP 1
30 . .INSERT CARTRIDGE 1
31 GASKETWATER PUMP 1
32 DAMPER WATER SEAL 2 1
33 IMPELLER 1
34 . .KEY WOODRUFF 1
35 HOUSING WATER PUMP 1
36 . .OIL SEAL 2
37 O-RING 1
38 GASKETWATER PUMP 1
39 OUTER PLATECART. 1
40 GASKET CARTRIDGE 1
41 PIN DOWEL 2
42 BOLT 2
43 WASHER (5 per pack) 2
44 BOLTHEXAGON 2
46 DRIVE SHAFT ASSY 1
47 BEARINGPLAIN 1
48 PINION 1
49 NUTHEXAGON 1
50 GEAR 1 ASSY 1
51 SHAFTPROPELLER 1
52 SPRINGCOMPRESSION (C90) 1
53 SLIDESHAFT 1
54 CLUTCHDOG 1
55 PIN STRAIGHT 1
56 RINGCROSS PIN 1
57 PLUNGERSHIFT (C90) 1
58 WASHER PLATE 1
59 GEAR 2 1
60 RODSHIFT 2 (C90) 1
61 CIRCLIP 1
62 CAMSHIFT 1
