Yamaha F200XA 0114 F200XA 0114 LOWER CASING DRIVE 2

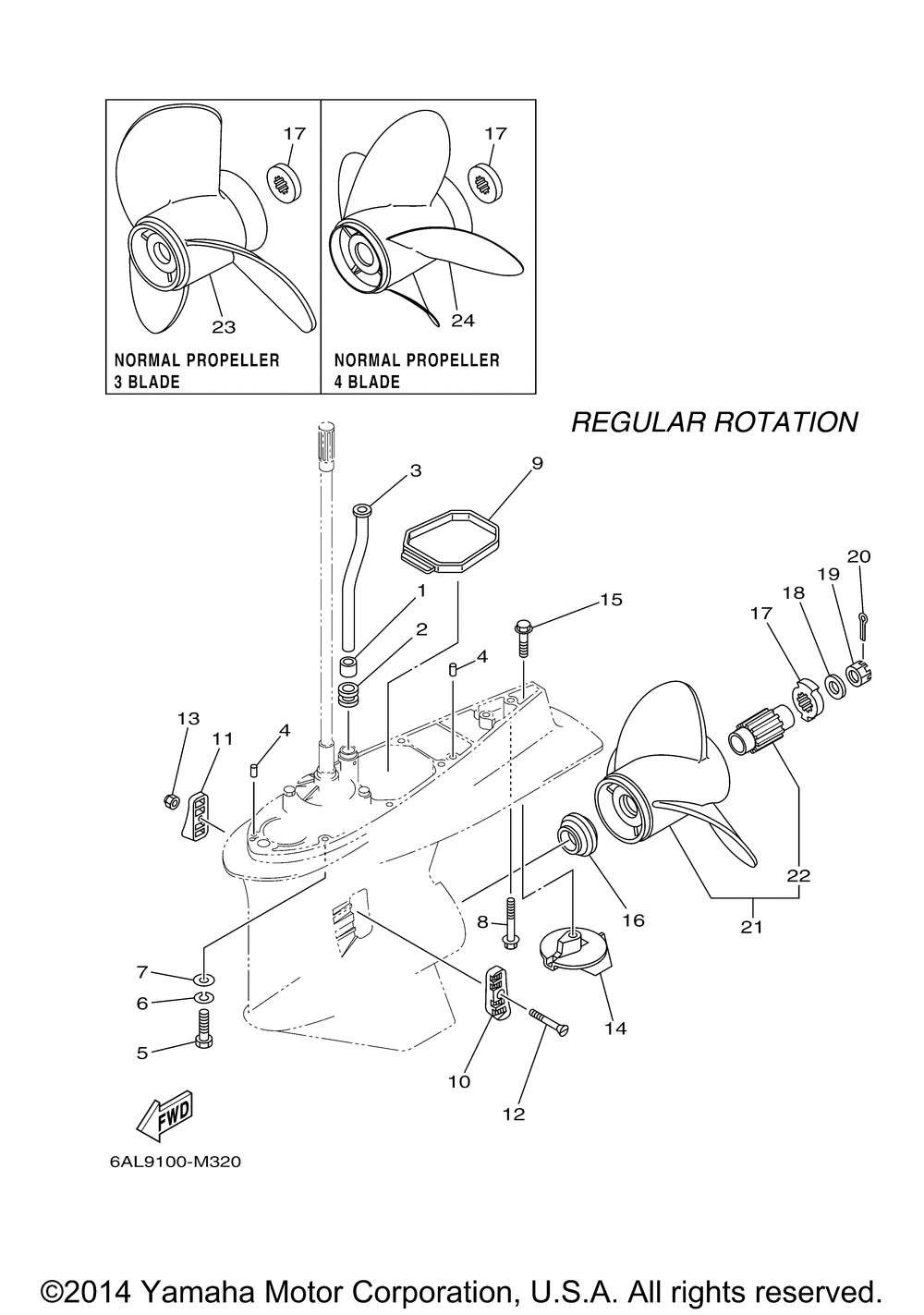

LOWER CASING DRIVE 2
№ Наименование Примечание Кол-во
1 WATER SEAL 1
2 WATER SEAL 1
3 TUBE WATER 1 1
4 PINDOWEL (5 per pack) 2
5 BOLT 7
6 WASHER 7
7 WASHER 7
8 BOLT WITH WASHER 1
9 DAMPER SEAL 1
10 COVER WATER INLET 1 1
11 COVER WATER INLET 2 1
12 SCREW COUNTERSUNK 1
13 NUTSELF-LOCKING 1
14 TRIM-TAB 1
15 BOLTWASHER BASED 1
16 SPACER 1
17 SPACER 2 1
17 SPACER SDS PROPS FOR SDS PROP. 1
18 WASHER 1
19 NUTCASTLE 1
20 PINCOTTER (5 per pack) 1
21 SWS2 W/SDS (3X15-1/2 (3X15-1/2"X17"-T) UR SDS 3 BLADE 1
21 SWS2 W/SDS (3X14-3/4 (3X14-3/4"X23"-T) UR SDS 3 BLADE 1
21 SWS2 W/SDS (3X15-3/4 (3X15-3/4"X13"-T) UR SDS 3 BLADE 1
21 SWS2 W/SDS (3 X 15 X (3X15"X20"-T) UR SDS PROP. 1
21 SWS2 W/SDS (3X15-1/4 (3X15-1/4"X18"-T) UR SDS PROP. 1
21 SWS2 W/SDS (15-1/4 X (3X15-1/4"X19"-T) UR SDS PROP. 1
21 SWS2 W/SDS (15 X21 - (3X15"X21"-T) UR SDS PROP. 1
21 SWS2 W/SDS (3X15-3/4 (3X15-3/4"X15"-T) UR SDS 3 BLADE 1
22 DAMPER FOR 6CE/F PRO 1
23 SWS 14-7/8X21R (EXPO (3X14-7/8"X21"-M) AP NORMAL 3 BLADE 1
23 SS PROP14-1/2X23R (3X14-1/2"X23"-M) AP NORMAL 3 BLADE 1
23 SWS15-1/4X15R(FOR EX (3X14-1/2"X15"-M) AP NORMAL 3 BLADE 1
23 SWS15-1/4X17R(ONLY F (3X15-1/4"X17"-M) AP NORMAL 3 BLADE 1
23 SS PROP 14-1/2X19 (3X14-1/2"X19"-T) AP NORMAL PROP. 1
23 SS PROP 14-1/2X21 (3X14-1/2"X21"-T) AP NORMAL 3 BLADE 1
23 SS PROP 15X17 (3X15"X17"-T) AP NORMAL 3 BLADE 1
23 SS PROP 15-1/4X15 (3X15-1/4"X15"-M) AP NORMAL 3 BLADE 1
23 SS PROP 13-3/4X21 (3X13-3/4"X21"-M) AP NORMAL 3 BLADE 1
23 SS PROP 13-3/4X19 (3X13-3/4"X19"-M2) AP NORMAL 3 BLADE 1
23 SS PROP 13-3/4X17 (3X13-3/4"X17"-M2) AP NORMAL 3 BLADE 1
23 SWS 15-1/4X19R (EXPO (3X15-1/4"X19"-M) AP NORMAL 3 BLADE 1
24 PROPELLER (4X15"X23" (4X15"X23"-T) AP NORMAL 4 BLADE 1
24 PROPELLER (4X15"X22" (4X15"X22"-T) AP NORMAL 4 BLADE 1
24 PROPELLER (4X15"X21" (4X15"X21"-T) AP NORMAL 4 BLADE 1
