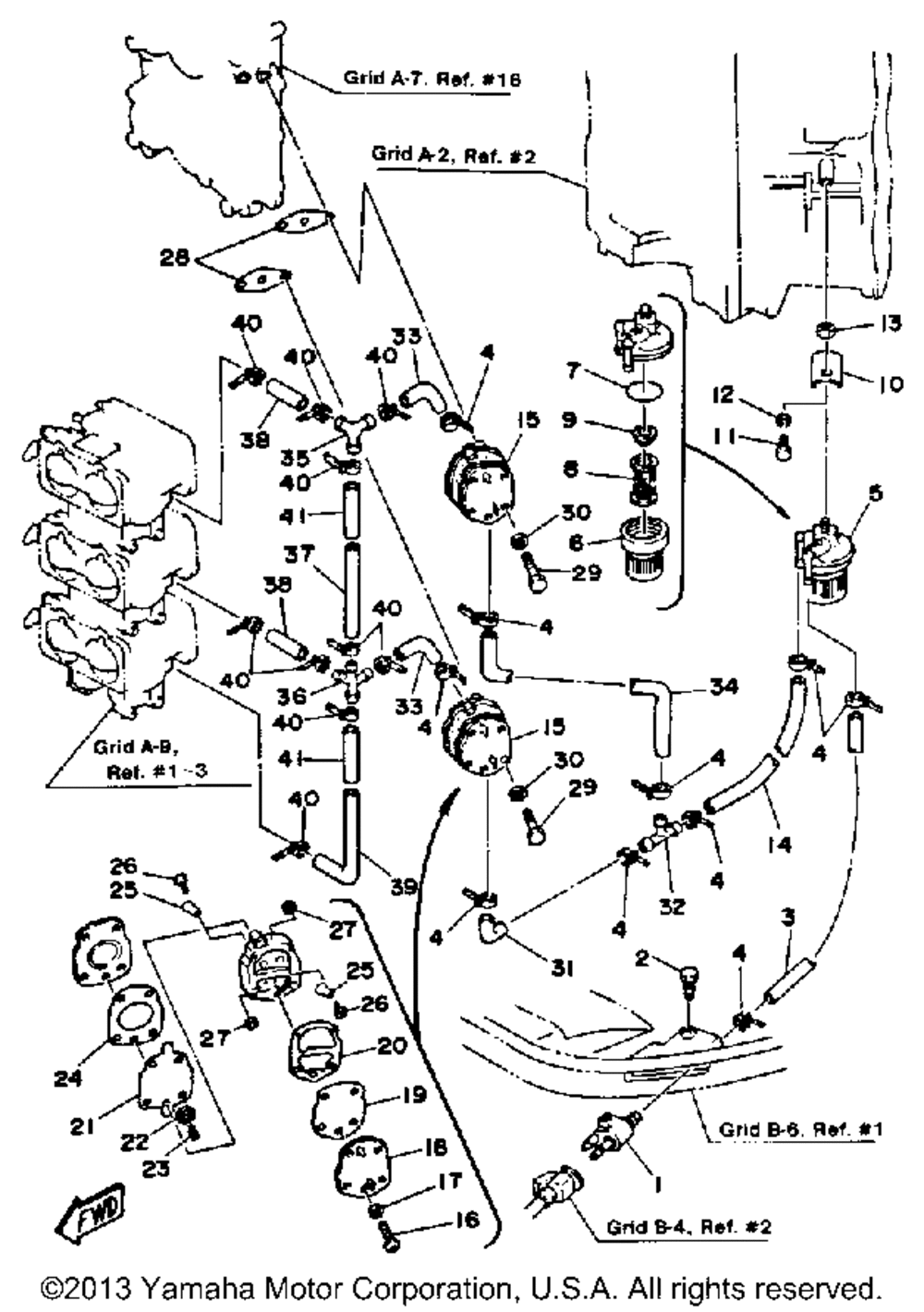

| № | Наименование | Примечание | Кол-во |
|---|---|---|---|
| 1 | FUEL PIPE JOINT 1 | 1 | |
| 2 | BOLT(7U8) (5 per pack) | 1 | |
| 3 | PIPE 3 | 1 | |
| 4 | CLAMP | 10 | |
| 5 | FILTER ASY | 1 | |
| 6 | CUPFILTER | 1 | |
| 7 | O-RING (5 per pack) | 1 | |
| 8 | ELEMENTFILTER | 1 | |
| 9 | GASKET | 1 | |
| 10 | BRACKET FILTER | 1 | |
| 11 | BOLT | 1 | |
| 12 | WASHER (5 per pack) | 1 | |
| 13 | NUT (6L2) | 1 | |
| 14 | PIPE 4 | 1 | |
| 15 | FUEL PUMP ASY | 2 | |
| 16 | SCREWPAN HEAD | 3 | |
| 17 | WASHER (5 per pack) | 3 | |
| 18 | BODY 2 | 1 | |
| 19 | DIAPHRGM | 1 | |
| 20 | GASKETBODY 2 | 1 | |
| 21 | DIAPHRAGM | 1 | |
| 22 | SEATSPRING | 1 | |
| 23 | SPRINGDIAPHRAGM | 1 | |
| 24 | GASKETBODY | 1 | |
| 25 | VALVECHECK | 4 | |
| 26 | SCREWPAN HEAD | 4 | |
| 27 | NUT | 4 | |
| 28 | GASKETFUEL PUMP 1 | 2 | |
| 29 | BOLT (661) | 4 | |
| 30 | WASHER (5 per pack) | 4 | |
| 31 | PIPE 5 | 1 | |
| 32 | PIPEJOINT 4 | 1 | |
| 33 | PIPE 6 | 2 | |
| 34 | PIPE 5 | 1 | |
| 35 | PIPEJOINT 1 | 1 | |
| 36 | PIPEJOINT 3 | 1 | |
| 37 | PIPE 7 | 1 | |
| 38 | HOSE(6K7) | 2 | |
| 39 | PIPEOIL | 1 | |
| 41 | HOSE (L60) | 2 |
