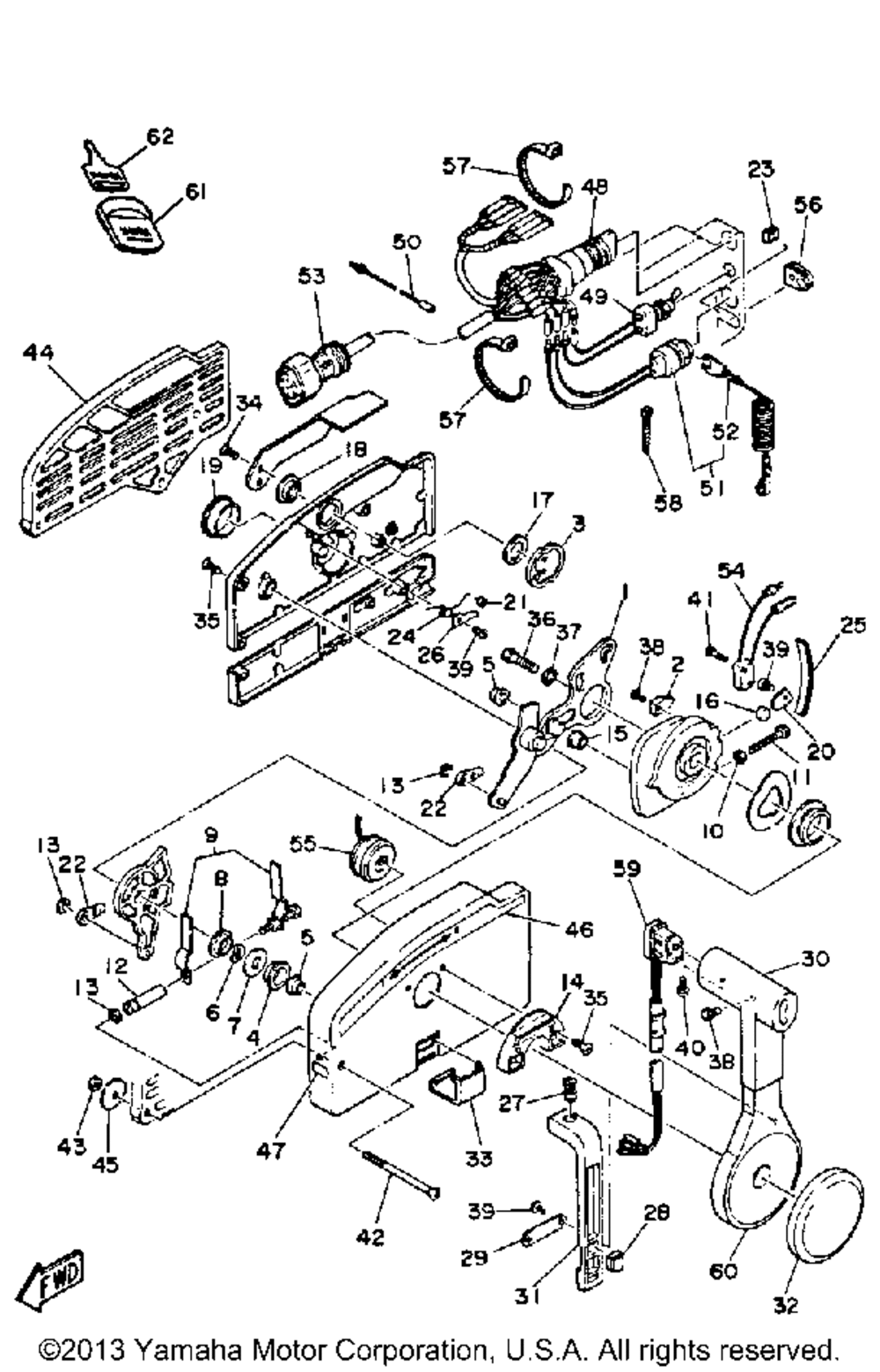

Yamaha L150ETXJ/L200ETXJ L150ETXJ/L200ETXJ REMOTE CONTROL COMPONENT PARTS (703 TYPE)
REMOTE CONTROL COMPONENT PARTS (703 TYPE)
№ Наименование Примечание Кол-во
1 ARMTHROTTLE (PULL 1
2 STAYNEUT SWITCH 1
3 . SHAFT FREE ACCEL. 1
4 . .BUSHING 1
5 BUSHING 5 2
6 WASHERWAVE 2 1
7 . .SPACER 1
8 BUSHING 4 1
9 . .FRICTION THROTTLE 1
10 NUT (5 per pack) 1
11 BOLT 1
12 . .SHAFT FRICTION 1
13 CIRCLIPE-TYPE 3
14 . .PLATE LOCK 1
15 . .ROLLER CAM 1
16 . .ROLLER FREE ACCEL. 1
17 . .WASHER WAVE 1
18 . .BUSHING 1
19 . .BUSHING 1 2
20 . .RETAINER 1
21 . .ROLLER DETENT 1
22 . .CABLE END REMOTE CONTROL 2 2
23 . .ANCHOR CABLE 1
24 . .SPRING FREE ACCEL. 1
25 . .SPRING DETENT 5
26 . .SPACER 1
27 . .SPRING NEUTRAL LOCK 1
28 CLAMP 1
29 PLATESTOPPER 1
30 GRIPCONTROL LEVER 1
31 LOCKNEUTRAL 1
32 COVER 1
33 COVERLEAD 1
34 SCREWFLAT HEAD 2
35 SCREWFLAT HEAD (10 per pack) 7
36 BOLT 1
37 WASHER (5 per pack) 1
38 SCREWPAN HEAD 2
39 SCREWPAN HEAD 4
40 SCREW PAN HEAD 1
41 SCREW 2
42 SCREW (M6) 3
43 NUT (5 per pack) 3
44 . SPACER REMOTE CONTROL 1
45 . .WASHER 3
46 GRAPHIC 1
47 MARK 1 1
48 MAIN SWITCH ASSY 1
49 SWITCH CHOKE 1
50 . . WIRE LEAD (L70) 1
51 . .ENGINE STOP SWITCH ASSY 1
52 EMERG.STOP LANYARD 1
53 . . EXTENSION WIRE HARNESS (4. 1
54 . .NEUTRAL SWITCH ASSY 1
55 BUZZER 1
56 . . GROMMET 1
57 Хомут 2
59 TRIM & TILT SWITCH A 1
60 GRIP 1
61 CAP KEY 1
62 O/M KEY tahos_451 UR 1
62 O/M KEY tahos_461 UR 1
62 O/M KEY tahos_463 UR 1
62 O/M KEY tahos_464 UR 1
62 O/M KEY tahos_465 UR 1
62 O/M KEY tahos_466 UR 1
62 O/M KEY tahos_467 UR 1
62 O/M KEY tahos_468 UR 1
62 O/M KEY tahos_469 UR 1
62 O/M KEY tahos_470 UR 1
62 O/M KEY tahos_459 UR 1
62 O/M KEY tahos_458 UR 1
62 O/M KEY tahos_457 UR 1
62 O/M KEY tahos_456 UR 1
62 O/M KEY tahos_460 UR 1
62 O/M KEY tahos_455 UR 1
62 O/M KEY tahos_454 UR 1
62 O/M KEY tahos_453 UR 1
62 O/M KEY tahos_452 UR 1
62 O/M KEY tahos_462 UR 1
