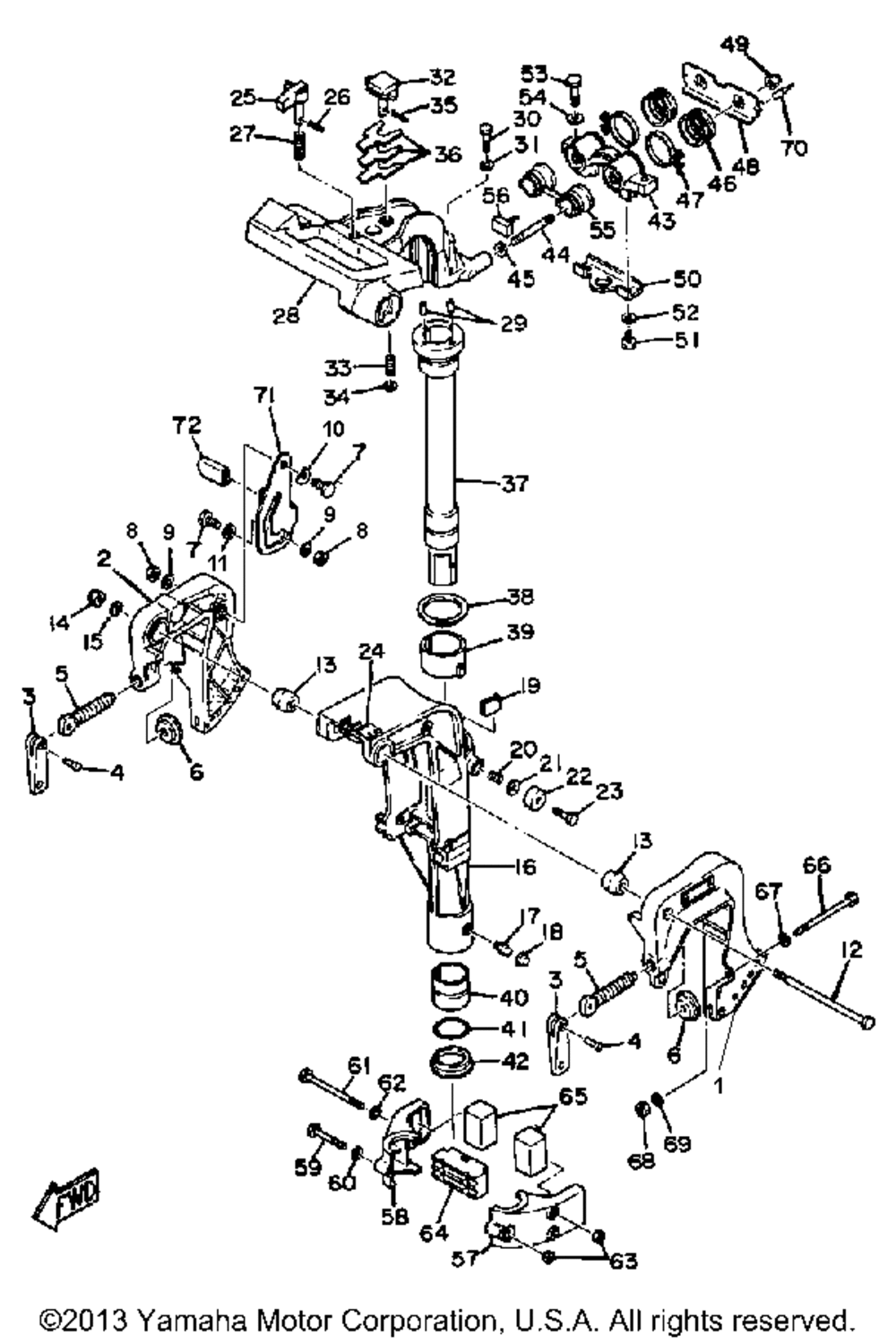

BRACKET 1 (FIG 12)

№	Наименование	Кол-во
1	BRACKETCLAMP	1
1	BRACKETCLAMP UR HARBOR WHITE	1
2	BRACKET CLAMP 2 U.R. FOR MMS	1
2	BRACKETCLAMP 2 U.R. FOR HW	1
3	HANDLETRANSOM CLP	2
3	HANDLETRANSOM CLP UR HARBOR WHITE	2
4	PIN	2
5	SCREWTRANSOM CLAM	2
6	PAD TRANSOM CLAMP	2
7	BOLT	2
8	NUTU	2
9	WASHER (5 per pack)	2
10	WASHER WAVE	1
11	WASHER	1
12	BOLT	1
13	PIECEFRICTION	2
14	NUT SELF-LOCKING	1
15	WASHERSPRING	1
16	BRACKETSWIVEL 1 UR LONG	1
16	BRACKETSWIVEL 1 UR HARBOR WHITE	1
17	NIPPLEGREASE	1
18	CAPGREASE NIPPLE	1
19	PIECEFRICTION	1
20	SPRING COMPRESSION	1
21	WASHERPLATE	1
22	SEAL	1
23	BOLT	1
24	INDICATORTILT	1
25	KNOBSTEERING LOCK EH	1
26	PINSPRING	1
27	SPRINGCOMPRESSION EH	1
28	BRACKET STEERING	1
29	PINDOWEL	2
32	WASHERTHRUST 1	1
33	SPRINGCOMPRESSION	1
34	WASHER (5 per pack)	1
35	PINSPRING	1
36	WASHERPLAIN U.N.	1
37	SHAFTSTEERING PIV UR L (22.0")	1
38	WASHERSPEC'L SHAP	1
39	BUSHINGPIVOT SHAF	1
40	BUSHSPEC'L NYLON	1
41	O-RING (5 per pack)	1
42	BUSHSPEC'L NYLON	1
43	MOUNT RUBBER	1
44	BOLTSTUD	2
45	. .WASHER PLATE	2
46	SEAL 2	2
47	CLAMPHOSE	2
48	BRACKET COMP.1	1
50	PLATE 1	1
51	BOLT	2
53	BOLT	2
55	SEAL 1	1
56	STOPPERUPPER MT.R	1
57	HOUSINGLWRMOUNT UR HARBOR WHITE	1
58	HOUSINGLWR.MNT. UR HARBOR WHITE	1
59	BOLT (6G8)	1
61	BOLT (6G8)	2
63	NUT	3
64	MT.DAMPER LR.FRONT	1
66	BOLT	2
69	WASHER PLATE	2
70	DUMPERUPPER MNTR	2
71	LEVER TILT STOP	1
72	COVER	1
