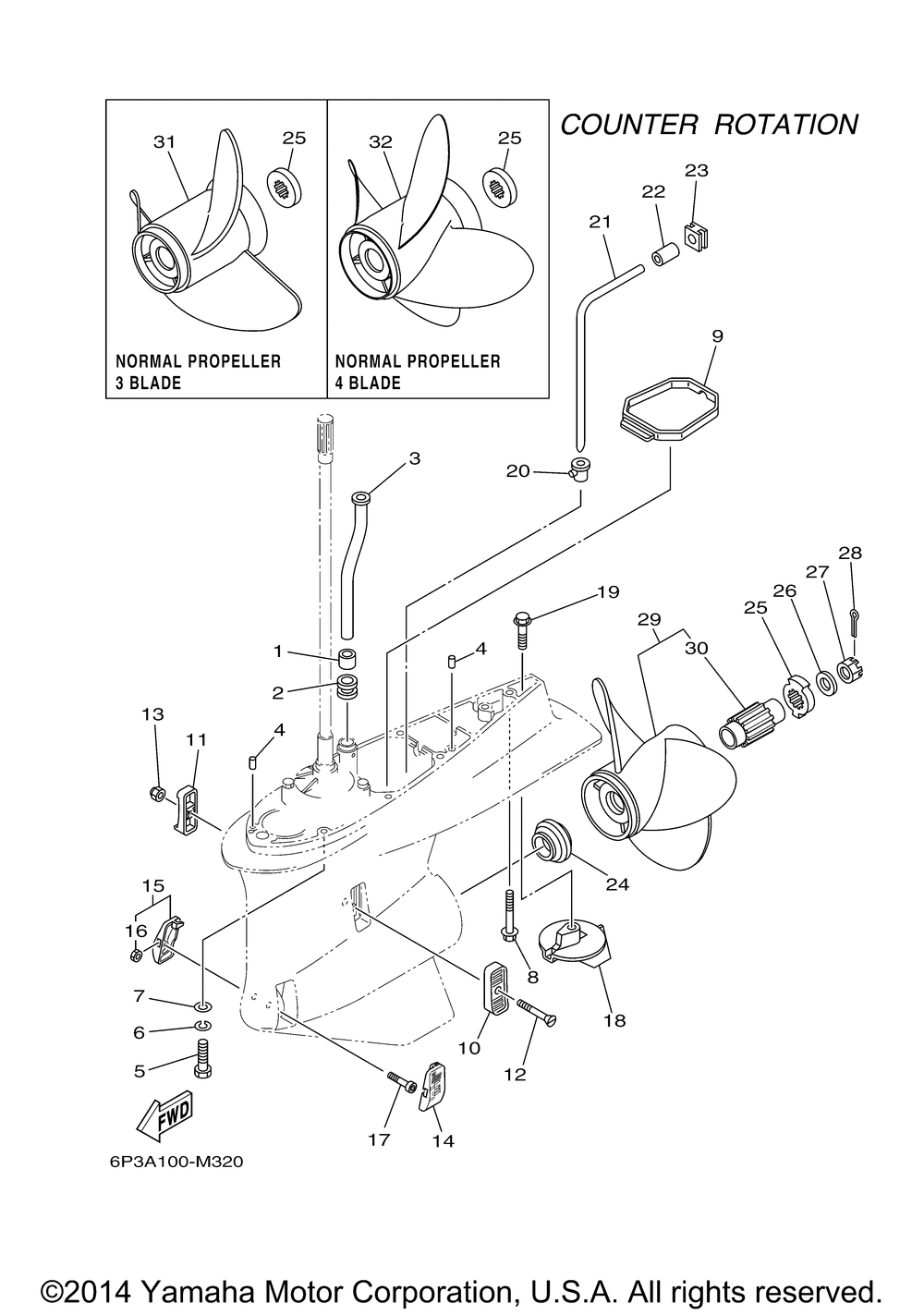

Yamaha LF250XA/LF250UA 0113 LF250XA/LF250UA 0113 LOWER CASING DRIVE 4
LOWER CASING DRIVE 4
№ Наименование Примечание Кол-во
1 WATER SEAL 1
2 WATER SEAL 1
3 TUBE WATER 1 X(25.3") 1
3 TUBE WATER U(30.3") 0
4 PINDOWEL (5 per pack) 2
5 BOLT 7
6 WASHER 7
7 WASHER 7
8 BOLT WITH WASHER 1
8 BOLT WITH WASHER 0
9 DAMPER SEAL 1
10 COVER WATER INLET 1 1
11 COVER WATER INLET 2 1
12 SCREW COUNTERSUNK 1
13 NUTSELF-LOCKING 1
14 COVER WATER INLET 3 1
15 COVER WATER INLET 4 1
17 BOLT HEXAGON SOCKET 1
18 TRIM-TAB 1
19 BOLTWASHER BASED 1
20 DAMPER WATER SEAL 1
21 TUBE WATER 1
22 DAMPER WATER SEAL 1 1
23 DAMPER WATER SEAL 1
24 SPACER 1
25 SPACER 2 1
25 SPACER SDS PROPS FOR SDS PROP. 1
26 WASHER 1
27 NUTCASTLE 1
28 PINCOTTER (5 per pack) 1
29 SWS2 W/SDS (3X15-1/2 (3X15-1/2"X17"-TL) UR SDS 3 BLADE 1
29 SWS2 W/SDS (3X15-3/4 (3X15-3/4"X15"-TL) UR SDS 3 BLADE 1
29 SWS2 W/SDS (3X14-3/4 (3X14-3/4"X23"-TL) UR SDS 3 BLADE 1
29 PROPELLER (3X15"X21"-TL) 1
29 PROPELLER (3X15-1/4"X19"-TL) 1
29 PROPELLER (3X15-1/4"X18"-TL) 1
29 PROPELLER (3X15"X20"-TL) 1
29 SWS2 W/SDS (3X15-3/4 (3X15-3/4"X13"-TL) UR SDS 3 BLADE 1
30 DAMPER FOR 6CE/F PRO 1
31 PROPELLER (3X14-1/2"X21"-TL) 1
31 PROPELLER (3X15-1/4"X15"-ML) 1
31 PROPELLER (3X15-1/4"X17"-ML) 1
31 SS PROP 14-1/2X19 L (3X14-1/2"X19"-TL) AP NORMAL PROP 1
31 PROPELLER (3X15"X17"-TL) 1
31 SWSII PROP15X21L (3X15"X21"-TL) AP NORMAL 3 BLADE 1
31 PROPELLER (3X15-1/4"X19"-TL) 1
31 PROPELLER (3X15-1/4"X15"-ML) 1
31 PROPELLER (3X13-3/4"X21"-ML) 1
31 PROPELLER (3X13-3/4"X19"-ML1) 1
31 PROPELLER (3X13-3/4"X17"-ML1) 1
31 PROPELLER (3X15-1/2"X17"-TL) 1
31 PROPELLER (3X15-1/4"X19"-ML) 1
31 PROPELLER (3X14-7/8"X21"-ML) 1
31 PROPELLER (3X14-1/2"X23"-ML) 1
32 PROPELLER (4X15"X23"-TL) 1
32 PROPELLER (4X15"X21"-TL) 1
32 PROPELLER (4X15"X22"-TL) 1
