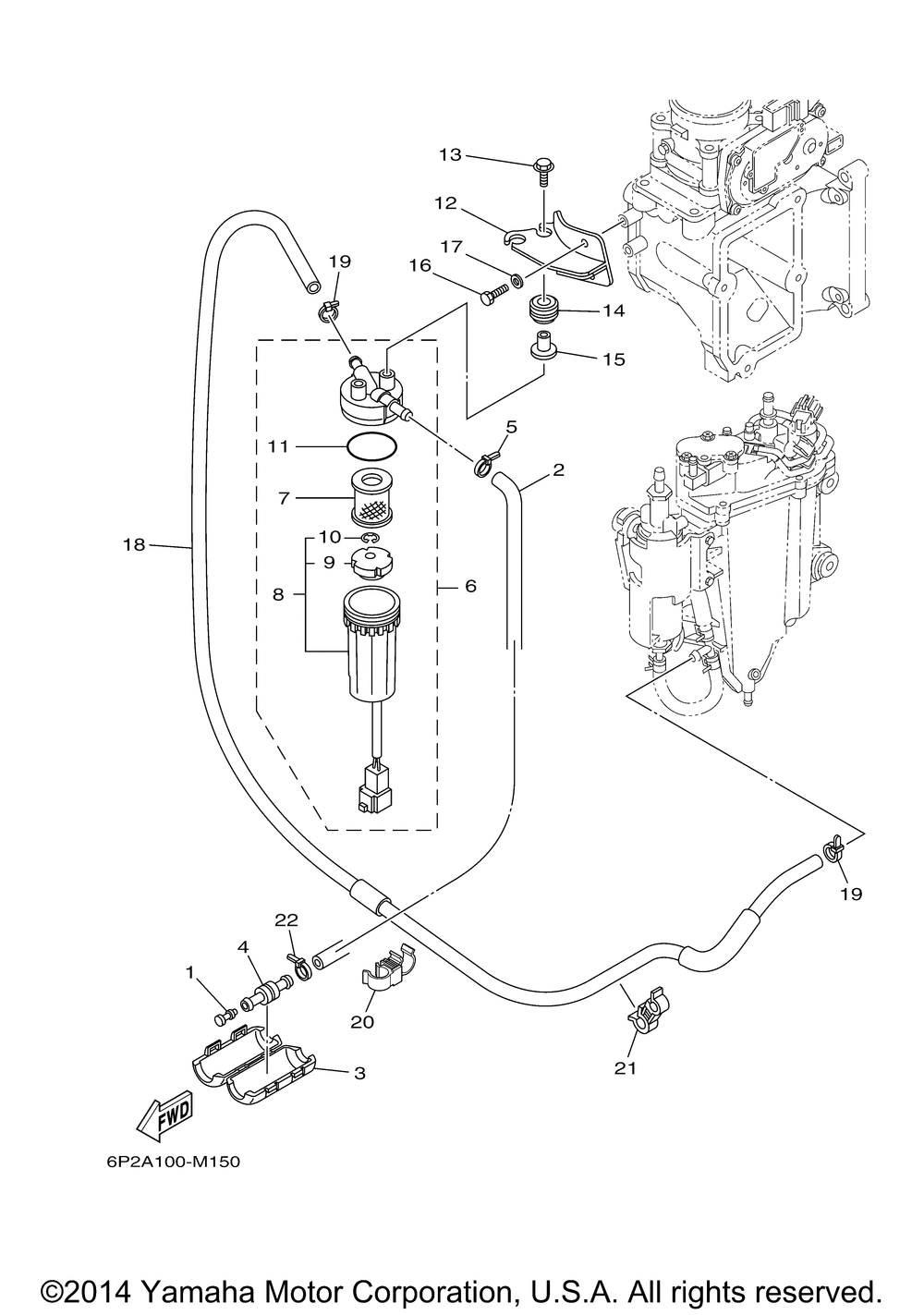

| № | Наименование | Примечание | Кол-во |
|---|---|---|---|
| 1 | DAMPER | 1 | |
| 2 | PIPE 4 | 1 | |
| 3 | COVER | 1 | |
| 4 | PIPE JOINT 2 | 1 | |
| 5 | CLAMP | 1 | |
| 6 | FILTER ASSY | 1 | |
| 9 | FLOAT WATER LEVEL | 1 | |
| 10 | CLIP | 1 | |
| 11 | GASKET | 1 | |
| 12 | BRACKET FILTER | 1 | |
| 13 | BOLTWITH WASHER | 2 | |
| 14 | GROMMET | 2 | |
| 15 | COLLAR | 2 | |
| 16 | BOLT | 2 | |
| 17 | WASHER (5 per pack) | 2 | |
| 18 | PIPE 3 | 1 | |
| 20 | CLAMP | 1 | |
| 21 | CLAMP | 1 |
