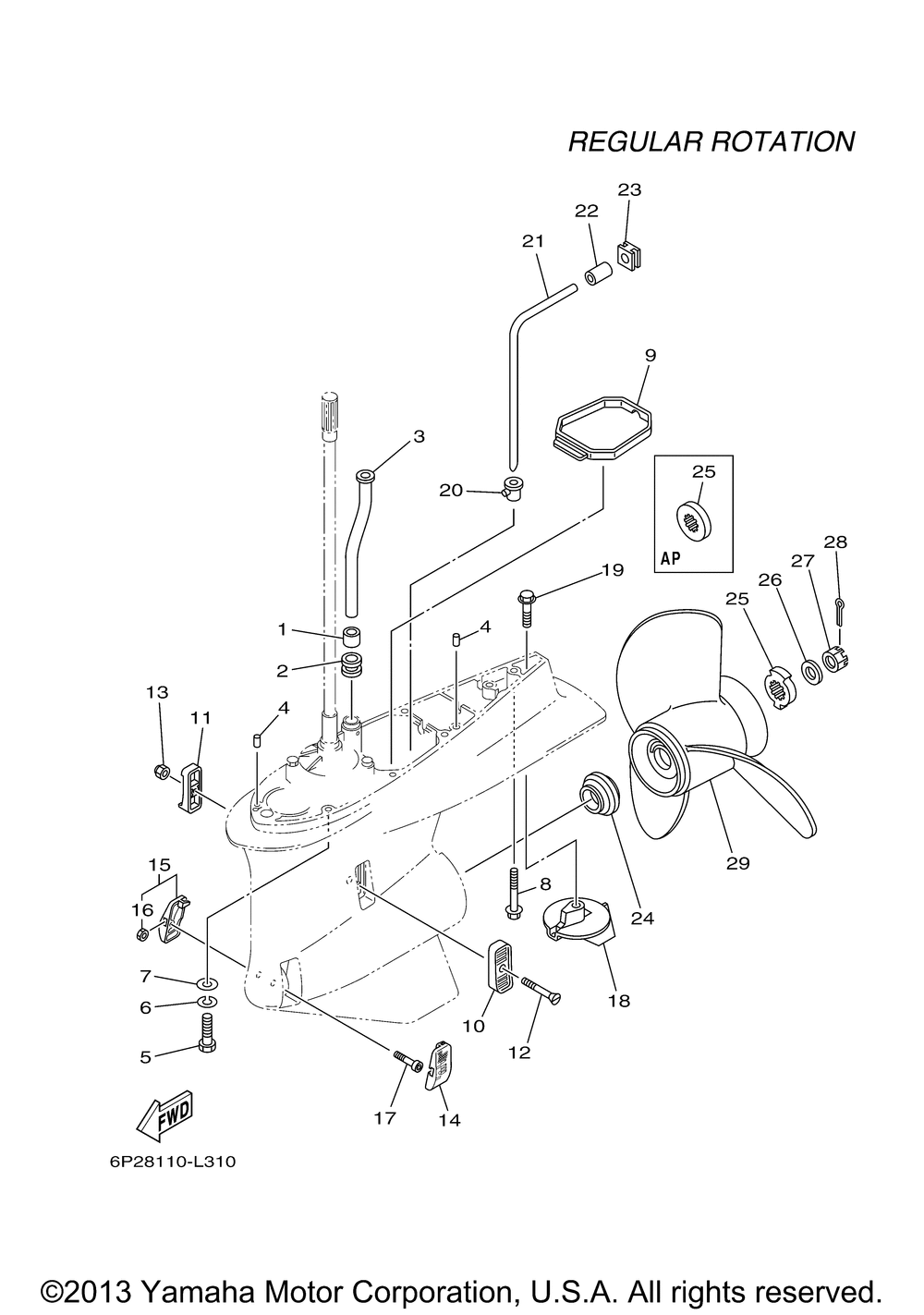

Yamaha F250TXR/F250TUR 0411 F250TXR/F250TUR 0411 LOWER CASING DRIVE 2
LOWER CASING DRIVE 2
№ Наименование Примечание Кол-во
1 WATER SEAL 1
2 WATER SEAL 1
3 TUBE WATER U(30.3") 0
3 TUBE WATER 1 X(25.3") 1
4 PINDOWEL (5 per pack) 2
5 BOLT 7
6 WASHER 7
7 WASHER 7
8 BOLT WITH WASHER 1
8 BOLT WITH WASHER 0
9 DAMPER SEAL 1
10 COVER WATER INLET 1 1
11 COVER WATER INLET 2 1
12 SCREW COUNTERSUNK 1
13 NUTSELF-LOCKING 1
14 COVER WATER INLET 3 1
15 COVER WATER INLET 4 1
17 BOLT HEXAGON SOCKET 1
18 TRIM-TAB 1
19 BOLTWASHER BASED 1
20 DAMPER WATER SEAL 1
21 TUBE WATER 1
22 DAMPER WATER SEAL 1 1
23 DAMPER WATER SEAL 1
24 SPACER 1
25 SPACER SDS PROPS FOR SDS PROP. 1
25 SPACER 2 1
26 WASHER 1
27 NUTCASTLE 1
28 PINCOTTER (5 per pack) 1
29 SS PROP 14-1/2X21 (3X14-1/2"X21"-T) AP NORMAL 3 BLADE 1
29 SS PROP 14-1/2X19 (3X14-1/2"X19"-T) AP NORMAL PROP. 1
29 SS PROP 15X17 (3X15"X17"-T) AP NORMAL 3 BLADE 1
29 SS PROP 13-3/4X17 (3X13-3/4"X17"-M2) AP NORMAL 3 BLADE 1
29 SS PROP 13-3/4X21 (3X13-3/4"X21"-M) AP NORMAL 3 BLADE 1
29 SS PROP 15-1/4X15 (3X15-1/4"X15"-M) AP NORMAL 3 BLADE 1
29 SWS 15-1/4X19R (EXPO (3X15-1/4"X19"-M) AP NORMAL 3 BLADE 1
29 SWS 14-7/8X21R (EXPO (3X14-7/8"X21"-M) AP NORMAL 3 BLADE 1
29 SS PROP14-1/2X23R (3X14-1/2"X23"-M) AP NORMAL 3 BLADE 1
29 SWS15-1/4X15R(FOR EX (3X14-1/2"X15"-M) AP NORMAL 3 BLADE 1
29 SWS15-1/4X17R(ONLY F (3X15-1/4"X17"-M) AP NORMAL 3 BLADE 1
29 SWSII PROP15-1/2X17 (3X15-1/2"X17"-T) AP NORMAL 3 BLADE 1
29 SWSII PROP15X21R (3X15"X21"-T) AP NORMAL 3 BLADE 1
29 SWSII PROP15-1/4X19 (3X15-1/4"X19"-T) AP NORMAL 3 BLADE 1
29 PROPELLER (4X15"X21" (4X15"X21"-T) AP NORMAL 4 BLADE 1
29 SS PROP 13-3/4X19 (3X13-3/4"X19"-M2) AP NORMAL 3 BLADE 1
29 PROPELLER (4X15"X23" (4X15"X23"-T) AP NORMAL 4 BLADE 1
29 PROPELLER (4X15"X22" (4X15"X22"-T) AP NORMAL 4 BLADE 1
