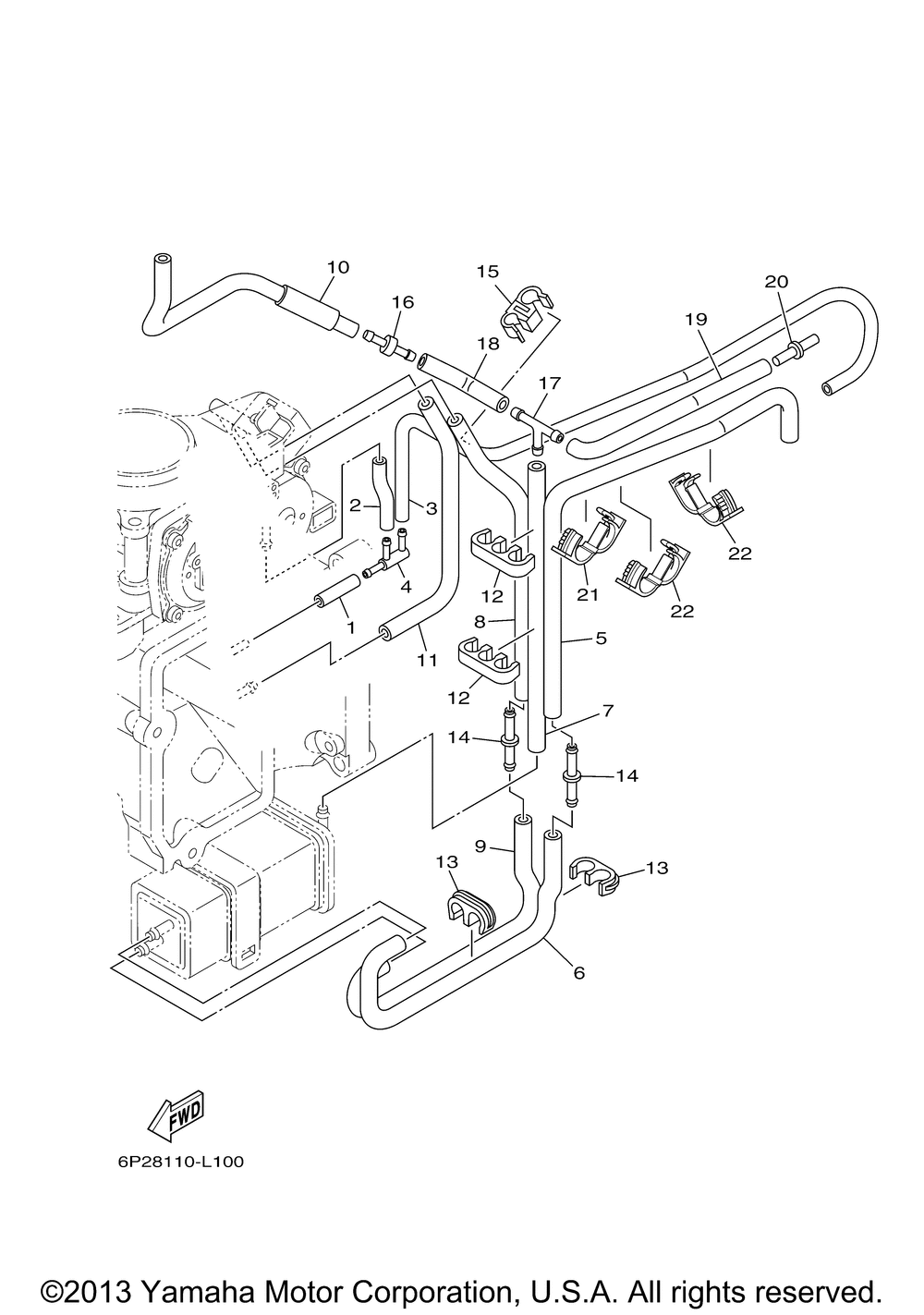

| № | Наименование | Примечание | Кол-во |
|---|---|---|---|
| 1 | PIPE | 1 | |
| 2 | HOSE VACUUM SENSING | 1 | |
| 3 | HOSE VACUUM SENSING 3 | 1 | |
| 4 | JOINT | 1 | |
| 5 | PIPE 1 | 1 | |
| 6 | PIPE 2 | 1 | |
| 7 | HOSE 1 | 1 | |
| 8 | PIPE 3 | 1 | |
| 9 | PIPE 4 | 1 | |
| 10 | HOSE 2 | 1 | |
| 11 | HOSE | 1 | |
| 12 | CLAMP 1 | 2 | |
| 13 | CLAMP 2 | 2 | |
| 14 | PIPE JOINT | 2 | |
| 15 | CLAMP 3 | 1 | |
| 16 | BREATHER | 1 | |
| 17 | PIPEJOINT 4 | 1 | |
| 18 | HOSE 3 | 1 | |
| 19 | HOSE AIR 4 | 1 | |
| 20 | PIPE JOINT 1 | 1 | |
| 21 | CLAMP | 1 |
