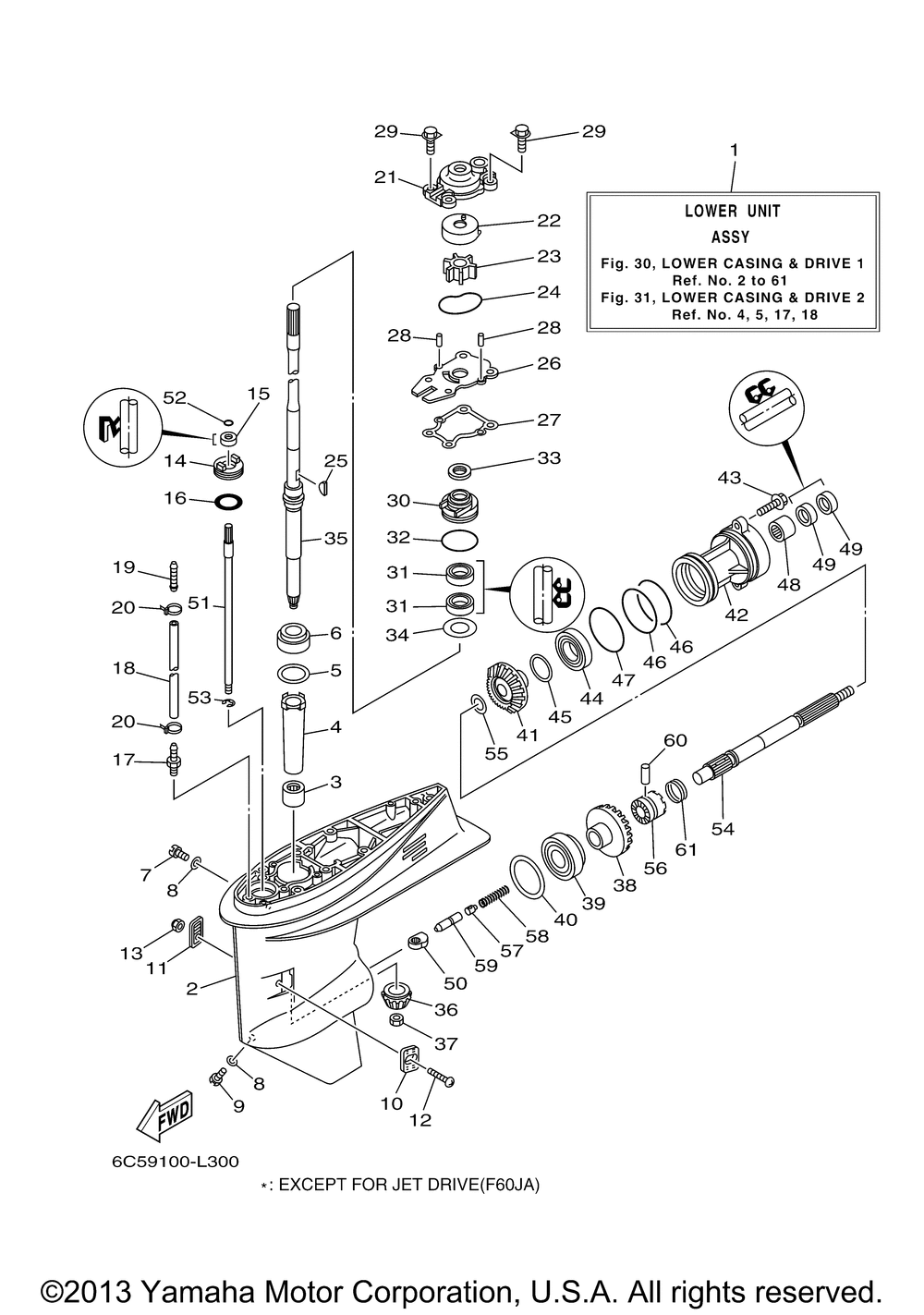

LOWER CASING DRIVE 1

Корзина пуста
Наименование Примечание Кол-во
1 LOWER UNIT ASSY L(20.7") 1
2 CASING LOWER 1
3 BEARING 1
4 SLEEVE DRIVE SHAFT 1
5 SHIM (T:0.40MM) 1
5 SHIM (T:0.12MM) 1
5 SHIM (T:0.18MM) 1
5 SHIM (T:0.15MM) 1
5 SHIM (T:0.30MM) 1
5 SHIM (T:0.10MM) 1
5 SHIM (T:0.50MM) 1
6 Подшипник 1
7 PLUG STRAIGHT SCREW 1
8 GASKET (USA) 2
9 PLUG DRAIN 1
10 COVER WATER INLET 1 1
11 COVER WATER INLET 2 1
12 SCREW COUNTERSUNK 1
13 NUT (5 per pack) 1
14 PLATE 1
15 OIL SEALDD-TYPE 1
16 . .O-RING 1
17 NIPPLEHOSE 1
18 HOSE (L80) L(20.3") 1
19 ENDNIPPLE 1
20 CLAMP 2
21 HOUSINGWATER PUMP 1
22 . .INSERT CARTRIDGE 1
23 . .IMPELLER 1
24 . .O-RING 1
25 KEYWOODRUFF 1
26 OUTER PLATECART. 1
27 . .GASKET WATER PUMP 1
28 PIN DOWEL 2
29 . .BOLT WITH WASHER 4
30 HOUSING WATER PUMP 1
31 OIL SEALS-TYPE 2
32 . .O-RING 1
33 COVEROIL SEAL 1
34 WASHER PLATE 1
35 DRIVE SHAFT COMP. L(20.7") 1
36 PINION (13T) 1
37 NUTHEXAGON 1
38 GEAR (24T) 1
39 BEARING 1
40 SHIM (T:0.30MM) 1
40 SHIM (T:0.50MM) 1
40 SHIM (T:0.18MM) 1
40 SHIM (T:0.15MM) 1
40 SHIM (T:0.12MM) 1
40 SHIM (T:0.10MM) 1
40 SHIM (T:0.40MM) 1
41 GEAR (24T) 1
42 CAP LOWER CASING 1
43 BOLTWASHER BASED 2
44 BEARING 1
45 SHIM (T:0.15MM) 1
45 SHIM (T:0.18MM) 1
45 SHIM (T:0.30MM) 1
45 SHIM (T:0.50MM) 1
45 SHIM (T:0.40MM) 1
45 SHIM (T:0.10MM) 1
45 SHIM (T:0.12MM) 1
46 O-RING 2
47 .O-RING 1
48 BEARINGCYL.tahos_17 1
49 . .OIL SEAL 2
50 CAM SHIFT 1
51 RODSHIFT 2 1
52 O-RING 1
53 CIRCLIP 1
54 SHAFTPROPELLER 1
55 WASHER PLATE 1
56 CLUTCH DOG 1
57 SLIDESHAFT 1
58 SPRING COMPRESSION 1
59 PLUNGERSHIFT 1
60 PIN STRAIGHT 1
61 RING CROSS PIN 1
