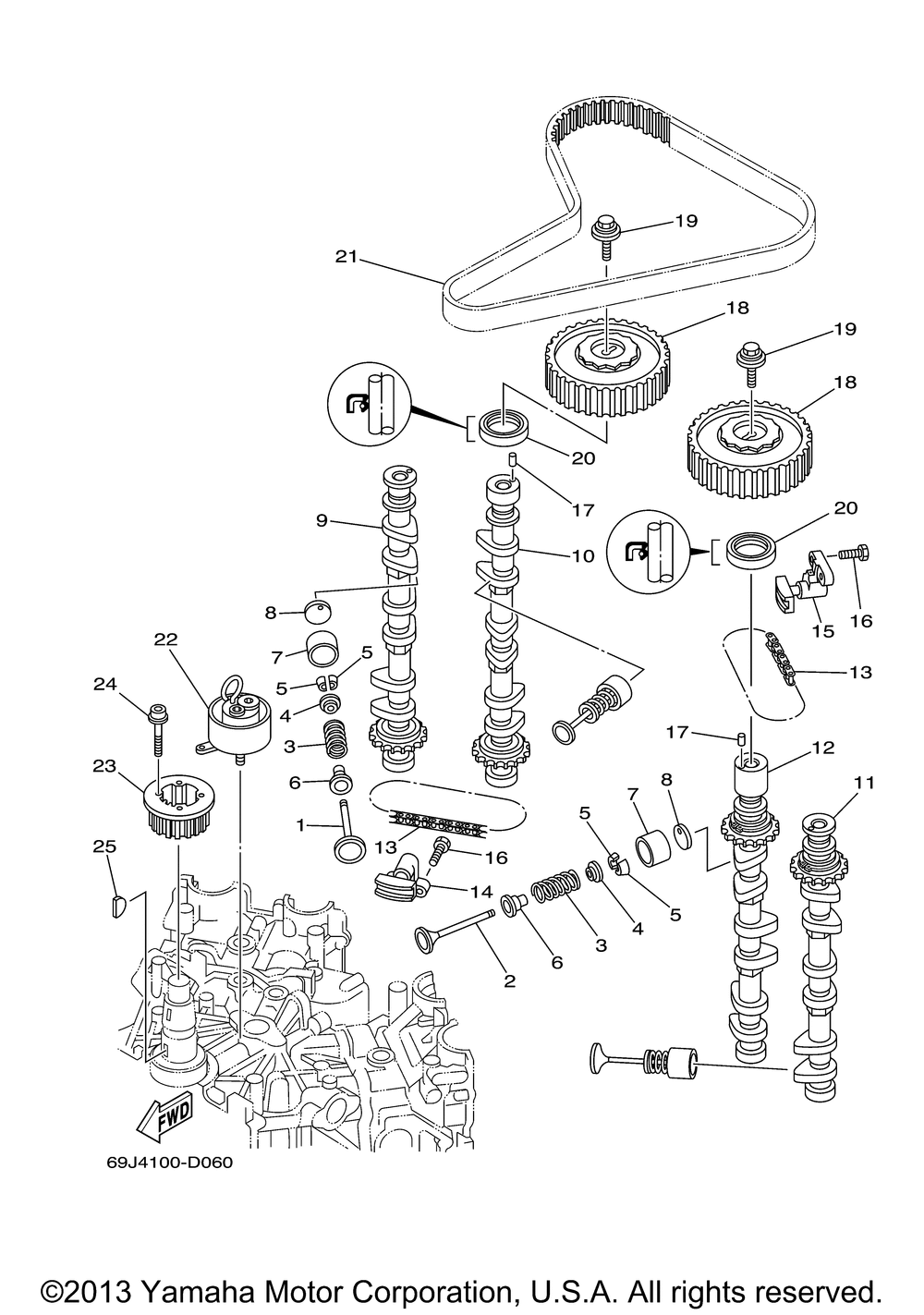

Yamaha LF225TXR 0409 LF225TXR 0409 VALVE
VALVE
№ Наименование Примечание Кол-во
1 VALVE INTAKE 12
2 VALVE EXHAUST 12
3 SPRING VALVE INNER 24
4 RETAINER VALVE SPRI 24
5 COTTER VALVE 48
6 SEAL VALVE STEM 24
7 LIFTER VALVE 24
8 PAD ADJUSTING (2.76 (2.760) UR 24
8 PAD ADJUSTING (2.78 (2.780) UR 24
8 PAD ADJUSTING (2.80 (2.800) UR 24
8 PAD ADJUSTING (2.52 (2.520) UR 24
8 PAD ADJUSTING (2.82 (2.820) UR 24
8 PAD ADJUSTING (2.84 (2.840) UR 24
8 PAD ADJUSTING (2.86 (2.860) UR 24
8 PAD ADJUSTING (2.88 (2.880) UR 24
8 PAD ADJUSTING (2.90 (2.900) UR 24
8 PAD ADJUSTING (2.92 (2.920) UR 24
8 PAD ADJUSTING (2.96 (2.960) UR 24
8 PAD ADJUSTING (2.32 (2.320) UR 24
8 PAD ADJUSTING (2.34 (2.340) UR 24
8 PAD ADJUSTING (2.36 (2.360) UR 24
8 PAD ADJUSTING (2.38 (2.380) UR 24
8 PAD ADJUSTING (2.40 (2.400) UR 24
8 PAD ADJUSTING (2.42 (2.420) UR 24
8 PAD ADJUSTING (2.44 (2.440) UR 24
8 PAD ADJUSTING (2.46 (2.460) UR 24
8 PAD ADJUSTING (2.48 (2.480) UR 24
8 PAD ADJUSTING (2.50 (2.500) UR 24
8 PAD ADJUSTING (2.94 (2.940) UR 24
8 PAD ADJUSTING (2.54 (2.540) UR 24
8 PAD ADJUSTING (2.56 (2.560) UR 24
8 PAD ADJUSTING (2.58 (2.580) UR 24
8 PAD ADJUSTING (2.60 (2.600) UR 24
8 PAD ADJUSTING (2.62 (2.620) UR 24
8 PAD ADJUSTING (2.64 (2.640) UR 24
8 PAD ADJUSTING (2.66 (2.660) UR 24
8 PAD ADJUSTING (2.68 (2.680) UR 24
8 PAD ADJUSTING (2.70 (2.700) UR 24
8 PAD ADJUSTING (2.72 (2.720) UR 24
8 PAD ADJUSTING (2.74 (2.740) UR 24
9 CAMSHAFT 1 1
10 CAMSHAFT 2 1
11 CAMSHAFT 3 1
12 CAMSHAFT 4 1
13 CHAIN 2
14 TENSIONER ASSY CAM 1
15 TENSIONER ASSY CAM 1
16 BOLT (661) 4
17 PINDOWEL (5 per pack) 2
18 GEAR DRIVEN 2
19 BOLT 2
20 OIL SEAL 2
21 V-BELT 1
22 TENSIONER ASSY 1
23 GEAR DRIVE 1
24 BOLT HEXAGON SOCKET 4
25 KEYWOODRUFF 1
