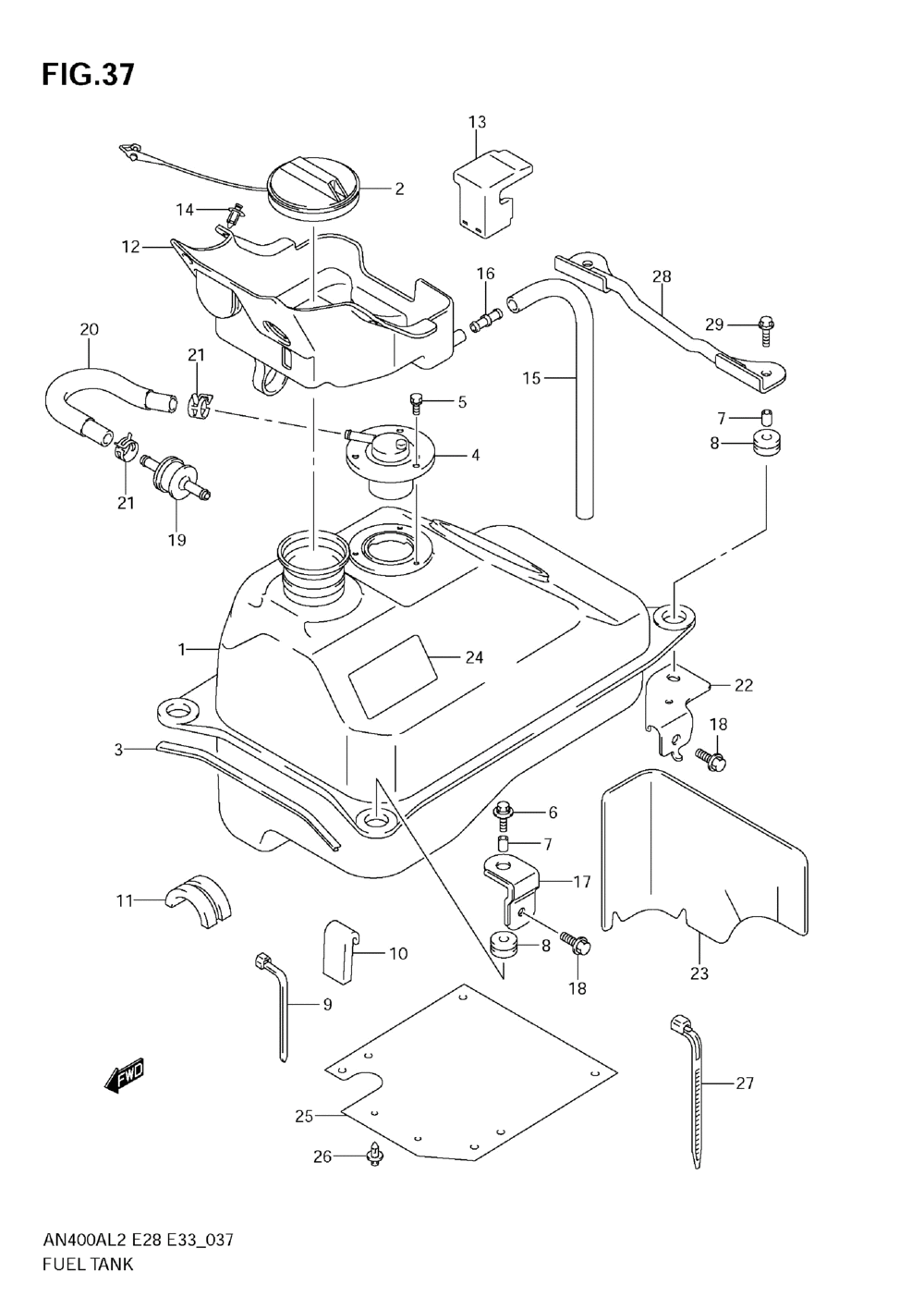

| № | Наименование | Примечание | Кол-во |
|---|---|---|---|
| 1 | TANK COMPFUEL | 1 | |
| 2 | CAP SET FUEL TANK | 1 | |
| 3 | MOLDING | 2 | |
| 4 | VALVE FUEL CUT | 1 | |
| 5 | BOLT | 3 | |
| 6 | BOLT (6X25) | 1 | |
| 7 | SPACER (6.5X9X12.5) | 3 | |
| 8 | CUSHIONFUEL TA | 4 | |
| 9 | CLAMP | 1 | |
| 10 | CUSHION TANK LOWER LH | 1 | |
| 11 | CUSHION TANK LOWER | 1 | |
| 12 | TRAY TANK INLET | 1 | |
| 14 | CLIP | 2 | |
| 15 | HOSE (7X10.2X600) | 1 | |
| 16 | JOINT | 1 | |
| 17 | BRACKET TANK FRONT | 1 | |
| 18 | BOLT | 2 | |
| 19 | CHECK VALVE 2WAY | 1 | |
| 20 | HOSE CHECK VALVE | 1 | |
| 21 | (CA) CLIP | 2 | |
| 26 | КЛИПСА 09409-063145PK | 4 | |
| 27 | CLAMPWIRING HA | 2 | |
| 29 | BOLT | 2 |
