Arctic Cat XF 9000 CROSS COUNTRY LTD 137 GREEN XF 9000 CROSS COUNTRY LTD 137 GREEN FRONT FRAME ASSEMBLY

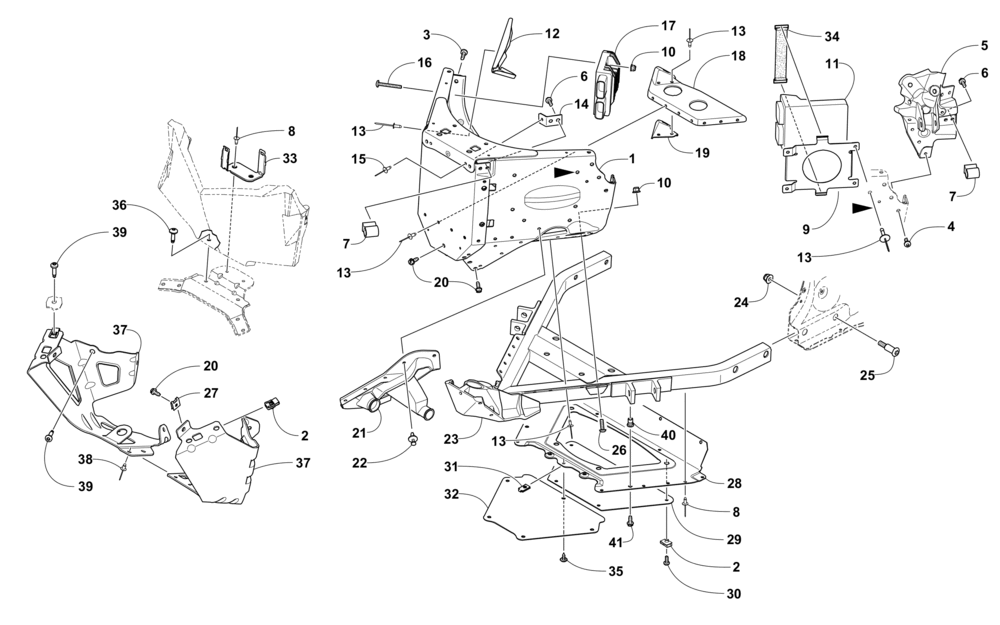

FRONT FRAME ASSEMBLY
№ Наименование Примечание Кол-во
1 PANELFRT-ASSY-PTD BLK(10MM TURBO) (inc. eight No. 2 and 3-5) 1
2 CLIPU-NUT M6 (5 per pack) 15
3 SCREWTAPTITE-TSPNH M6 X 1 X 20 Z&B (4 per pack) 1
4 SCREWTAPTITE-TSPNH M6 X 1 X 16 Z&B (10 per pack) 10
5 HOUSINGA-ARM/SHOCK MTG-RH-PTD BLK 1
5 HOUSINGA-ARM/SHOCK MTG-LH-PTD BLK 1
6 SCREWCAP-HFH M6X1.0X16 CL10.9 W/2353 (8 per pack) 8
7 BRKTMTG-UPPER A-ARM-M6 X 1 THDS 4
8 RIVETBLIND-DH SS64 ZINC (10 per pack) 0
9 BRKTMTG-ECM 1
10 NUTHEX FLG-NYL LOCK M6X1.0 CL8 Z&Y (5 per pack) 4
11 ECMPROGRAMMED-9T/2.86P-9000 1
12 BRKTMTG-STEERING STOP 1
13 RIVETBLIND-DH SS64 BLK (10 per pack) 0
14 GUSSETMTG BRKT-UPR A-ARM 2
15 RIVET3/16 HUCK-M6 (5 per pack) 2
16 SCREWMACH-TSTRH M6X1.0X25 Z&BLK (5 per pack) 2
17 REGULATORVOLTAGE (45-AMP) 1
18 BRKTMTG-STEERING POST-LWR 1
19 BRKTMTG-STEERING POST BRACE-LWR 1
20 SCREWSELF TAP 1/4-20X5/8 TYPE F BLK (5 per pack) 3
21 BOOTSTEERING-RH 1
21 BOOTSTEERING-LH 1
22 RIVETPLASTIC-REINSTALLABLE (5 per pack) 16
23 Frame Front - Lower - Black 1
24 NUTHEX FLG-NYL LOCK M8X1.25 CL8 Z&Y 4
25 SCREWSHOULDER-HSTRH M8 X 1.25 X 44.16 (4 per pack) 4
26 SCREWMACH-TSPNH M6X1.0X20 CL8.8 BLK 2
27 NUTSPEED-tahos_10 B "U" TYPE (2 per pack) 2
28 BELLYPANCENTER-STAMPED-4 STRK 1
29 PANELACCESS 1
30 SCREWMACH-TSPNH M6X1.0X16 CL8.8 W/2353 (4 per pack) 4
31 NUTU (2 per pack) 1
32 PANELACCESS 1
33 BRKTPDM-4 STRK 1
34 STRAPECM MOUNTING 1
35 SCREWSELF TAP-TSTRH-tahos_10-12X5/8TP A BLK (5 per pack) 3
36 SCREWSHOULDER-TSBH-M6-1.0 X 23-BLK MPT (2 per pack) 2
37 BRKTMTG-BUMPER-RH-PTD BLK 1
37 BRKTMTG-BUMPER-LH-PTD BLK 1
38 RIVET3/16 HUCK-M5 (10 per pack) 1
39 SCREWMACH-TSPNH-M6X1X20-MPT-BLK W/2353 (5 per pack) 6
40 INSERTM5X0.8-AL SERIES ALS4-580-3.3 (2 per pack) 2
41 SCREWMACH-TSTRH M5X0.8X20 Z&Y (2 per pack) 2
