Arctic Cat F570 GREEN F570 GREEN HOOD WINDSHIELD AND FRONT BUMPER ASSEMBLY

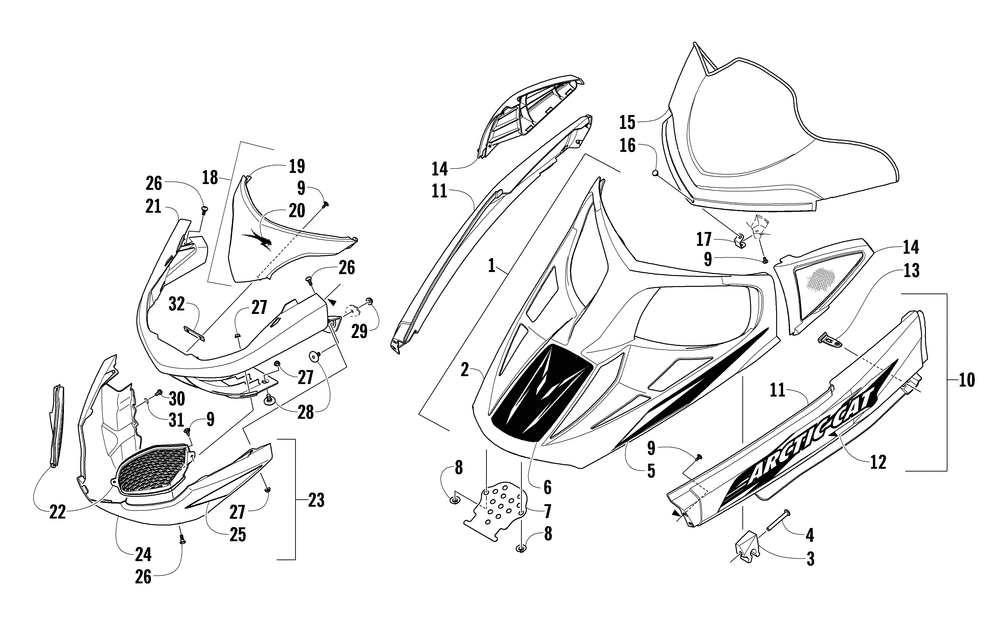

HOOD WINDSHIELD AND FRONT BUMPER ASSEMBLY
№ Наименование Примечание Кол-во
1 LID HOOD-GRN-W/DECALS Green (inc. 2-6) 1
2 LID HOOD-GRN-MFG ASSY-W/O VENTS Green (inc. 3-4) 1
3 CLIPRUBBER-HOOD-HOLDDOWN-RH 1
3 CLIPRUBBER-HOOD-HOLDDOWN-LH 1
4 PINRETAINING-HOOD (2 per pack) 2
5 DECALHOOD LID-GRN LH 1
5 DECALHOOD LID-GRN RH 1
6 DECALHOOD-GRN CREST 1
7 BRKT LID HINGE-08 PROD 1
8 NUTSTAMPED- 0.330 (4 per pack) 4
9 SCREWSELF TAP-TXSTRH tahos_10-12X5/8 TP A BL (5 per pack) 11
10 SPARFRONT-LH-BLK-W/DECALS (inc. 14 and 16) 1
10 SPARFRONT-RH-BLK/GRN-W/DECALS F/C (inc. 11-12) 1
11 SPARFRONT-RH-MOLD BLK Black 1
11 SPARFRONT-LH-MOLD BLK Black 1
12 DECALFRT SPAR-GRN LH-"ARCTIC CAT" 1
12 DECALFRT SPAR-GRN RH-"ARCTIC CAT" 1
13 STRAPHOLDDOWN-STORAGE BOX LID 2
14 BEZELINTAKE-RH-GRN ASSY Green 1
14 BEZELINTAKE-LH-GRN ASSY Green 1
15 WINDSHIELDLOW-TINT 1
16 RIVETPLASTIC - 6.0 MM DIA (5 per pack) 1
17 BRKTHOLDDOWN-WINDSHIELD 1
18 FACIABUMPER-UPR GRN-W/DECALS Green (inc. 19-20) 1
19 FACIABUMPER-UPPER-MOLD GRN Green 1
20 DECALAIRCAT-DYMOFLEX CHROME 1
21 BUMPERFRONT CLIP-MOLD BLK 1
22 VENTBUMPER-LH-MOLD BLK 1
22 VENTBUMPER-RH-MOLD BLK 1
23 FACIABUMPER-LWR BLK-W/DECALS (inc. 27-28) 1
24 FACIABUMPER-LWR-MOLD BLK 1
25 DECALLWR FIA-FRT BUMPER-RH 1
25 DECALLWR FIA-FRT BUMPER-LH 1
26 SCREW SHOULDER-M6-1.0 X 18-BLK (4 per pack) 4
27 NUTHEX FLG-NYL LOCK M6X1.0 CL8 Z&Y (5 per pack) 6
28 SCREWSHOULDER TSTRH M6X1.0X25 Z&Y (4 per pack) 4
29 NUTHEX-FLG M6X1.0 CL8 Z&Y (4 per pack) 2
30 SCREWSELF TAP-HWH M6 X 12 Z (TRI LOB) 2
31 WASHERLOCK-5/16 EXT TOOTH TYP A Z&Y (10 per pack) 2
32 SPACERUPPER FASCIA 1
