Arctic Cat PANTERA 7000 BLACK PANTERA 7000 BLACK TUNNEL AND REAR RACK ASSEMBLY

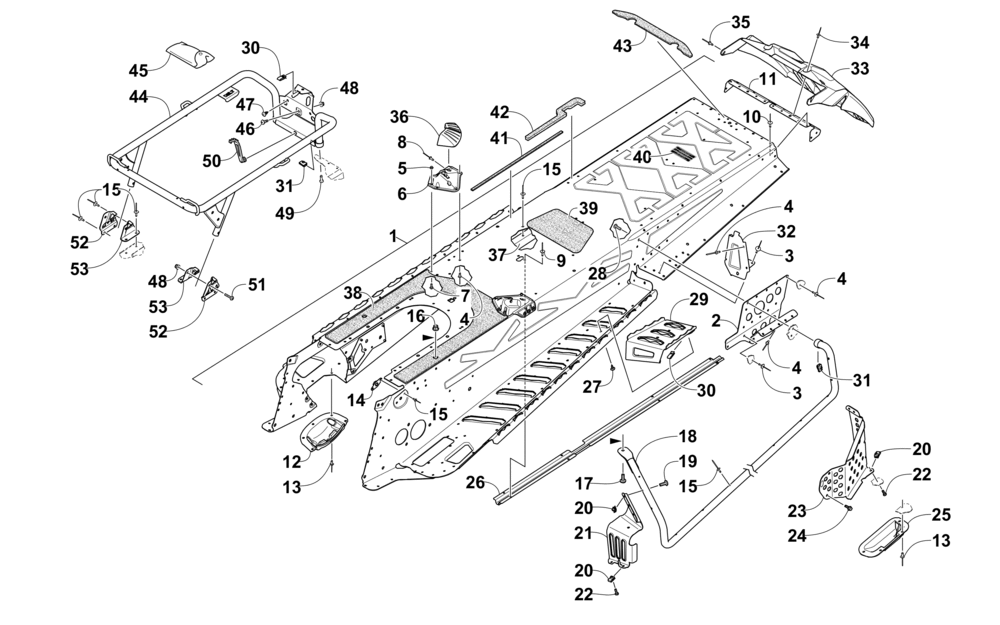

TUNNEL AND REAR RACK ASSEMBLY
№ Наименование Примечание Кол-во
- CHASSIS-TOUR-ASSY 1
1 CHASSIS-TOUR-SUB ASSY (inc. 2-10) 1
2 BRKTMTG-REAR SUSP-LH-PTD BLK 1
2 BRKTMTG-REAR SUSP-RH-PTD BLK 1
3 RIVETBLIND-DH SS64 ZINC (10 per pack) 0
4 RIVET3/16 HUCK-M6 (5 per pack) 0
5 NUT M5 X 1 NYL Z&Y (8 per pack) 8
6 BRKTSPAR SUPPORT-RH-MACH 1
6 BRKTSPAR SUPPORT-LH-MACH 1
7 SCREWMACH-TSTRH M5X0.8X12 Z&Y (6 per pack) 8
8 RIVET3/16 HUCK-M5 (10 per pack) 0
9 RIVETBLIND-DH SS53 BLK (20 per pack) 8
10 RIVET BLIND-DH SS53 ZINC (10 per pack) 0
11 CLOSE OFFTUNNEL-TOURING 1
12 PROTECTORCHAIN CASE 1
13 RIVET BLIND-LF SS66 BLACK (10 per pack) 9
14 PLATENUT-PTO-ENG/CHASSIS 1
15 RIVETBLIND-DH SS64 BLK (10 per pack) 0
16 NUTHEX FLG-NYL LOCK M8X1.25 CL8 Z&Y 2
17 SCREWMACH-TSTRH M8X1.25X20 Z&Y 2
18 ROLLTUNNEL-LH-PTD BLK 1
18 ROLLTUNNEL-RH-PTD BLK 1
19 SCREWMACH-TSPNH M5X0.8X35 CL8.8 BLK (4 per pack) 4
20 CLIPU-NUT (M5) (4 per pack) 9
21 TOE STOPRH - FORMED 1
21 TOE STOPLH - FORMED 1
22 SCREWMACH-TSPNH M5X.8X16 CL8.8 Z&Y (2 per pack) 5
23 COVERSHIELD-BRAKE DISC 1
24 SCREWCAP-HFH M6X1.0X12 CL8.8 Z&Y W/2353 (2 per pack) 2
25 PROTECTORBRAKE DISC-BOTTOM 1
26 PROTECTORTAILLIGHT HARNESS-TOUR 1
27 SCREWSELF TAP-TXSTRH tahos_10-12X5/8 TP A BL (5 per pack) 8
28 SCREWMACH-TSTRH M6X1.0X20 Z&BLK (4 per pack) 2
29 FOOTRESTPASSENGER-LH 1
29 FOOTRESTPASSENGER-RH 1
30 NUTSPEED-tahos_10B U TYPE (6 per pack) 9
31 CLIPU-NUT M6 (5 per pack) 4
32 CLOSE OFFRUNNING BOARD-RH 1
32 CLOSE OFFRUNNING BOARD-LH 1
33 FLAPSNOW-BLK 1
34 RIVETBLIND-LF SS64 BLACK (10 per pack) 4
35 RIVETBLIND-LF SS54 BLACK (10 per pack) 2
36 MOUNTFUEL TANK-RUBBER-LH 1
36 MOUNTFUEL TANK-RUBBER-RH 1
37 PROTECTORTUNNEL-LASERED-TOUR 2
38 SEALFOAM-FUEL TANK-FRONT 1
39 PADTUNNEL-FUEL TANK 1
40 DECALCAPACITY-STORAGE BOX 1
41 SEALFOAM-.187X.375X18.1 2
42 SEALFOAM-RACK BRKT-RH 1
42 SEALFOAM-RACK BRKT-LH 1
43 SEALFOAM-REAR FACIA 1
44 RACKREAR-PTD BLK 1
45 KITTOOL BAG-4 STROKE-ASSY 1
46 SCREW SHOULDER-M6-1.0 X 22 RIE BLK (4 per pack) 1
47 SCREWSELF-TAP-TSTRH-M6X12-BOSCRW-RIE BL (6 per pack) 2
48 NUTHEX FLG-NYL LOCK M6X1.0 CL8 Z&Y (5 per pack) 3
49 SCREWMACH-TSPNH M6X1X16 MPT Z&Y-W/2353 (4 per pack) 2
50 STRAPHOLD-DOWN-RUBBER 1
51 SCREWMACH-TSPNH M6X1.0X35 CL8.8 BLK 2
52 BRKTMOUNTING-RACK-OUTER RH-PTD BLK 1
52 BRKTMOUNTING-RACK-OUTER LH-PTD BLK 1
53 BRKTMOUNTING-RACK-INNER-RH-PTD BLK 1
53 BRKTMOUNTING-RACK-INNER-LH-PTD BLK 1
