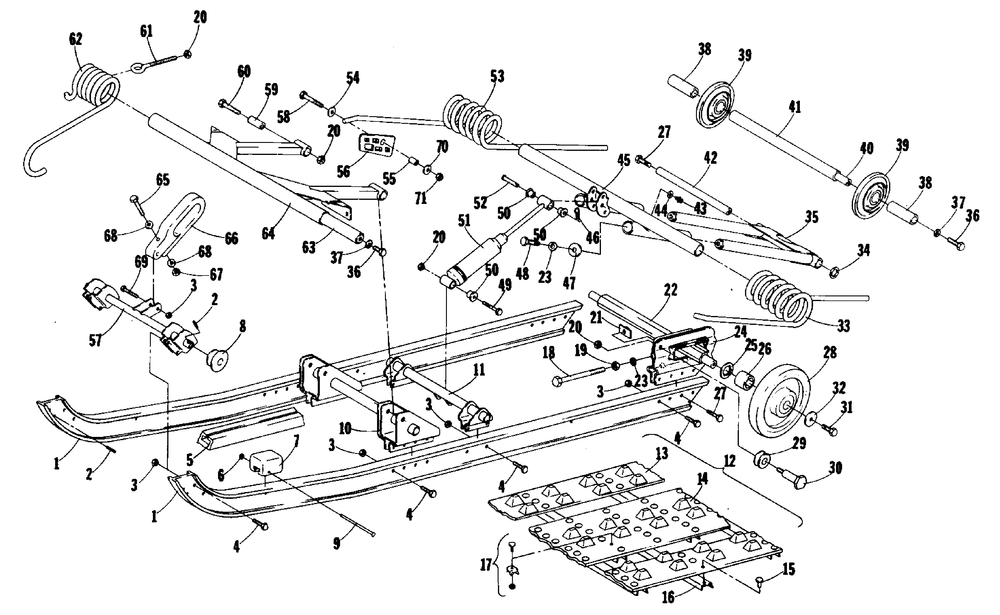

Arctic Cat PANTERA PANTERA UNDERCARRIAGE AND TRACK
UNDERCARRIAGE AND TRACK
№ Наименование Примечание Кол-во
1 RAILMACHINED 2
2 PINSPRING-5/32 X 1-1/8 SLOTTED P&O (5 per pack) 8
3 NUTHEX LOCK-NYL 5/16-18 Z&Y (20 per pack) 23
4 SCREWCAP-HH 5/16-18 X1.00 G5 Z&Y (5 per pack) 22
5 WEARSTRIPSLIDE RAIL 2
6 NUTPUSH-.125 STUD Included in Kit (5 per pack) 4
7 PADSHOCK-RUBBER (4 per pack) 4
8 ROLLER/SLIDEFRONT SPRING (2 per pack) 2
9 RIVETSOLID-1/8 X 1.50 (2 per pack) 4
15 RIVETSOLID .187X.562 STL (10 per pack) 416
18 HHCS 3/8-16X4.0 THREADED GR5 Z&Y (4 per pack) 2
19 NUT3/8-16 HEX-REG-GR5 Z&Y (20 per pack) 2
20 NUTHEX LOCK-NYL 3/8-16 Z&Y (5 per pack) 7
21 PLATE & NUT-WELDMENT (2 per pack) 2
22 AXLEREAR 1
23 WASHERSPR LOCK-3/8 .377X.688X.115 Z&Y (30 per pack) 4
25 WASHERHEX .890 X 1.25 X 12 GA (5 per pack) 2
26 SPACERREAR AXLE 2
27 SCREWCAP-HHNLP 5/16-18X1.0 G5 Z&Y (5 per pack) 2
28 WHEELIDL 6.38(2-3/4DIA INSR) 2
29 ROLLERREAR-SPRING (2 per pack) 2
30 BOLTSHOULDER 2
31 SCREW CAP -HHNLP 5/16-18X.75 G5 Z&Y (5 per pack) 2
32 WSHRFLAT 21/64X1-1/2X (10 per pack) 2
34 WSHRFLAT 21/32X1-1/8X.048 Z&Y (10 per pack) 2
35 TELESCOPE REAR ARM 1
36 SCREWCAP-HH 3/8-16 X1.00 G5 Z&Y (10 per pack) 6
37 WASHERSPR LOCK-3/8 .377X.680X.094 Z&Y (20 per pack) 6
39 WHEELIDL-4.25(NO INSR) 2
40 AXLEIDLER 1
41 SPACERAXLE-INSIDE 1
43 ZERK GREASE 1/4-28 (5 per pack) 5
44 WASHERFLAT- 1/4 X .500 X .063 Z&Y (10 per pack) 5
45 ARMREAR-WELDMENT 1
47 WASHERFLAT .390X1.38X.134 (10 per pack) 2
48 SCREWCAP-HHNLP 3/8-16X1.0 G5 (5 per pack) 2
49 SCREWCAP-HH 3/8-16 X2.00 G5 Z&Y (5 per pack) 1
50 BUSHINGSKI-SHOCK (4 per pack) 4
51 SHOCK ABSORBERRR ARM 1
53 SPRINGREAR RH 1
54 WASHERFLAT- 3/8 X 1.000 X .063 Z&Y (10 per pack) 2
55 TUBEPIVOT-SPRING ADJUSTR (5 per pack) 2
56 ADJUSTERRH RR SUSP 1
56 ADJUSTERLH RR SUSP 1
58 SCREWCAP-HH 3/8-16 X1.50 G5 Z&Y (5 per pack) 2
59 SPACERFRONT ARM-PIVOT 2
60 SCREWCAP-HH 3/8-16 X2.25 G5 Z&Y (5 per pack) 2
61 BOLTCLOSED EYE3/8-16UNC W (2 per pack) 2
62 SPRINGFRONT-LEFT 1
62 SPRINGFRONT-RIGHT 1
63 AXLEINNER 2
64 ARMFRONT-WELDMENT 1
65 SCREWCAP-HH 1/4-20 X2.25 G5 Z&Y (5 per pack) 1
66 STOP FRONT ARM 1
67 NUTHEX LOCK-NYL 1/4-20 Z&Y (20 per pack) 1
68 WASHERFLAT- 1/4 X .734 X .063 Z&Y (20 per pack) 2
69 SCREWCAP-HH 5/16-18 X1.50 G5 Z&Y (5 per pack) 1
70 WASHER2.00X.386X.1046 2
71 NUTHEX THIN LOCK-NYL 3/8-16 Z&Y (10 per pack) 2
