Arctic Cat PANTERA (440 L/C) PANTERA (440 L/C) ENGINE AND RELATED PARTS

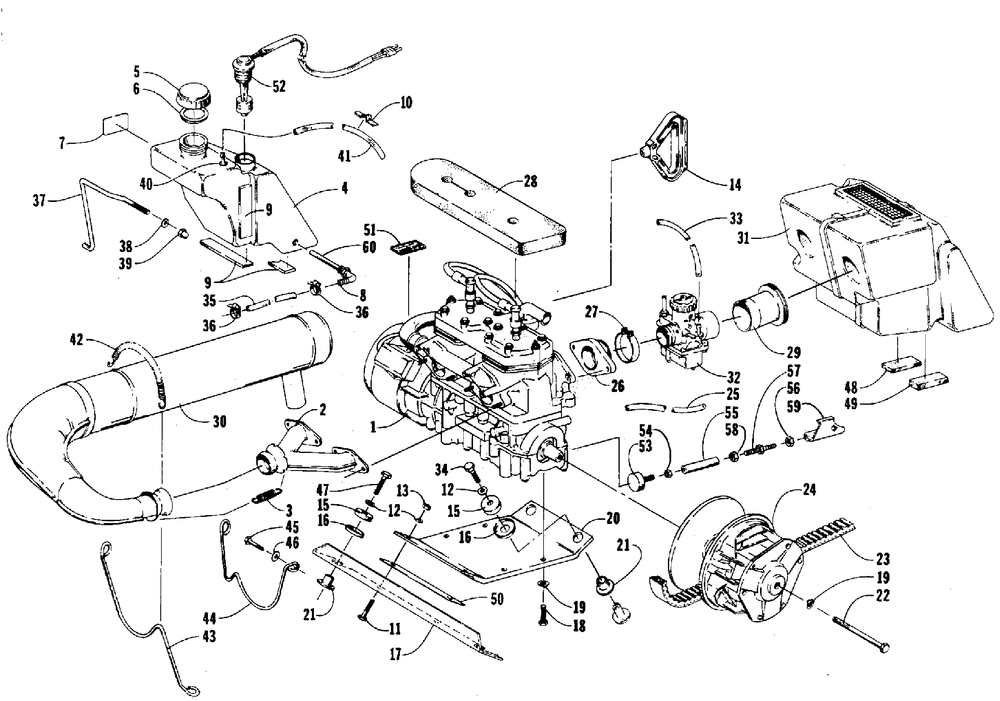

ENGINE AND RELATED PARTS
№ Наименование Примечание Кол-во
1 ENGINE 440 L/C 1
2 MANIFOLDEXHAUST-WELDT 1
3 SPRINGEXTENSION (6 per pack) 3
5 CAPOIL TANK-W/SEAL (inc. 8) 1
6 SEALGAS CAP 1
8 FITTING ELBOW-1/2HBX3/8NPT 1
9 TAPE FOAM - 5FT ROLL 0
10 CLIPOIL TANK BRKT (2 per pack) 1
11 SCREWCAP-HH 3/8-16 X1.125 G5 Z&Y (5 per pack) 2
12 WASHERFLAT- 3/8 X 1.000 X .063 Z&Y (25 per pack) 6
13 NUTHEX LOCK-NYL 3/8-16 Z&Y (5 per pack) 2
14 HANDLERECOIL-LARGE 1
15 MOUNTENGINE-FEMALE (2 per pack) 4
16 WASHERCUP (2 per pack) 4
17 ANGLE SUPPORT 1
18 SCREWCAP-HH 1/2-13 X1.25 G5 Z&Y (5 per pack) 4
19 WASHERSPR LOCK-1/2 .502X.869X.125 Z&Y (20 per pack) 5
20 PLATE ENGINE 1
21 MOUNTENGINE-MALE (2 per pack) 4
22 BOLTHEX HD CAP 1/2-20UNFX6.870 1
23 Ремень приводной 1
25 HOSE IMPULSE 3/16 25' 0
26 FLANGECARB VM32-454 (inc. 5) 2
27 CLAMPCARB-FLANGE (32/34 MM) 2
28 SEAL RAD DUCT 1
29 BOOTSILENCER 2
32 CARBURETOR VM34 2
33 HOSE GAS LINE-3/16X25' 0
33 HOSEGAS 3/16 X100' 0
34 SCREW CAP - HHNLP 3/8-16X1.0 G5 Z&Y (10 per pack) 3
35 HOSE 1/2 X15' 0
36 CLAMP5/16-3/4DIA (3 per pack) 2
37 BRKTOIL TANK 1
38 WASHERFLAT- 1/4 X .500 X .063 Z&Y (10 per pack) 1
39 NUT 1/4-20 NYL CAP (5 per pack) 1
40 VENTGAS TANK (5 per pack) 1
41 HOSE VENT-25 FT 0
42 SPRINGEXTENSION 2
45 SCREWCAP-HH 5/16-18 X1.25 G5 Z&Y (5 per pack) 1
46 WASHERFLAT- 5/16 X .688 X .065 Z&Y (10 per pack) 1
47 SCREWCAP-HHNLP 3/8-16X1.25 G5 Z&Y (4 per pack) 1
48 FOAM PAD 2.75 X 1.0 X .38 2
49 FOAM PAD 2.75 X 1.0 X .50 2
50 SPACERENGINE MTG 1
52 SENSORLOW OIL 1
53 BUMPERTORQUE {1.176"} 90 DURO -ENGINE 1
54 NUT5/16-18 HEX-REG-GR5 Z&Y (20 per pack) 1
55 TUBETORQUE ADJUST {2.48"} 1
56 NUTJAM3/8-24LH THD (2 per pack) 1
57 STUD BOLTTIE ROD ADJ (4 per pack) 1
58 NUTJAM 3/8-24(RIGHT HAND) (5 per pack) 1
59 BRKTTORQUE-WELD'T 1
