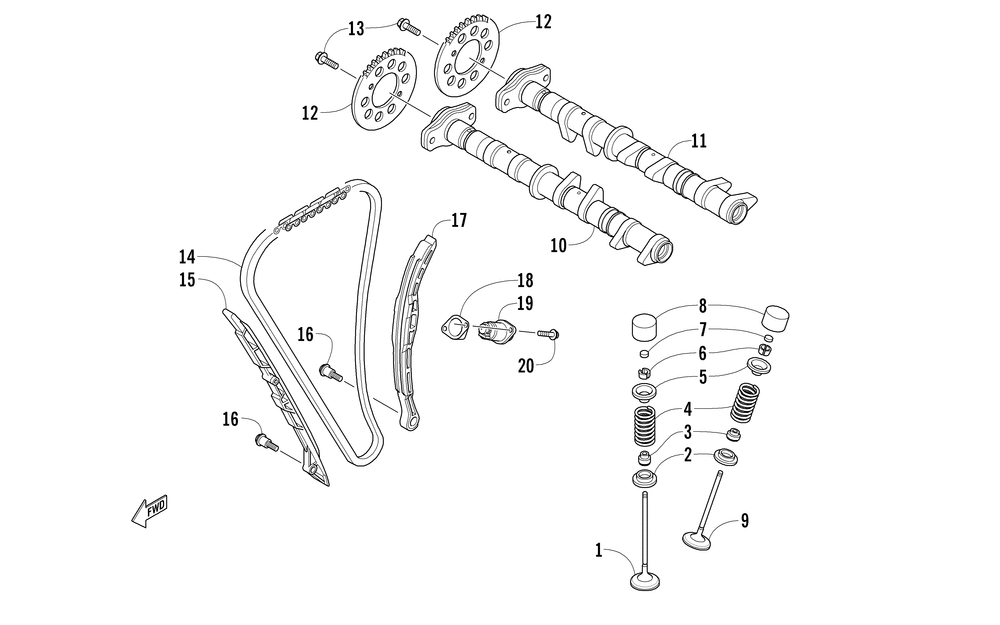

CAMSHAFT CHAIN AND VALVE ASSEMBLY

Корзина пуста
Arctic Cat SR VIPER L-TX SE 137 EARLY BUILD ORANGE SR VIPER L-TX SE 137 EARLY BUILD ORANGE CAMSHAFT CHAIN AND VALVE ASSEMBLY
CAMSHAFT CHAIN AND VALVE ASSEMBLY
№ Наименование Примечание Кол-во
1 VALVE INTAKE 6
2 SEAT VALVE SPRING 12
3 SEAL VALVE STEM 12
4 SPRINGVALVE 12
5 RETAINER VALVE SPRING 12
6 COTTER VALVE 24
7 SHIM TAPPET - 1.20 MM 0
7 SHIM TAPPET - 1.25 MM 0
7 SHIM TAPPET - 1.30 MM 0
7 SHIM TAPPET - 1.35 MM 0
7 SHIM TAPPET - 1.40 MM 0
7 SHIM TAPPET - 1.45 MM 0
7 SHIM TAPPET - 1.50 MM 0
7 SHIM TAPPET - 1.55 MM 0
7 SHIM TAPPET - 1.60 MM 0
7 SHIM TAPPET - 1.65 MM 0
7 SHIM TAPPET - 1.70 MM 0
7 SHIM TAPPET - 1.75 MM 0
7 SHIM TAPPET - 1.80 MM 0
7 SHIM TAPPET - 1.85 MM 0
7 SHIM TAPPET - 1.90 MM 0
7 SHIM TAPPET - 1.95 MM 0
7 SHIM TAPPET - 2.00 MM 0
7 SHIM TAPPET - 2.05 MM 0
7 SHIM TAPPET - 2.10 MM 0
7 SHIM TAPPET - 2.15 MM 0
7 SHIM TAPPET - 2.20 MM 0
7 SHIM TAPPET - 2.25 MM 0
7 SHIM TAPPET - 2.30 MM 0
7 SHIM TAPPET - 2.35 MM 0
7 SHIM TAPPET - 2.40 MM 0
8 TAPPET - YELLOW 12
8 TAPPET - GREEN 12
9 VALVE EXHAUST 6
10 CAMSHAFTINTAKE 1
11 CAMSHAFTEXHAUST 1
12 SPROCKET 2
13 SCREWCAP-HFH 4
14 CHAINCAM 1
15 GUIDECAM CHAIN 1
16 SCREWSHOULDER 2
17 TENSIONERCAM CHAIN 1
18 GASKET 1
19 ADJUSTER TENSIONER - ASSEMBLY 1
20 SCREWCAP-HSH 2
