SKID PLATE AND SIDE PANEL ASSEMBLY

Корзина пуста
Arctic Cat SR VIPER X-TX SE 141 RED SR VIPER X-TX SE 141 RED SKID PLATE AND SIDE PANEL ASSEMBLY

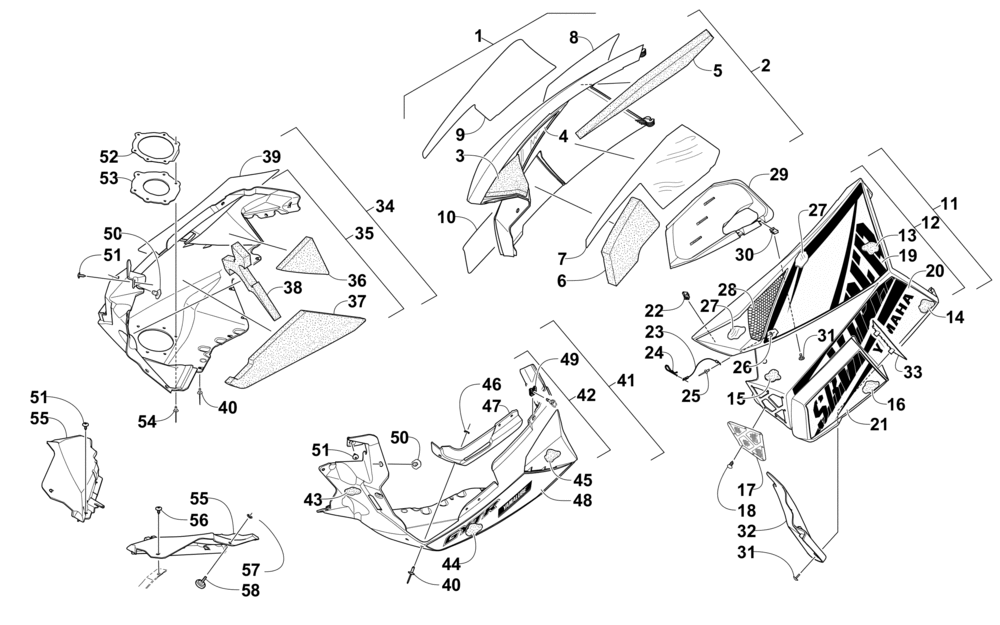

SKID PLATE AND SIDE PANEL ASSEMBLY
№ Наименование Примечание Кол-во
1 PANELSIDE-RH RED W/DECALS (SR VPR) (inc. 2-10) 1
2 PANELSIDE-RH WITH FOAM-BLK (4 STROKE) (inc. 3-7 and 16-19) 1
3 FOAMUPPER SIDE PANEL-FRT-RH 1
4 FOILPROTECTIVE-MIDDLE SIDE PANEL-RH 1
5 FOAMUPPER SIDE PANEL-REAR-RH 1
6 FOAMLWR SIDE PANEL-FRT-RH 1
7 FOILPROTECTIVE-LWR SIDE PANEL-REAR-RH 1
8 DECALACCESS PANEL-UPPER RH SE RED 1
9 DECALACCESS PANEL-LOWER RH SE RED 1
10 DECALACCESS PANEL-FORWARD RH SE RED 1
11 PANELSIDE-LH RED W/DECALS (SR VPR) (inc. 12-21) 1
12 PANELSIDE-LH-W/FOAM-BLK (inc. 10-13 18-19 23-27) 1
13 FOAMUPPER SIDE PANEL-REAR-LH 1
14 FOAMLWR SIDE PANEL-REAR-LH 1
15 FOAMMIDDLE SIDE PANEL-LH 1
16 FOAMLWR SIDE PANEL-FRT-LH 1
17 SCREEN AIR DEFLECTOR 1
18 CLIP CHRISTMAS TREE (5 per pack) 8
19 DECALACCESS PANEL-UPPER LH SE RED 1
20 DECALACCESS PANEL-LOWER LH SE RED 1
21 DECALACCESS PANEL-FORWARD LH SE RED 1
22 CLIPU-NUT (M5) (4 per pack) 1
23 CABLE5"-HAIRPIN 2
24 HAIRPINCOTTER (5 per pack) 2
25 RIVET BLIND-DH SS54 ZINC (20 per pack) 2
26 WASHERFLAT- tahos_8 X .375 X .049 Z&Y (20 per pack) 2
27 TAPEALUM FOIL - 6" X 30 FT Optional 0
28 SCREENSIDE PANEL-UPR LH-PTD BLK Optional 1
29 DUCTAIR-CLUTCH W/FOIL (inc. 29) 1
30 NUTSPEED-tahos_10B U TYPE (6 per pack) 2
31 SCREWSELF TAP-TSTH 10-12X1/2 WO/GP (10 per pack) 4
32 DEFLECTORAIR 1
33 RETAINERAIR DEFLECTOR 1
34 PLATESKID-RH VIPER-WHT W/DECALS (inc. 33-37) 1
35 PLATESKID-REAR RH W/FOAM (inc. 34-36) 1
36 FOAMSKID PLATE-REAR-RH 1
37 FOAMSKID PLATE-MIDDLE-RH 1
38 FOAMSKID PLATE-FRT-RH 1
39 DECALSKID PLATE-RH-BLU (SRV) 1
40 RIVETBLIND-LF SS66 ZINC (10 per pack) 3
40 RIVET BLIND-LF SS66 BLACK (10 per pack) 18
41 PLATESKID-LH VIPER-WHT W/DECALS (inc. 40-46) 1
42 PLATESKID-REAR LH W/FOAM (inc. 41-45) 1
43 FOAMSKID PLATE-FRT-LH 1
44 FOAMSKID PLATE-MIDDLE-LH 1
45 FOAMSKID PLATE-REAR-LH 1
46 WASHERFLAT .194X.50X.048 (4 per pack) 3
47 RETAINERTAB-SIDE PANEL 1
48 DECALSKID PLATE-LH-BLU (SRV) 1
49 CLIPRECEPTACLE-1/4 TURN STUD 2
50 PINRETAINER-BODY PLASTIC (2 per pack) 2
51 SCREWSELF TAP-TXSTRH tahos_10-12X5/8 TP A BL (5 per pack) 6
52 PLATEEXHAUST-OUTLET 1
53 SEALEXHAUST OUTLET-7000 1
54 RIVETBLIND-LF SS56 BLACK (10 per pack) 6
55 PANELFILLER-RH-BLK 1
55 PANELFILLER-LH BK-Z3 1
56 SCREWSELF TAP-TSTRH tahos_10-12X3/4 TP A BLK (5 per pack) 2
57 RETAINERPUSHNUT-3/16" STUD (4 per pack) 1
58 SCREW1" RND KNOB-M5X0.8X20mm LG (4 per pack) 1
