Arctic Cat SR VIPER X-TX SE 141 RED SR VIPER X-TX SE 141 RED FRONT BUMPER AND FRAME ASSEMBLY

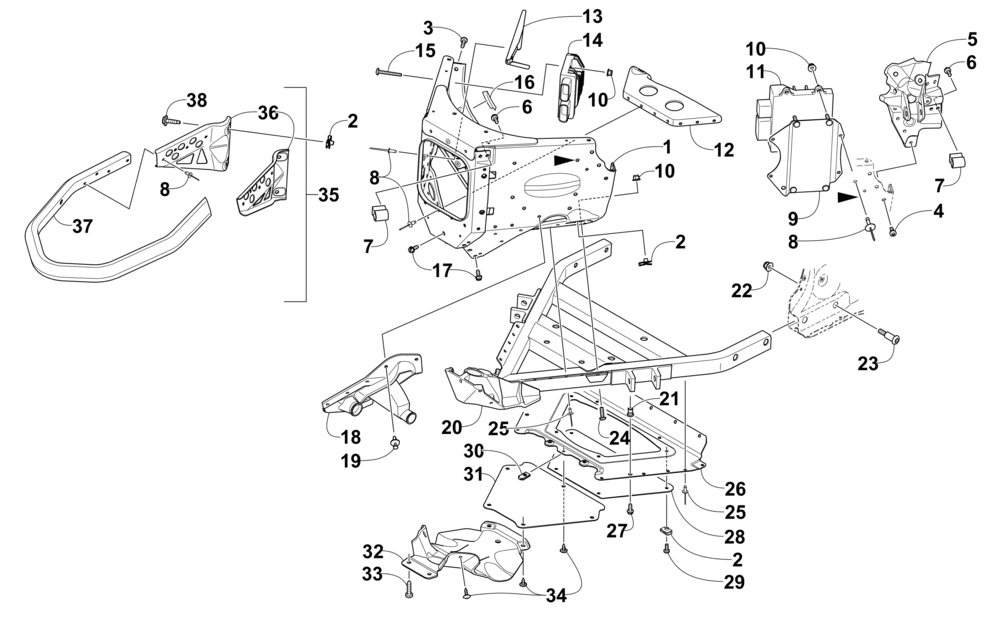

FRONT BUMPER AND FRAME ASSEMBLY
№ Наименование Примечание Кол-во
1 PANELFRT-ASSY 10MM 7000-PTD BLK (inc. 2-5) 1
2 CLIPU-NUT M6 (5 per pack) 12
3 SCREWTAPTITE-TSPNH M6 X 1 X 20 Z&B (4 per pack) 1
4 SCREWTAPTITE-TSPNH M6 X 1 X 16 Z&B (10 per pack) 10
5 HOUSINGSHOCK MOUNT-UPR LH-PTD BLK Black 1
5 HOUSINGSHOCK MOUNT-UPR RH-PTD BLK Black 1
6 SCREWCAP-HFH M6X1.0X16 CL10.9 W/2353 (8 per pack) 8
7 BRKTMTG-UPPER A-ARM-M6 X 1 THDS 4
8 RIVETBLIND-DH SS64 BLK (10 per pack) 0
9 BRKTMOUNT-ECU-ASSY 1
10 NUTHEX FLG-NYL LOCK M6X1.0 CL8 Z&Y (5 per pack) 8
11 ECMPROGRAMMED-Z3-8T/3.0P 1
12 BRKTMTG-STEERING POST 1
13 BRKTMTG-STEERING STOP 1
14 REGULATORVOLTAGE (50-AMP) 1
15 SCREWMACH-TSTRH M6X1.0X25 Z&BLK (5 per pack) 2
16 TRIMRACK-36 0
17 SCREWSELF TAP 1/4-20X5/8 TYPE F BLK (5 per pack) 5
18 BOOTSTEERING-RH 1
18 BOOTSTEERING-LH 1
19 RIVETPLASTIC-REINSTALLABLE (5 per pack) 16
20 FRAME LOWER-4 STRK-PTD BLK 1
21 INSERTM5X0.8-AL SERIES ALS4-580-3.3 (2 per pack) 2
22 NUTHEX FLG-NYL LOCK M8X1.25 CL8 Z&Y 4
23 SCREWSHOULDER-HSTRH M8 X 1.25 X 44.16 (4 per pack) 4
24 SCREWMACH-TSPNH M6X1.0X20 CL8.8 BLK 2
25 RIVETBLIND-DH SS64 ZINC (10 per pack) 16
26 BELLYPANCENTER-STAMPED 1
27 SCREWMACH-TSTRH M5X0.8X20 Z&Y (2 per pack) 2
28 PANELACCESS 1
29 SCREWMACH-TSPNH M6X1.0X16 CL8.8 W/2353 (4 per pack) 4
30 NUTU (2 per pack) 1
31 PANELACCESS 1
32 PLATESKID-CENTER 1
33 SCREWMACH-TSTRH-M5 X 0.8 X 25 CA PT/W23 (2 per pack) 2
34 SCREWSELF TAP-TXSTRH tahos_10-12X5/8 TP A BL (5 per pack) 7
35 BUMPERFRT-BLK-ASSY (inc. eight No. 8 and 35-36) 1
36 BRKTMTG-FRT BUMPER-LH-PTD BLK 1
36 BRKTMTG-FRT BUMPER-RH-PTD BLK 1
37 TUBEFRT BUMPER-PTD BLK 1
38 SCREWFUEL TANK MOUNT (M6X18 DP) (4 per pack) 4
