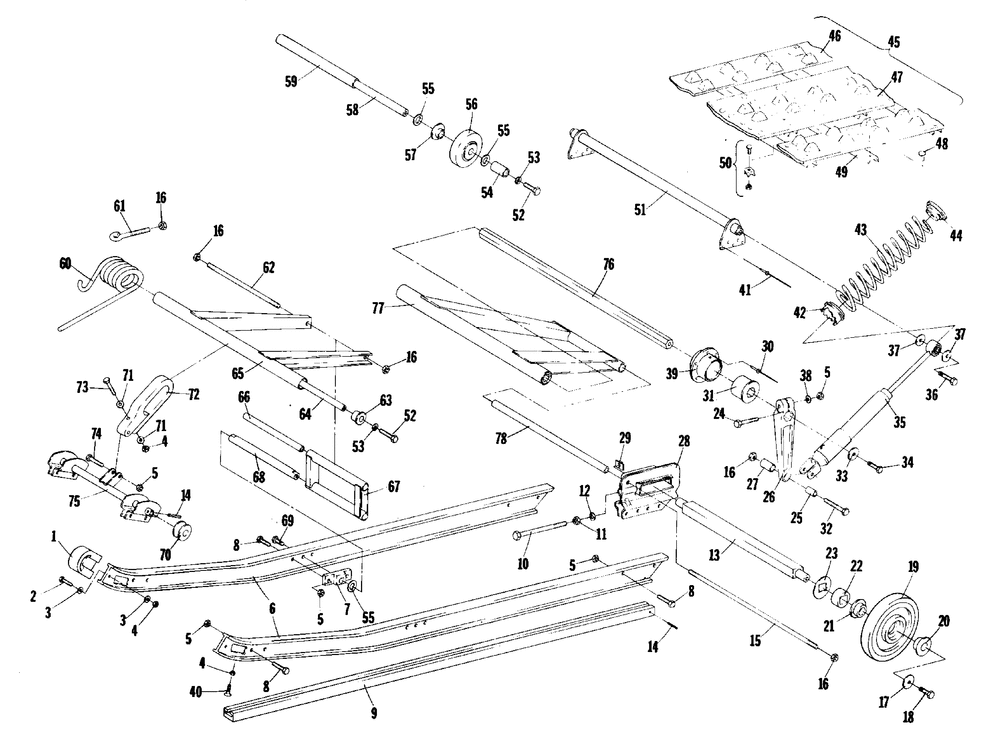

Arctic Cat TRAIL CAT TRAIL CAT UNDERCARRIAGE AND TRACK
UNDERCARRIAGE AND TRACK
№ Наименование Примечание Кол-во
1 NOSE PIECESLIDE RAIL-BLACK 2
2 SCREWCAP-HH 1/4-20 X1.25 G5 Z&Y (5 per pack) 2
3 WASHERFLAT- 1/4 X .500 X .063 Z&Y (10 per pack) 4
4 NUTHEX LOCK-NYL 1/4-20 Z&Y (20 per pack) 5
5 NUTHEX LOCK-NYL 5/16-18 Z&Y (20 per pack) 15
6 RAILSLIDE FORMED 2
7 BRKTPIVOT-REAR ARM 2
8 SCREWCAP-HH 5/16-18 X1.00 G5 Z&Y (5 per pack) 12
9 WEARSTRIPSLIDE RAIL 2
10 HHCS 3/8-16X4.0 THREADED GR5 Z&Y (4 per pack) 2
11 NUT3/8-16 HEX-REG-GR5 Z&Y (20 per pack) 2
12 WASHERSPR LOCK-3/8 .377X.688X.115 Z&Y (30 per pack) 2
13 AXLEREAR 1
14 PINSPRING-5/32 X 1-1/8 SLOTTED P&O (5 per pack) 2
15 BOLT PIVOT REAR ARM (5 per pack) 1
16 NUTHEX LOCK-NYL 3/8-16 Z&Y (5 per pack) 8
17 WSHRFLAT 21/64X1-1/2X (10 per pack) 2
18 SCREW CAP -HHNLP 5/16-18X.75 G5 Z&Y (5 per pack) 2
19 WHEELIDLER 5.88 W/3/4 BORE 2
20 INSERT 3/4 BORE X 2 OD (2 per pack) 2
21 INSERT3/4 BORE X 1.570 OD (2 per pack) 2
22 SPACERREAR AXLE 2
23 WASHERRECT 1.015 X 1.62 12GA (4 per pack) 4
25 INSERT SHOCK LEVER 2
27 INSERT SHOCK LEVER 2
28 HOUSINGREAR AXLE WELDED RH 1
28 HOUSINGREAR AXLE WELDED LH 1
29 PLATE & NUT-WELDMENT (2 per pack) 2
30 RIVETBLIND-DH SS66 BLK (10 per pack) 12
31 BUSHINGHEX-SHAFT 2
32 SCREWCAP-HH 3/8-16 X1.50 G5 Z&Y (5 per pack) 2
34 SCREWCAP-HHNLP 3/8-16X1.0 G5 (5 per pack) 2
35 SHOCKABSORBERREAR 2
36 SCREWCAP-HHNLP 3/8-16X1.75 G5 Z&Y (5 per pack) 2
37 WASHERFLAT .390 X 1.06 X.125 (5 per pack) 4
38 WASHERFLAT- 5/16 X .625 X .063 Z&Y (10 per pack) 2
40 SCRWMACHFH-1/4-20 X 1 1/4 (10 per pack) 2
41 RIVET BLIND-DH SS54 ZINC (20 per pack) 10
42 RETAINERSPRING-ADJUSTABLE 2
43 SPRINGCOMPRESSION 10 IN 2
44 RETAINER SPRING 2
48 RIVETSOLID .187X.562 STL (10 per pack) 414
52 SCREWCAP-HH 3/8-16 X1.00 G5 Z&Y (10 per pack) 4
53 WASHERSPR LOCK-3/8 .377X.688X.115 BLK (4 per pack) 4
54 SPACERTUNNEL WHEEL-OUTSIDE 2
55 WSHRFLAT 21/32X1-1/8X.048 Z&Y (10 per pack) 6
56 WHEELIDLER 3.25 DIA X .625 2
57 INSERT5/8 BORE X 1.580 OD (2 per pack) 4
59 SPACERTUNNEL WHEELS-INSIDE 1
60 SPRINGSUSPENSION- FRT-RH PTD BLK 1
60 SPRINGSUSPENSION- FRT-LH PTD BLK 1
61 BOLTCLOSED EYE3/8-16UNC W 2
63 BUSHINGAXLE 2
64 AXLEINNER CARRIAGE 1
68 AXLEREAR ARM PIVOT 1
69 SCREWCAP-HHNLP 5/16-18X1.0 G5 Z&Y (5 per pack) 2
70 ROLLER/SLIDEFRONT SPRING (2 per pack) 2
71 WASHERFLAT- 1/4 X .734 X .063 Z&Y (20 per pack) 2
72 STOPFRONT ARM 1
73 SCREWCAP-HH 1/4-20 X2.25 G5 Z&Y (5 per pack) 1
74 SCREWCAP-HH 5/16-18 X1.50 G5 Z&Y (5 per pack) 1
75 CROSSBRACEFRONT-WELDMENT(0104-910) 1
