Arctic Cat TRAIL CAT TRAIL CAT DRIVE TRAIN

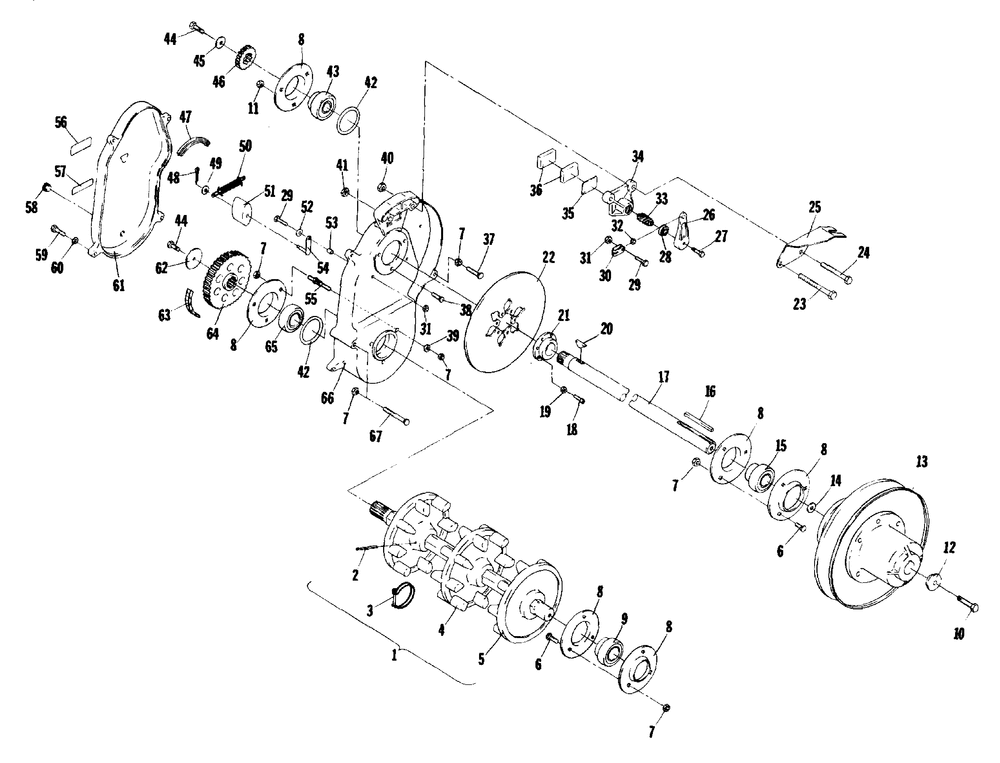

DRIVE TRAIN
№ Наименование Примечание Кол-во
2 PINSPRING-1/4 X 2-1/4 SLOTTED P&O (2 per pack) 2
5 SPROCKETTR/DR 8T 1/2 HEX FAB 2
6 BOLTCRG 5/16-18X.75 GR1 Z&Y (5 per pack) 6
7 NUTHEX LOCK-NYL 5/16-18 Z&Y (20 per pack) 14
8 PLATEFLANGE-BEARING (TRIANGLE) 6
9 BEARING1.00 W/COLLAR 1
10 SCREWCAP-HH 5/16-18 X3.25 G5 Z&Y (5 per pack) 1
11 NUTHEX THIN LOCK-NYL 5/16-18 Z&Y (10 per pack) 3
15 BEARING1 W/LOCK(LARGE RACE) 1
16 KEY 3/16 X 1/4 X 3 (5 per pack) 1
18 SCREW CAP-HSH 10-32X.625 Z&Y (5 per pack) 6
19 NUTFLEXLOCK 10-32 (5 per pack) 6
20 KEYWOODRUFF-HARDENED 1
21 HUBBRAKE 1
22 DISCBRAKE 1
23 SCREWCAP-HH 3/8-16 X2.50 G5 Z&Y (5 per pack) 1
24 SCREWCAP-HH 3/8-16 X2.25 G5 Z&Y (5 per pack) 1
26 LEVERBRAKE ACTUATOR 1
27 SCREWCAP-HHNLP 1/4-20X.75 G5 Z&Y (10 per pack) 1
28 COLLAR ACTUATOR 1
29 SCREWCAP-HH 1/4-20 X.75 G5 Z&Y (5 per pack) 3
30 CLEVIS 1
31 NUTHEX THIN LOCK-NYL 1/4-20 Z&Y (10 per pack) 3
33 SHAFTBRAKE ACTUATOR 1
34 CASTING ACTUATOR-BRAKE 1
35 PLATE BACKNG PUCK 1
36 PUCKBRAKE (4 per pack) 2
37 BOLTCRG 5/16-18X1.75 GR1 Z&Y (5 per pack) 1
38 BOLTRIB NECK-RDH 5/16-18X.625 Z&Y (5 per pack) 3
39 WASHERFLAT- 5/16 X .688 X .065 Z&Y (10 per pack) 3
40 NUTHEX LOCK-NYL 3/8-16 Z&Y (5 per pack) 1
41 NUTHEX THIN LOCK-NYL 3/8-16 Z&Y (10 per pack) 1
42 SEALO RING .093 (2 per pack) 2
43 KITREPLACEMENT BEARING-7/8" 1
44 SCREW CAP -HHNLP 5/16-18X.75 G5 Z&Y (5 per pack) 2
46 SPROCKET20T-3/8 X.520 X7/8 1
47 SEALDROPCASE COVER (2 per pack) 1
48 PIN COTTER - 1/16 X 5/8 (5 per pack) 2
49 WASHERFLAT- 1/4 X .500 X .063 Z&Y (10 per pack) 2
50 SPRING TIGHTENER 1
51 PADTIGHTENER (2 per pack) 2
52 WASHERFLAT- 1/4 X .625 X .065 Z&Y (10 per pack) 2
53 BUSHINGTIGHTENER ARM (4 per pack) 2
54 PIN & LINK ASS'YTIGHTENER 2
55 STUDDROPCASE 3
58 PLUG DRAIN 2
59 SCREWCAP-HH 5/16-18 X1.00 G5 Z&Y (5 per pack) 4
60 WASHERLOCK-5/16 EXT TOOTH TYP A Z&Y (10 per pack) 4
61 COVERDROPCASE 1
62 CARRIAGE SPRING WASHER (2 per pack) 1
63 CHAIN70 PITCH-SILENT 1
64 SPROCKET39T-3/8 X.520 X 1.00 1
65 KITREPLACEMENT BEARING-1" 1
66 DROPCASE-W/PLUGS 1
67 BOLTCRG 5/16-18X3.25 GR1 Z&Y (5 per pack) 1
