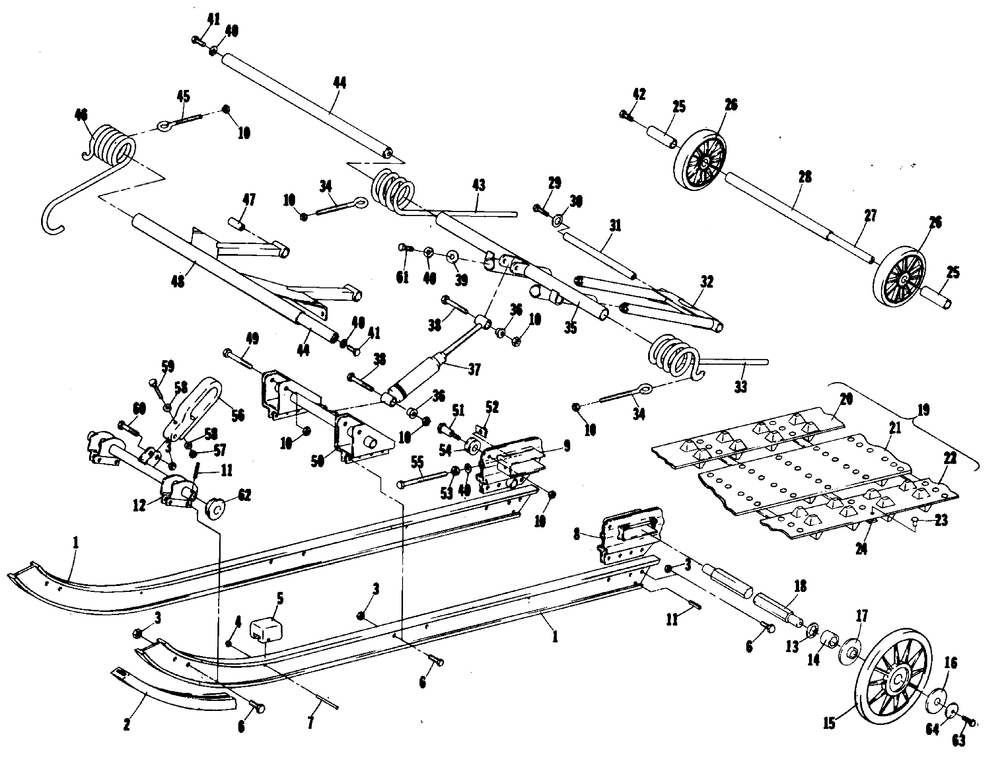

Arctic Cat LYNX TWIN LYNX TWIN UNDERCARRIAGE AND TRACK
UNDERCARRIAGE AND TRACK
№ Наименование Примечание Кол-во
1 SIDE RAILFORMED 2
2 WEARSTRIPSLIDE RAIL 2
3 NUTHEX LOCK-NYL 5/16-18 Z&Y (20 per pack) 13
4 NUTPUSH-.125 STUD Included in Kit (5 per pack) 4
5 PADSHOCK-RUBBER (4 per pack) 4
6 SCREWCAP-HH 5/16-18 X.875 G5 Z&Y (10 per pack) 12
7 RIVETSOLID-1/8 X 1.50 (2 per pack) 4
10 NUTHEX LOCK-NYL 3/8-16 Z&Y (5 per pack) 10
11 PINSPRING-5/32 X 1-1/8 SLOTTED P&O (5 per pack) 6
12 CROSSBRACEFRONT-WELDMENT(0104-910) 1
13 WASHERHEX .890 X 1.25 X 12 GA (5 per pack) 2
14 SPACERREAR AXLE 2
15 WHEELIDL 6.38(2-3/4DIA INSR) 2
16 INSERT3/4 BORE X 1.570 OD (2 per pack) 2
17 INSERT 3/4 BORE X 2 OD (2 per pack) 2
18 AXLEREAR 1
23 RIVETSOLID .187X.562 STL (10 per pack) 396
26 WHEEL IDLER 5-1/4 OD 2
28 SPACERAXLE-INSIDE 1
29 SCREWCAP-HHNLP 5/16-18X1.0 G5 Z&Y (5 per pack) 2
30 WSHRFLAT 21/32X1-1/8X.048 Z&Y (10 per pack) 2
32 TELESCOPE REAR ARM 1
33 SPRINGREAR-LEFT 1
36 BUSHINGSKI-SHOCK (4 per pack) 4
37 SHOCK ABSORBERRR ARM 1
38 SCREWCAP-HH 3/8-16 X2.00 G5 Z&Y (5 per pack) 2
39 WASHERFLAT .390X1.38X.134 (10 per pack) 2
40 WASHERSPR LOCK-3/8 .377X.688X.115 Z&Y (30 per pack) 8
41 SCREWCAP-HH 3/8-16 X1.00 G5 Z&Y (10 per pack) 4
42 SCREWCAP-HHNLP 3/8-16X.75 G5 Z&Y (5 per pack) 2
43 SPRINGREAR-RIGHT 1
44 AXLEINNER-WELDED 2
45 BOLTCLOSED EYE3/8-16UNC W (2 per pack) 2
46 SPRINGSUSP FRNT LH 1
46 SPRINGSUSP FRNT-RH 1
47 SPACERFRONT ARM-PIVOT 2
48 ARMFRONT-WELDMENT 1
49 SCREWCAP-HH 3/8-16 X2.25 G5 Z&Y (5 per pack) 2
51 BOLTSHOULDER 2
52 PLATE & NUT-WELDMENT (2 per pack) 2
53 NUT3/8-16 HEX-REG-GR5 Z&Y (20 per pack) 2
54 ROLLERREAR-SPRING (2 per pack) 2
55 HHCS 3/8-16X4.0 THREADED GR5 Z&Y (4 per pack) 2
56 STOPFRONT ARM 1
57 NUTHEX LOCK-NYL 1/4-20 Z&Y (20 per pack) 1
58 WASHERFLAT- 1/4 X .734 X .063 Z&Y (20 per pack) 2
59 SCREWCAP-HH 1/4-20 X2.25 G5 Z&Y (5 per pack) 1
60 SCREWCAP-HH 5/16-18 X1.50 G5 Z&Y (5 per pack) 1
61 SCREWCAP-HHNLP 3/8-16X1.0 G5 (5 per pack) 2
62 ROLLER/SLIDEFRONT SPRING (2 per pack) 2
63 SCREW CAP -HHNLP 5/16-18X.75 G5 Z&Y (5 per pack) 2
64 WSHRFLAT 21/64X1-1/2X (10 per pack) 2
