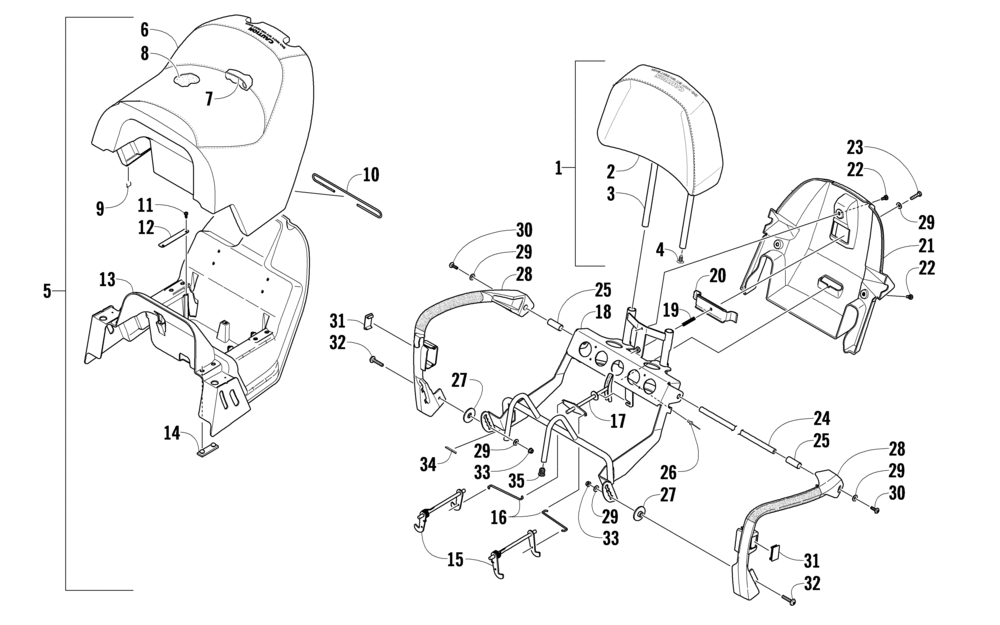

PASSENGER SEAT AND BACKREST ASSEMBLY

№	Наименование	Кол-во
1	BACKREST-W/COVER-MFG ASSY (inc. 2-4)	1
2	COVER BACKREST	1
3	BACKREST-W/ OVERMOLD	1
4	CLIP CHRISTMAS TREE-3/8" (2 per pack)	2
5	SEATREAR-ADJ-W/O WARMERS- ASSY (inc. 6-35)	1
6	COVER SEAT-REAR-TOUR (inc. 7)	1
7	WIRESEAT-BENT	1
8	FOAM SEAT-PASS-TOUR .40R@3.8	1
9	STAPLE5/16L X 1/2W-20GA SS/5000 PAK-SEA	0
10	WIRESEAT - 279 MM - FORMED	1
11	SCREWSELF TAP-TSPNH 10-16X5/8 TYPE AB Z (5 per pack)	4
12	RETAINER SEAT LATCH-REAR	2
13	BASE SEAT-REAR	1
14	BUMPER SEAT	4
15	RODLATCH - W/SPRING - RH WELDT	1
15	RODLATCH - W/SPRING - LH WELDT	1
16	ROD CROSS	2
17	ROD HANDLE-PTD BLK	1
18	FRAME SEAT-PASS-PTD-08 TOUR	1
19	SPRINGADJUSTMENT	1
20	PLATE CLAMP-REAR BACKREST-PTD-08 TOUR	1
21	PANELSEAT BASE-PASSENGER	1
22	SCREWSELF TAP-TSPH M6-1.0X15 (2 per pack)	3
23	SCREW CAP-HH-1/4-28X1.250-RIE BLK (5 per pack)	1
24	ROD PIVOT-HANDLE-08 TOUR	1
25	SPACER PIVOT-HANDLE-08 TOUR	2
26	RIVET BLIND-.162 DIA X .040/.295 GRIP (10 per pack)	4
27	SPACER LATCH-PTD BLK	2
28	HAND HOLD RH-W/O HW-MACH	1
28	HAND HOLD LH-W/O HW	1
29	WASHERFLAT- 1/4 X .625 X .065 Z&Y (10 per pack)	5
30	SCREWMACH-TSTRH M6X1.0X20 RIEBLK W/2510 (4 per pack)	2
31	PLUGSWITCH HOLE (3 per pack)	2
32	SCREWMACH-TSTRH M6X1.0X30 Z&Y (4 per pack)	2
33	NUTHEX FLG-NYL LOCK M6X1.0 CL8 Z&Y (5 per pack)	2
34	TRIMRACK-36	0
35	PLUG TUBE-1/2" (2 per pack)	2
