Arctic Cat M 8000 SNO PRO LTD 153 ORANGE-BLACK M 8000 SNO PRO LTD 153 ORANGE-BLACK SKID PLATE AND SIDE PANEL ASSEMBLY

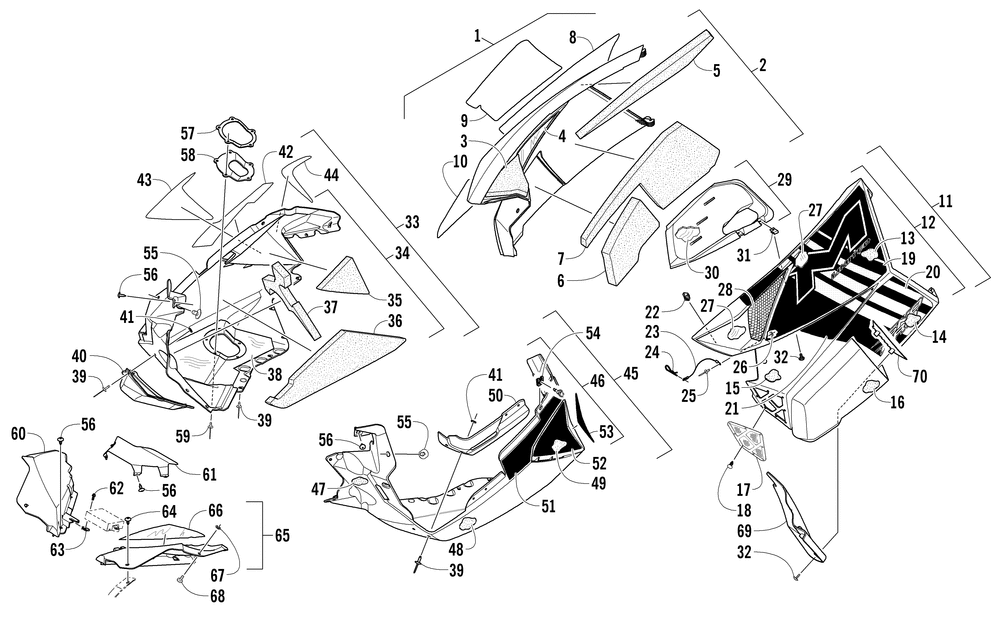

SKID PLATE AND SIDE PANEL ASSEMBLY
№ Наименование Примечание Кол-во
1 PANELSIDE-RH ORN/BLK DECALS(M8 LTD) Orange (inc. 2-10) 1
2 PANELSIDE-RH W/FOAM-ORN/CLR (2 STRK) Orange (inc. 3-7) 1
3 FOAMUPPER SIDE PANEL-FRT-RH 1
4 FOILPROTECTIVE-MIDDLE SIDE PANEL-RH 1
5 FOAMUPPER SIDE PANEL-REAR-RH 1
6 FOAMLWR SIDE PANEL-FRT-RH 1
7 FOAMLWR SIDE PANEL-REAR-RH 1
8 DECALSIDE PANEL-UPPER-RH (M LTD ORN) 1
9 DECALSIDE PANEL-LWR-RH (LTD ORN) 1
10 DECALSIDE PANEL-MID-RH (LTD ORN) 1
11 PANELSIDE-LH ORN/BLK DECALS(M8 LTD) Orange (inc. 12-21) 1
12 PANELSIDE-LH W/FOAM-ORN/CLR Orange (inc. 13-18) 1
13 FOAMUPPER SIDE PANEL-REAR-LH 1
14 FOAMLWR SIDE PANEL-REAR-LH 1
15 FOAMMIDDLE SIDE PANEL-LH 1
16 FOAMLWR SIDE PANEL-FRT-LH 1
17 SCREEN AIR DEFLECTOR 1
18 CLIP CHRISTMAS TREE (5 per pack) 8
19 DECALSIDE PANEL-UPPER-LH (M LTD ORN) 1
20 DECALSIDE PANEL-LWR-LH (LTD ORN) 1
21 DECALSIDE PANEL-MID-LH (LTD ORN) 1
22 CLIPU-NUT (M5) (4 per pack) 1
23 CABLE5"-HAIRPIN 2
24 HAIRPINCOTTER (5 per pack) 2
25 RIVET BLIND-DH SS54 ZINC (20 per pack) 2
26 WASHERFLAT- tahos_8 X .375 X .049 Z&Y (20 per pack) 2
27 TAPEALUM FOIL - 6" X 30 FT Optional 0
28 SCREENSIDE PANEL-UPR LH-PTD BLK Optional 1
29 DUCTAIR-CLUTCH W/FOIL (inc. 29) 1
30 FOILCLUTCH DUCT-2 STROKE 1
31 NUTSPEED-tahos_10B U TYPE (6 per pack) 2
32 SCREWSELF TAP-TSTH 10-12X1/2 WO/GP (10 per pack) 4
33 PLATESKID-ORN W/CLR-RH W/DECAL Orange (inc. 33-43) 1
34 PLATESKID-ORN W/CLR-RH W/FOAM Orange (inc. 34-40) 1
35 FOAMSKID PLATE-REAR-RH 1
36 FOAMSKID PLATE-MIDDLE-RH 1
37 FOAMSKID PLATE-FRT-RH 1
38 FOILSKID PLATE-RESONATOR 1
39 RIVET BLIND-LF SS66 BLACK (10 per pack) 26
40 SHIELDRESONATOR-SKID PLATE 1
41 WASHERFLAT .194X.50X.048 (4 per pack) 8
42 DECALSKID PLATE-UPPER-RH (LTD ORN) 1
43 DECALSKID PLATE-LOWER-RH (LTD ORN) 1
44 DECALSKID PLATE-REAR-RH (LTD ORN) 1
45 PLATESKID-ORN W/CLR-LH W/DECAL Orange (inc. 45-52) 1
46 PLATESKID-ORN W/CLR-LH W/FOAM Orange (inc. 46-49) 1
47 FOAMSKID PLATE-FRT-LH 1
48 FOAMSKID PLATE-MIDDLE-LH 1
49 FOAMSKID PLATE-REAR-LH 1
50 RETAINERTAB-SIDE PANEL 1
51 DECALSKID PLATE-UPPER-LH (LTD ORN) 1
52 DECALSKID PLATE-LOWER-LH (LTD ORN) 1
53 DECALSKID PLATE-REAR-LH (LTD ORN) 1
54 CLIP RECEPTACLE-1/4 TURN STUD 2
55 PINRETAINER-BODY PLASTIC (2 per pack) 2
56 SCREWSELF TAP-TXSTRH tahos_10-12X5/8 TP A BL (5 per pack) 8
57 PLATEEXHAUST OUTLET 1
58 SEALEXHAUT OUTLET-2 STRK 1
59 RIVETBLIND-LF SS68 BLACK (20 per pack) 6
60 PANELFILLER-RH-BLK 1
61 SHIELDHEAT-ECU 1
62 SCREWCAP-HFH M6X1.0X20 CL8.8 Z&Y (4 per pack) 2
63 NUTSPEED M6 X 1.0 U-TYPE (5 per pack) 2
64 SCREWSELF TAP-TSTRH tahos_10-12X3/4 TP A BLK (5 per pack) 2
65 PANELFILLER W/FOIL-LH (inc. 54) 1
66 FOILPROTECTIVE-FILLER PANEL-LH 1
67 RETAINERPUSHNUT-3/16" STUD (4 per pack) 1
68 SCREW1" RND KNOB-M5X0.8X20mm LG (4 per pack) 1
69 DEFLECTORAIR 1
70 RETAINERAIR DEFLECTOR 1
