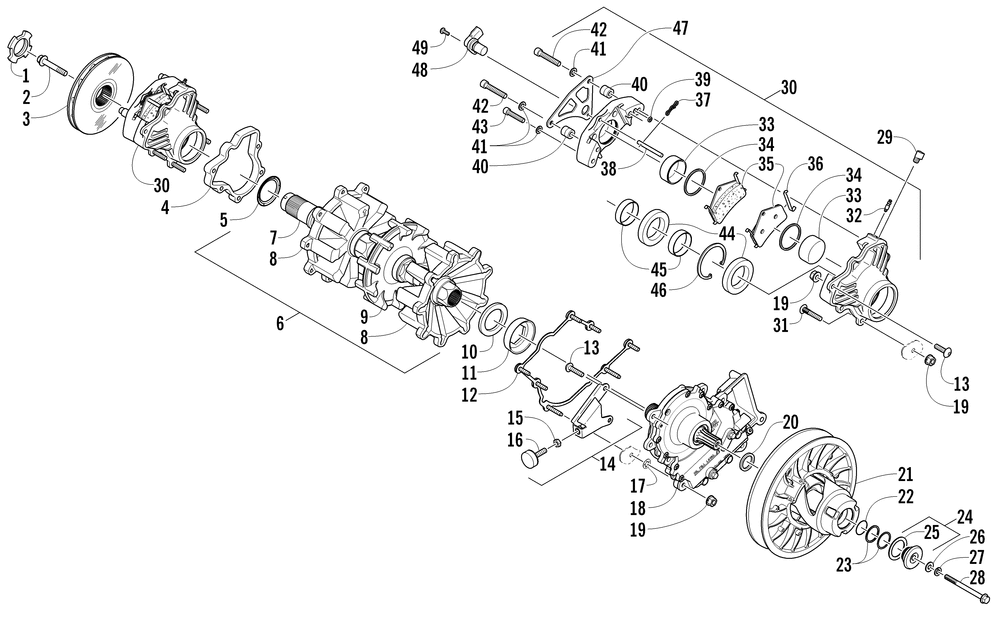

DRIVE TRAIN SHAFT AND BRAKE ASSEMBLIES

Arctic Cat BEARCAT 570 XT BLUE BEARCAT 570 XT BLUE DRIVE TRAIN SHAFT AND BRAKE ASSEMBLIES

№	Наименование	Кол-во
1	NUTRETAINING-SHAFT	1
2	SCREWCAP-HFH-7/16-14X1 3/4 GR8 W/2353	1
3	BRAKEDISC-ACT DRIVE	1
4	SPACERBRAKE CALIPER-ACT DRIVE	1
5	SHIELDBEARING-CALIPER	1
6	DRIVETRACK-2.86P-XT ASSY (inc. 7-9)	1
7	SHAFT DRIVE-W/RETAINER-ASSY	1
8	SPRKTDRIVE-9T-2.86P EXV (R/B 2602-912)	2
9	SPROCKETDRIVE-10T-45MM HEX	1
10	SPACERSEAL-SLINGER-0.400"	1
11	SEALSLINGER-TRACK SHAFT	1
12	PLATEMTG-REVERSE ACT DRIVE-PTD BLK	1
13	SCREWMACH-TSTRH M8X1.25X30 Z&Y (3 per pack)	2
14	BRKT TORQUE BUMPER-MFG ASSY-08 (inc. 11-12)	1
15	NUTJAM 3/8-24(RIGHT HAND) (5 per pack)	1
16	BUMPER TORQUE-ENGINE ('01 ZL 800)	1
17	RETAINERPUSHNUT-5/16" (6 per pack)	7
18	GEARCASEDRIVE-FWD "F" 54/66 5P ASSY	1
19	NUTHEX FLG-NYL LOCK M8X1.25 CL8 Z&Y	13
20	WASHERFLAT-1.188 X 1.730 X .060 (5 per pack)	0
20	WASHERFLAT-1.188 X 1.730 X .030 (5 per pack)	0
21	CLUTCHDRIVEN-10.4 (46/40 (N) ORN)	1
22	O-RINGADJUSTER SHEAVE (2-121)	1
23	WASHER DRIVEN .090 THICK	0
23	WASHER DRIVEN .030 THICK (2 per pack)	0
23	WASHER DRIVEN .060 THICK	0
24	KITADJUSTER-SHEAVE W/WASHER (inc. 18)	1
25	WASHERTHRUST-DRIVEN ADJUSTER	1
26	WASHERFLAT-.875X.400X.156 Z&Y (2 per pack)	1
27	WASHERSPR LOCK-3/8 .377X.680X.094 Z&Y (20 per pack)	1
28	SCREWCAP-HFH 3/8-16X4.50 GR8-VENTED	1
29	FITTINGINLET-90 DEG 3/8-24	1
30	CALIPERBRAKE-METRIC-S/P ASSY (inc. 30-45)	1
31	BOLT CARRIAGE-RIBBED-M8X1.25X30	4
32	FITTINGBLEED SCREW INSERT-1/4-28	1
33	PISTONSTAINLESS-1.93X.79	2
34	O-RINGSQUARE-PISTON	2
35	KITBRAKE PAD (inc. 26-27)	2
36	CLIP ANTI-RATTLE	4
37	CLIPRETAINING-HAIRPIN	1
38	PINPAD RETAINER	1
39	O-RINGBRAKE HOUSING	1
40	SPACERSPEEDO BRKT	2
41	WASHER-HYD BRAKE	4
42	BOLTSHCS 5/16-18 UNC-2A 3.00 LG (2 per pack)	2
43	BOLTSHCS 5/16-18 UNC-2A 2.00 LG	2
44	BEARING45MM X 68MM X 12MM	2
45	SLEEVESHAFT	2
46	RINGRETAINING-2.98	1
47	PLATEMOUNTING-SPEED SENSOR	1
48	SENSORSPEEDO- MX	1
49	SCREWMACH-TSPNH M6X1.0X16 CL8.8 W/2353 (4 per pack)	1
