SKID PLATE AND SIDE PANEL ASSEMBLY

Корзина пуста
Arctic Cat BEARCAT Z1 XT BLUE BEARCAT Z1 XT BLUE SKID PLATE AND SIDE PANEL ASSEMBLY

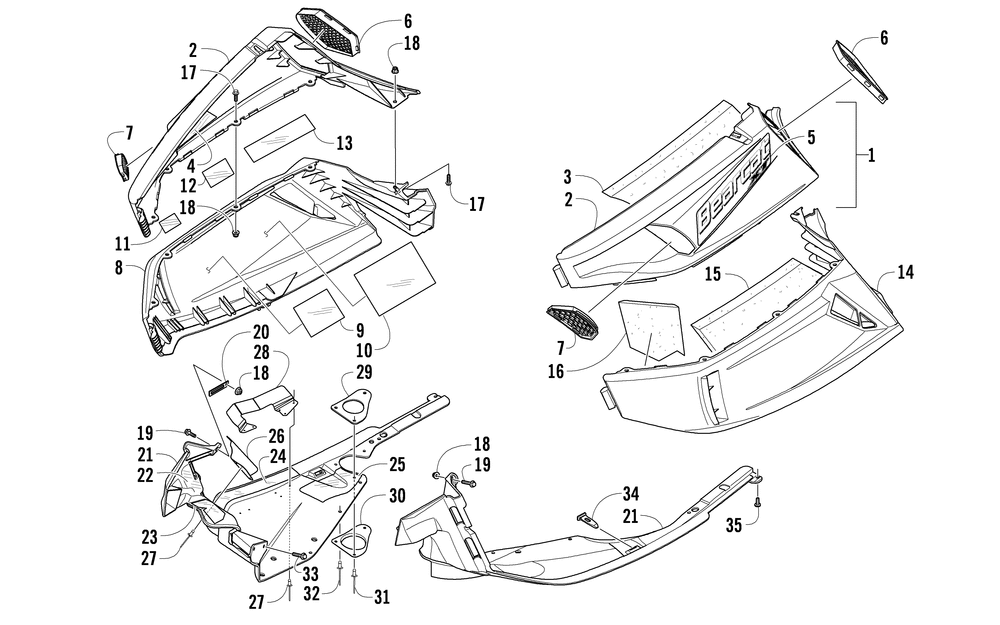

SKID PLATE AND SIDE PANEL ASSEMBLY
№ Наименование Примечание Кол-во
1 PANELSIDE-UPPER RH W/DECALS-BLU/CLR Blue (inc. 2 and 4-5) 1
1 PANELSIDE-UPPER LH W/DECALS-BLU/CLR Blue (inc. 2-3 and 5) 1
2 PANELSIDE-UPR-W/O DECALS RH-BLU/CLR Blue (inc. 4) 1
2 PANELSIDE-UPR-LH-W/O DECALS-BLU/CLR Blue (inc. 3) 1
3 FOAMUPR SIDE PANEL-LH 1
4 KITUPDATE-PROT FOIL 1
5 DECALUPR PANEL-CENTER RH "BC XT" 1
5 DECALUPR PANEL-CENTER LH "BC XT" 1
6 VENTUPR PANEL-REAR RH-MOLD BLK 1
6 VENTUPR PANEL-REAR LH-MOLD BLK 1
7 VENTUPR PANEL-RH HONEYCOMB-MOLD BLK 1
7 VENTUPR PANEL-LH HONEYCOMB-MOLD BLK 1
8 PANELSIDE-LWR RH W/O DECALS-BLK (inc. 9-10) 1
9 FOILPROTECTIVE-RH SIDE PANEL-LWR FRT 1
10 FOILPROTECTIVE-RH SIDE PANEL-LWR REAR 1
11 FOILPROTECTIVE-127X191 1
12 FOILPROTECTIVE-102X152 1
13 FOILPROTECTIVE-127X343 1
14 PANELSIDE-LWR LH W/O DECALS-BLK (inc. 10-11) 1
15 FOAMLWR SIDE PANEL- REAR LH (19mm THK) 1
16 FOAMLWR SIDE PANEL-FRT LH(19mm THK) 1
17 SCREWCAP-HFH M6X1.0X20 CL8.8 Z&Y (4 per pack) 10
18 NUTHEX FLG-NYL LOCK M6X1.0 CL8 Z&Y (5 per pack) 12
19 SCREWCAP-HFH M6X1.0X35 CL8.8 Z&Y (5 per pack) 2
20 CLAMPWIRE - 76.14MM LG W/6.25 HOLE (2 per pack) 1
21 PLATESKID-BLK RH-ROUTED 1
21 PLATE SKID-LH-BLK-ROUTED-F/C 1
22 FOILRH SKID PLATE-HINGE 1
23 FOILPROTECTIVE-RH SKID PLATE-UPR FRT 1
24 FOILPROTECTIVE-RH SKID PLATE-OUTER 1
25 FOILPROTECTIVE-RH SKID PLATE-CENTER 1
26 SHIELDHEAT-HINGE 1
27 RIVETBLIND-LF SS54 BLACK (10 per pack) 8
28 SHIELDHEAT-SKID PLATE-RH 1
29 SEALEXHAUST-OUTLET-4 STRK 1
30 SHIELDHEAT-EXHAUST OUTLET-PTD 1
31 RIVET BULBEX-BF01-0625 (10 per pack) 3
32 RIVET BLIND-LF SS66 BLACK (10 per pack) 7
33 SCREWSELF TAP-HWH M6 X 12 Z (TRI LOB) 4
34 STRAPHOLDDOWN-STORAGE BOX LID 2
35 SCREWTAPTITE-TSPNH M6 X 1 X 16 Z&B (10 per pack) 2
