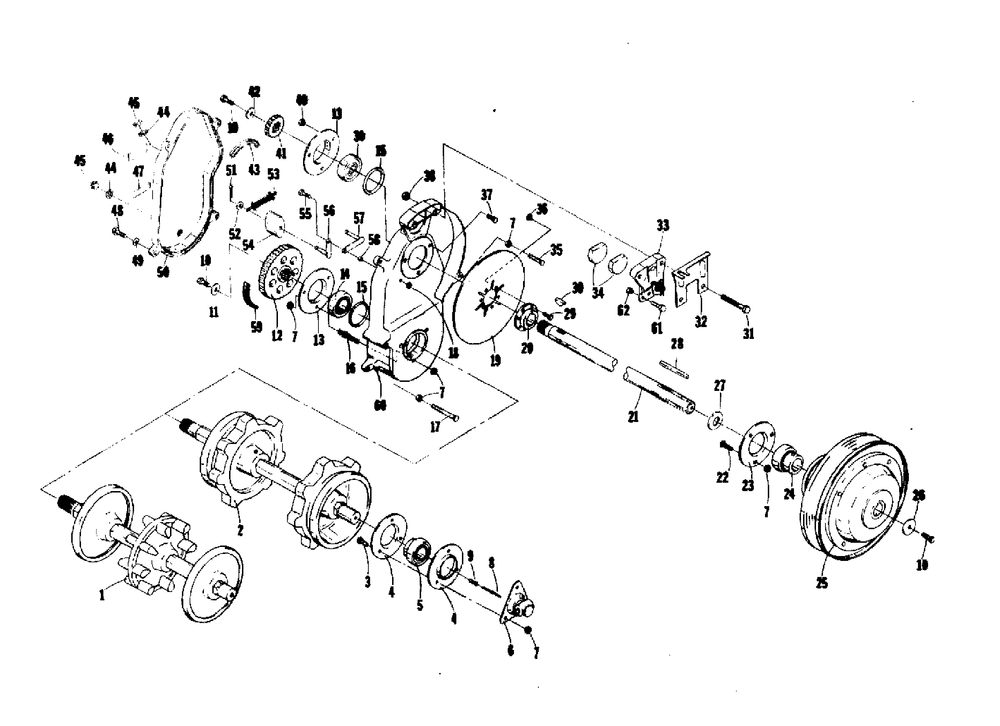

Arctic Cat EL TIGRE 440 EL TIGRE 440 DRIVE TRAIN
DRIVE TRAIN
№ Наименование Примечание Кол-во
3 BOLTCRG 5/16-18X.75 GR1 Z&Y (5 per pack) 3
4 PLATEFLANGE-BEARING (TRIANGLE) 2
5 BEARING1.00 W/COLLAR 1
7 NUTHEX LOCK-NYL 5/16-18 Z&Y (20 per pack) 14
8 CABLEDRIVE ADAPTOR 1
9 BUSHINGDRIVE-SPEEDOMETER (5 per pack) 1
11 CARRIAGE SPRING WASHER (2 per pack) 1
12 SPROCKET39T-3/8 X.520 X 1.00 1
14 KITREPLACEMENT BEARING-1" 1
15 SEALO RING .093 (2 per pack) 2
16 STUDDROPCASE 3
17 BOLTCRG 5/16-18X2.75 GR1 Z&Y (5 per pack) 1
18 NUTHEX LOCK-NYL 1/4-20 Z&Y (20 per pack) 1
19 DISCBRAKE 1
20 HUBBRAKE 1
21 SHAFTDRIVEN-PTD BLK 1
22 BOLTCRG 5/16-18X1.0 GR1 Z&Y (5 per pack) 3
24 BEARING1 W/LOCK(LARGE RACE) 1
26 WSHRFLAT 21/64X1-1/2X (10 per pack) 1
27 WASHERFLAT 1IDX1-1/2X14GA (10 per pack) 0
28 KEY 3/16 X 1/4 X 3 (5 per pack) 1
29 SCREW CAP-HSH 10-32X.625 Z&Y (5 per pack) 6
30 KEYWOODRUFF-HARDENED 1
34 PUCKBRAKE (2 per pack) 2
35 BOLTCRG 5/16-18X1.75 GR1 Z&Y (5 per pack) 1
36 NUTHEX LOCK-NYL 10-32 Z&Y (5 per pack) 6
37 BOLTRIB NECK-RDH 5/16-18X.625 Z&Y (5 per pack) 3
38 NUTHEX LOCK-NYL 3/8-24 Z&Y (5 per pack) 2
39 KITREPLACEMENT BEARING-7/8" 1
40 NUTHEX THIN LOCK-NYL 5/16-18 Z&Y (10 per pack) 3
41 SPROCKET-22T 3/8 X .520 7/ 1
42 WSHR.343X1 1/8X.120TH Z&Y (5 per pack) 1
43 SEALDROPCASE COVER (2 per pack) 1
44 WASHERFIBER-1/2X13/16X.030 (10 per pack) 2
45 PLUG DRAIN 2
49 WASHERLOCK-5/16 EXT TOOTH TYP A Z&Y (10 per pack) 4
50 COVERDROPCASE 1
51 PIN COTTER - 1/16 X 5/8 (5 per pack) 2
54 PADTIGHTENER (2 per pack) 2
55 SCREWCAP-HH 1/4-20 X1.00 G5 Z&Y (10 per pack) 1
56 PIN & LINK ASS'YTIGHTENER 1
59 CHAIN72 PITCH-SILENT 1
61 SCREWCAP-HH 1/4-28 X.75 G2 Z&Y (10 per pack) 1
